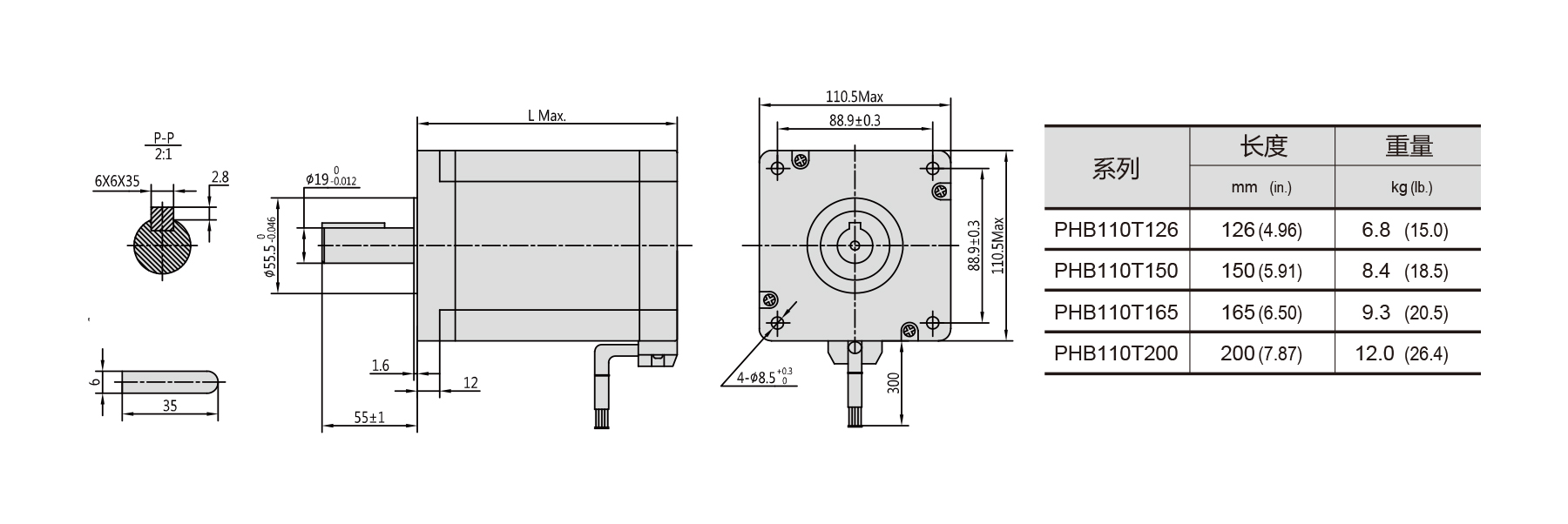

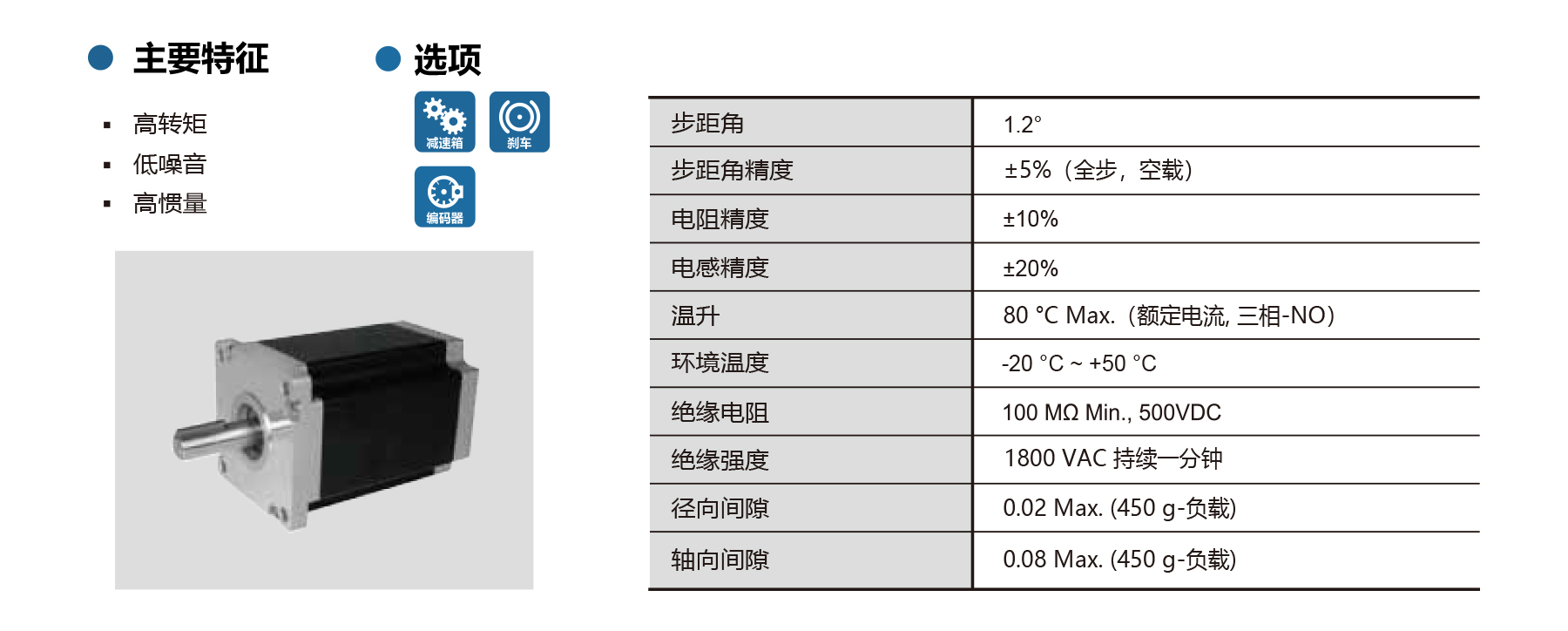

The PHB110T Series NEMA 42 3-phase stepper motors feature a precise 1.2° step angle with ±5% full-step accuracy, offering high torque and smooth, low-noise operation. Designed with high inertia and optional brake, encoder and gearbox, these motors maintain stability under demanding loads. Rated for continuous operation within -20°C to +50°C and a max temperature rise of 80°C, they provide excellent reliability. Insulation resistance ≥100 MΩ, dielectric strength 1800 VAC/1 min, and minimal shaft radial/axial play (0.02/0.08 mm) ensure long-term performance. Available in lengths from 110 mm to 200 mm, PHB110T motors are ideal for CNC machinery, automation equipment, and other precision motion control applications requiring robust 3-phase stepper performance.
