NEMA 17・1.8°・PHH42S

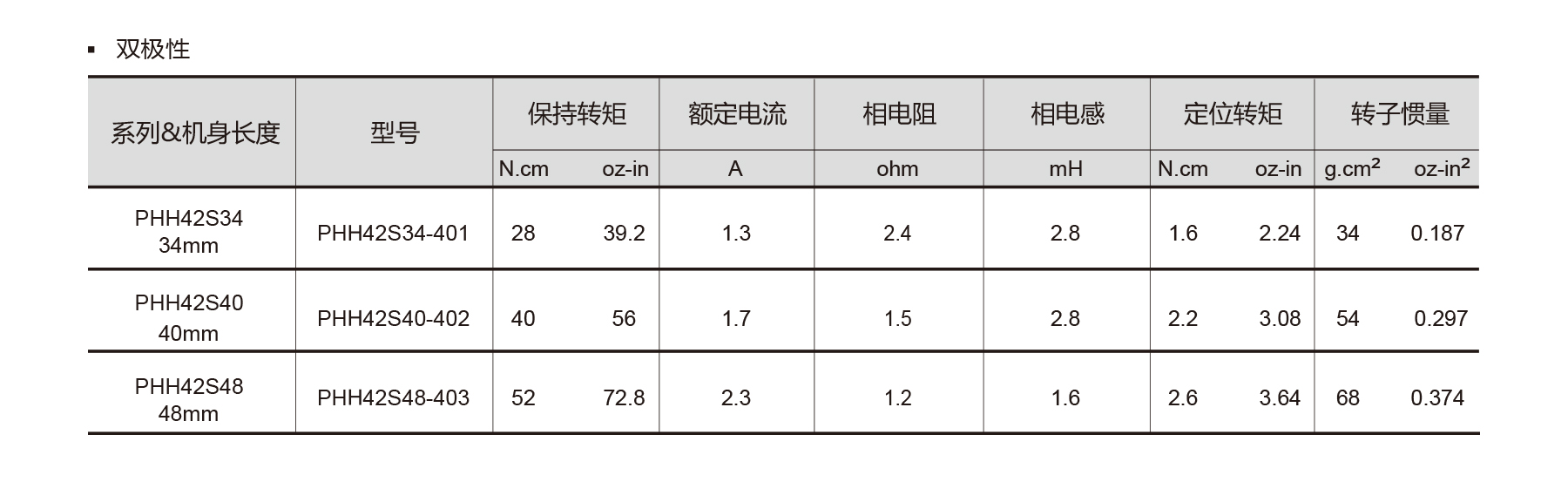

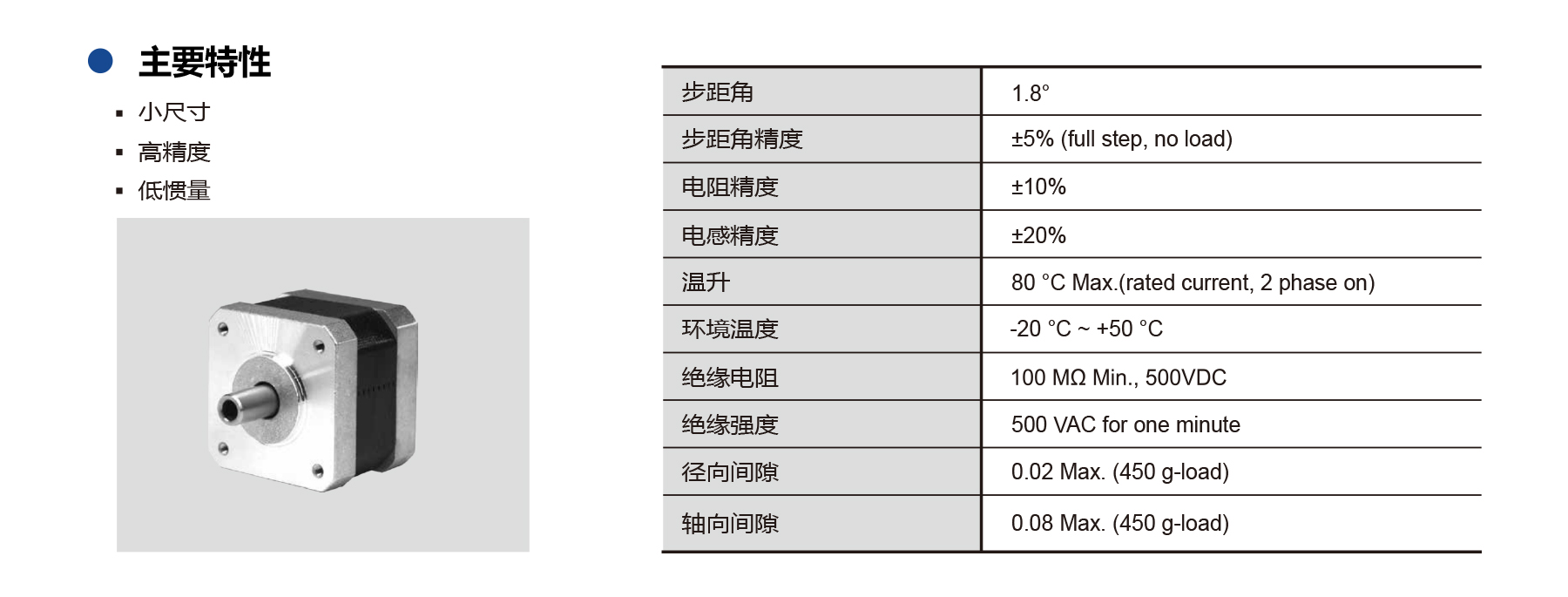

The PHH42S series NEMA 17 hollow shaft stepper motors deliver precise 1.8° stepping with high accuracy and low inertia in a compact design. Featuring ±5% step accuracy, stable resistance and inductance, and reliable performance across -20° to +50°C, they are ideal for automation, and precise motion control applications.
Datasheet
