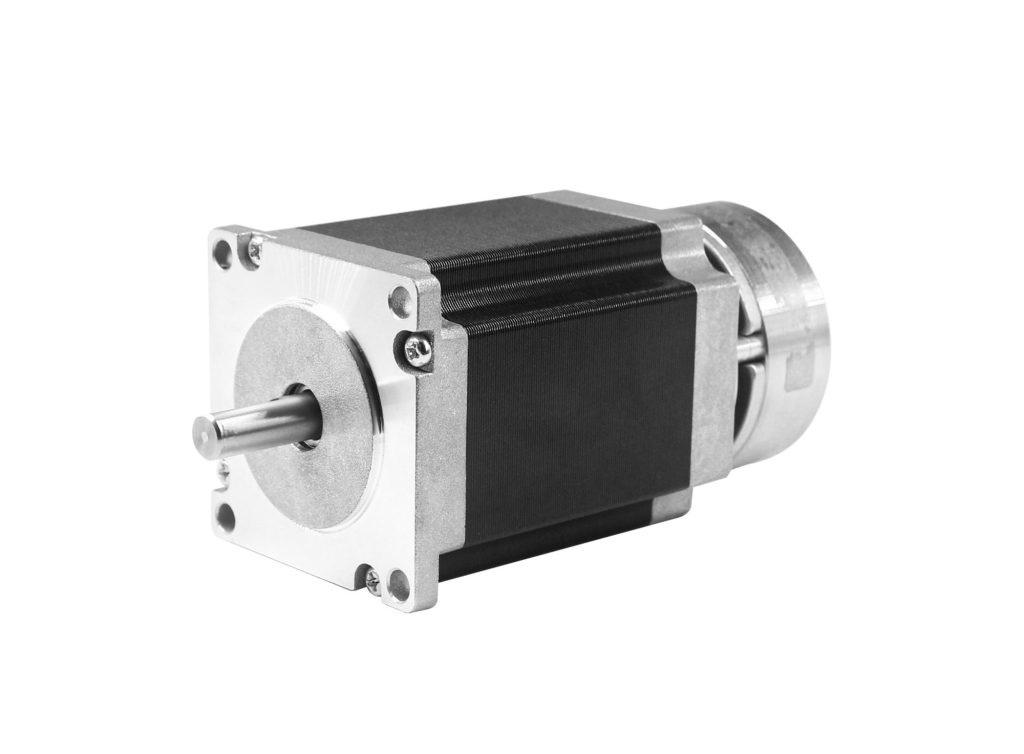

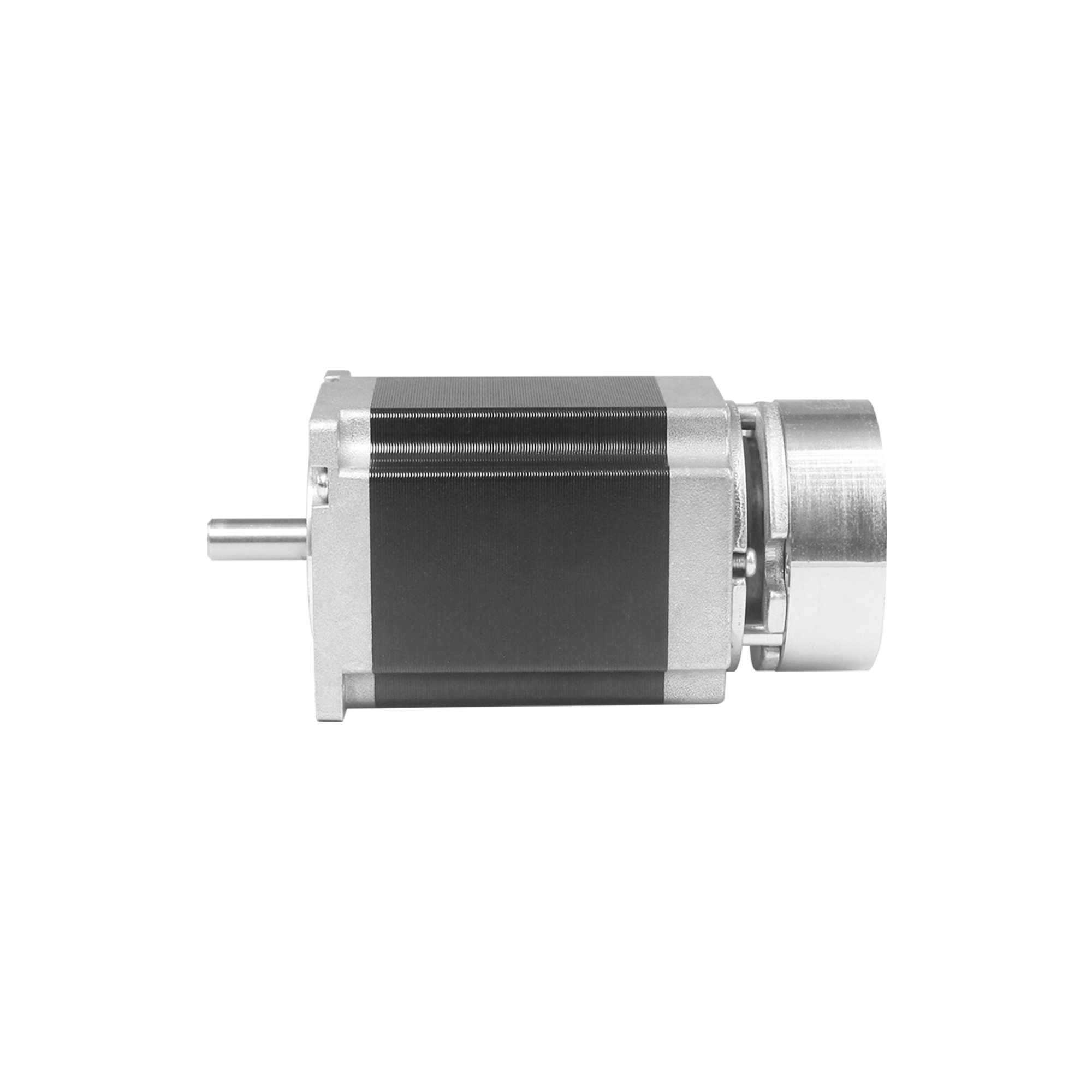

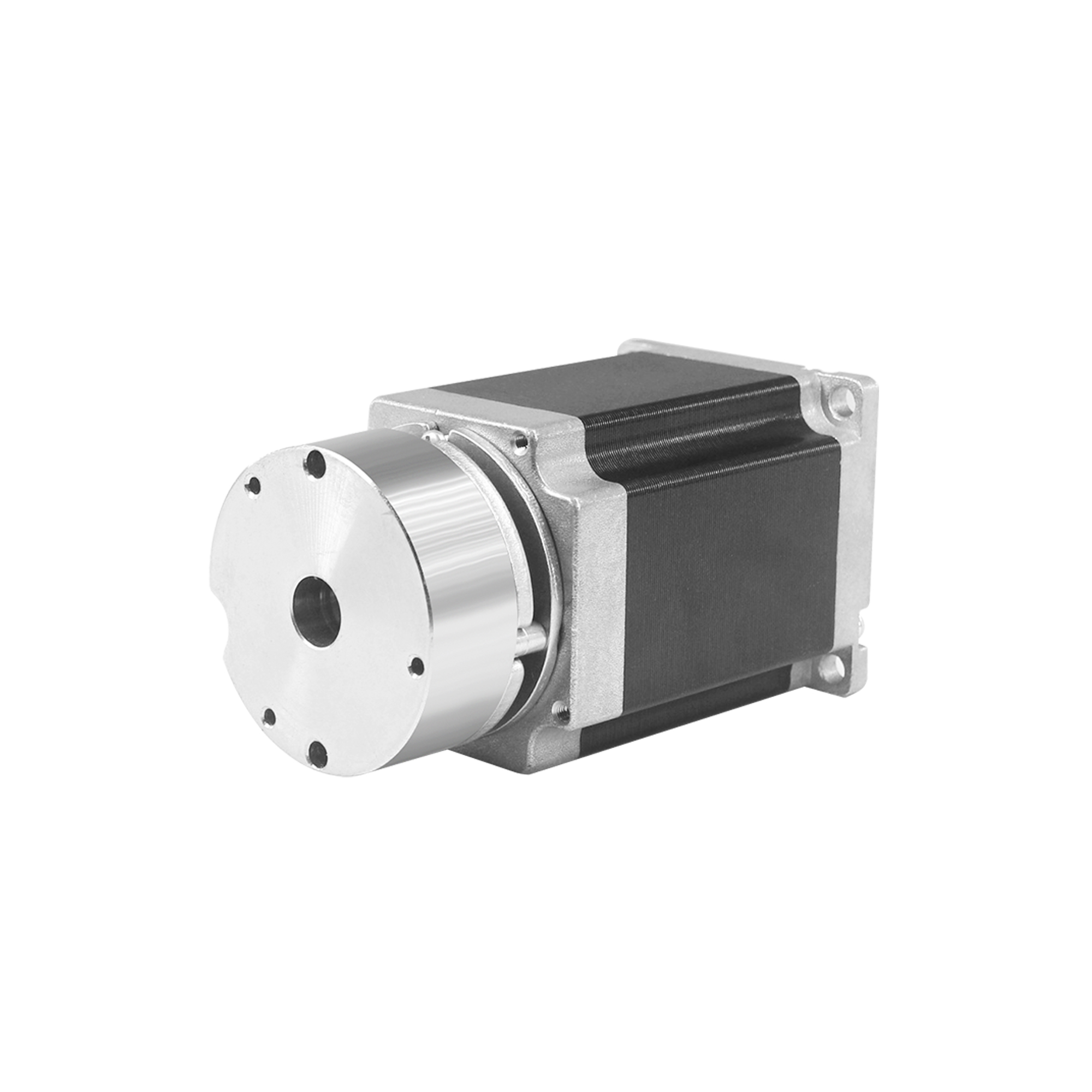

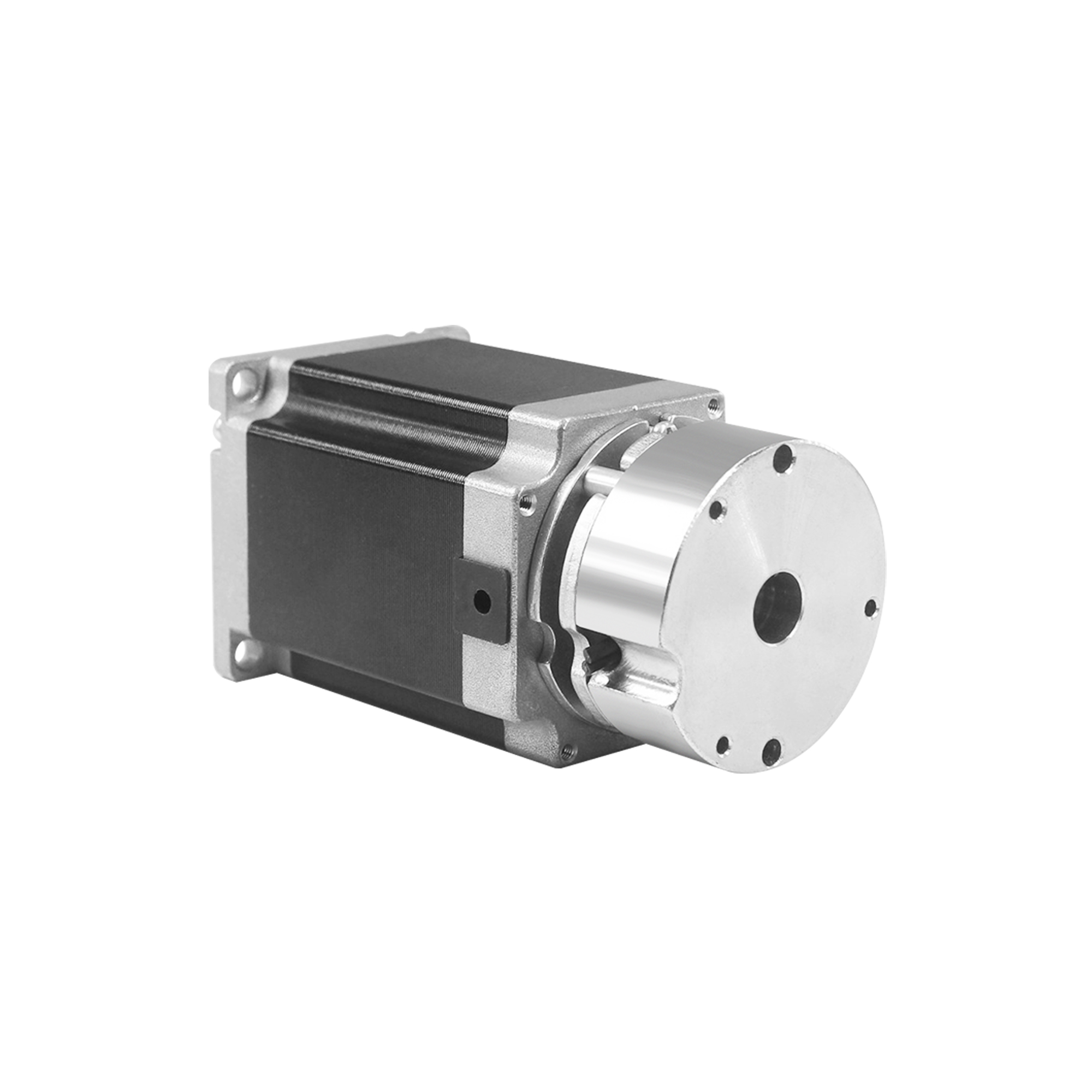

NEMA 24・1.8°・PHBR60S

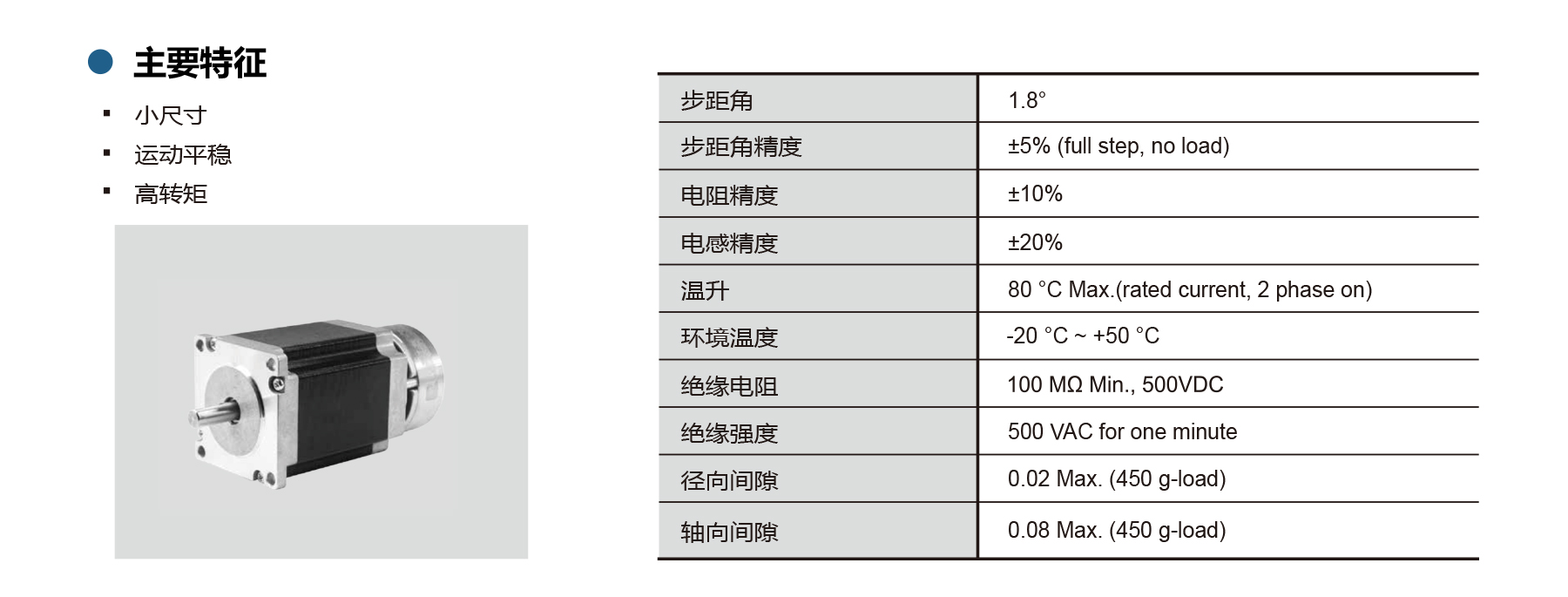

The PHBR60S NEMA24 stepper motor with brake offers compact design, high torque, and precise 1.8° steps for smooth, reliable motion. With ±5% step accuracy, low inertia, and robust performance from -20°C to 50°C, it’s perfect for automation, and high-speed industrial applications.
Datasheet
