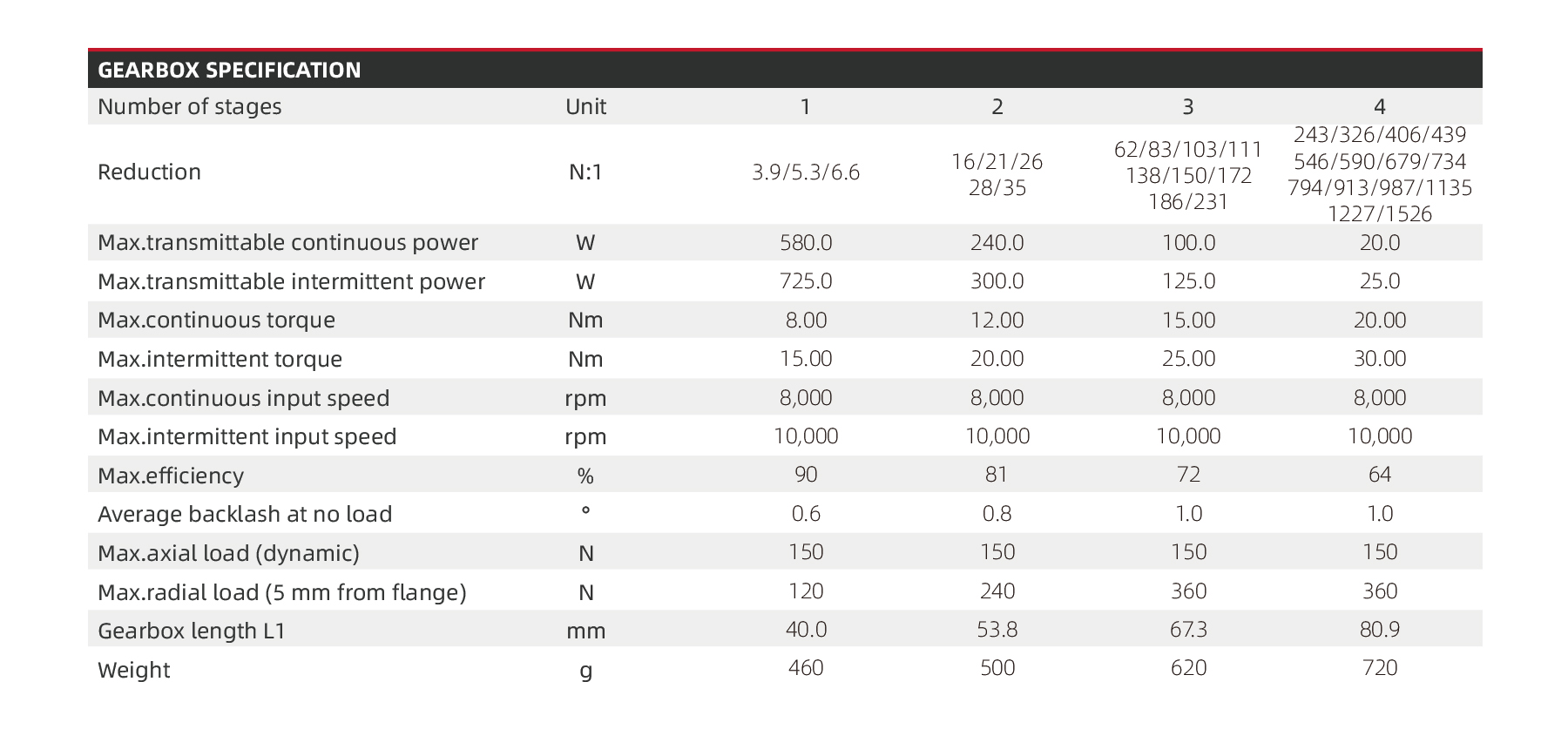

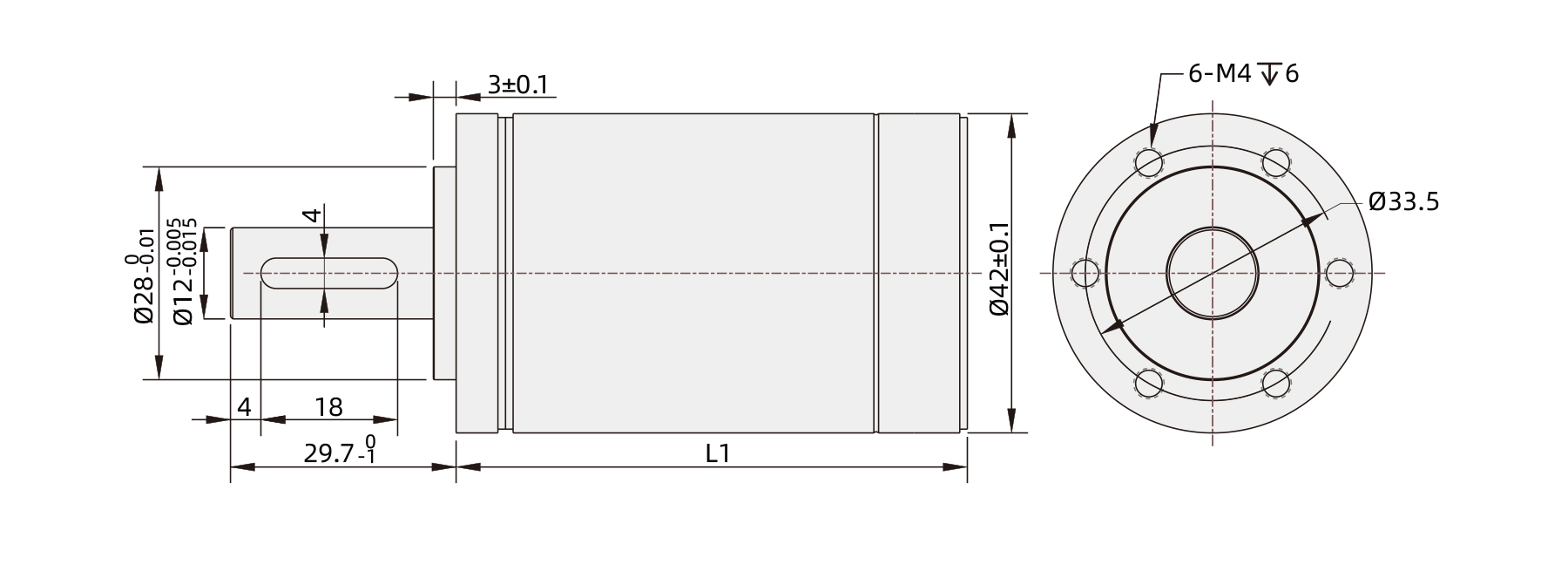

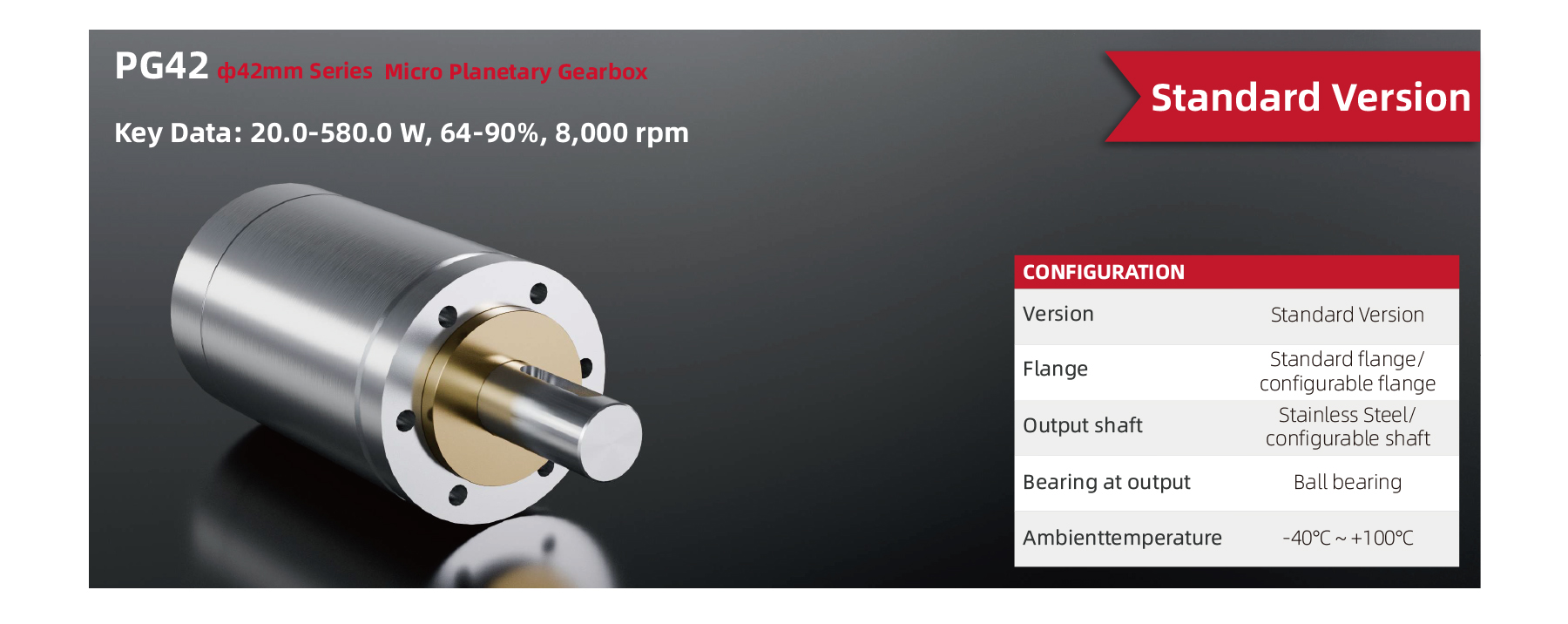

The PG42 Series Micro Planetary Gearbox features a 42mm design with continuous power ranging from 20W to 580W and efficiencies between 64% and 90%. It operates at a max input speed of 8,000 rpm, delivering continuous torque up to 20 Nm and intermittent torque up to 30 Nm. The gearbox supports dynamic axial loads of 150 N and radial loads up to 360 N at 5mm from the flange. Gearbox lengths vary from 40.0 to 80.9 mm, offering a powerful and reliable solution for medium to heavy-duty applications.
