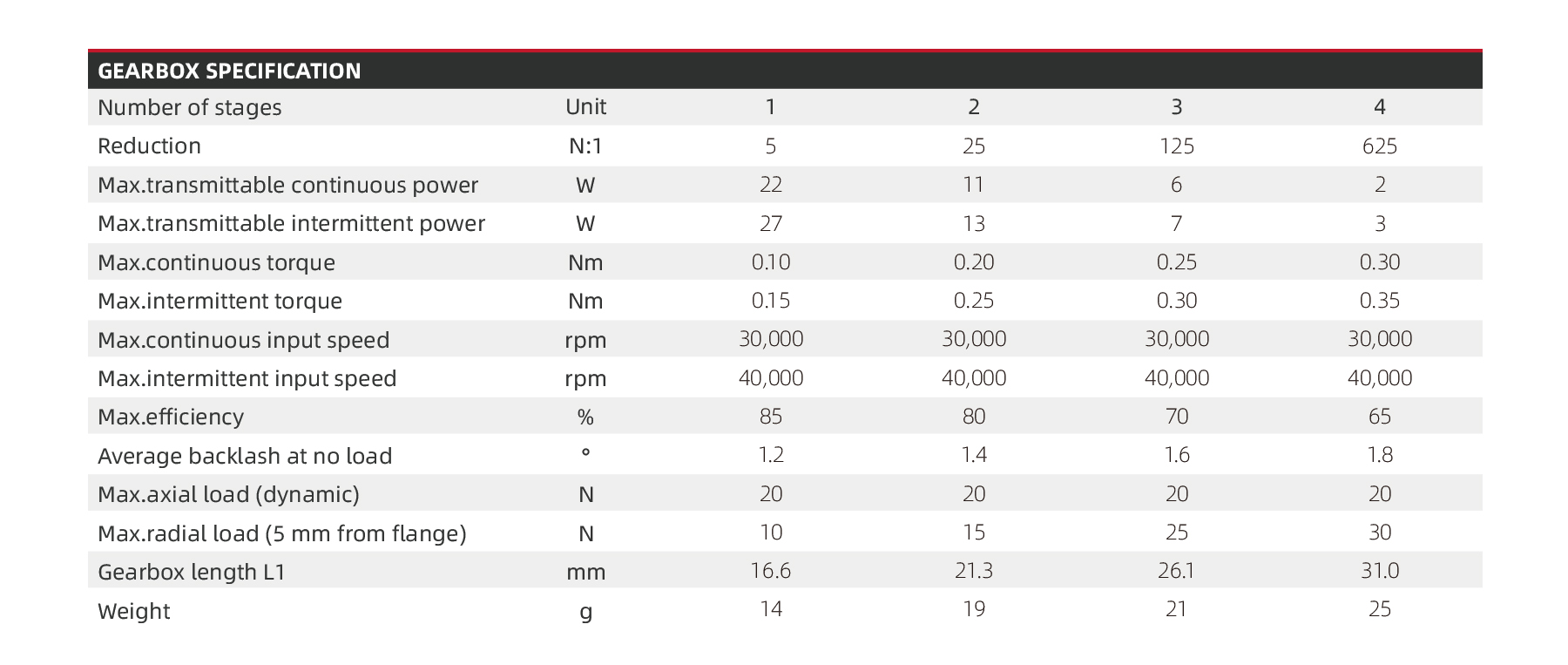

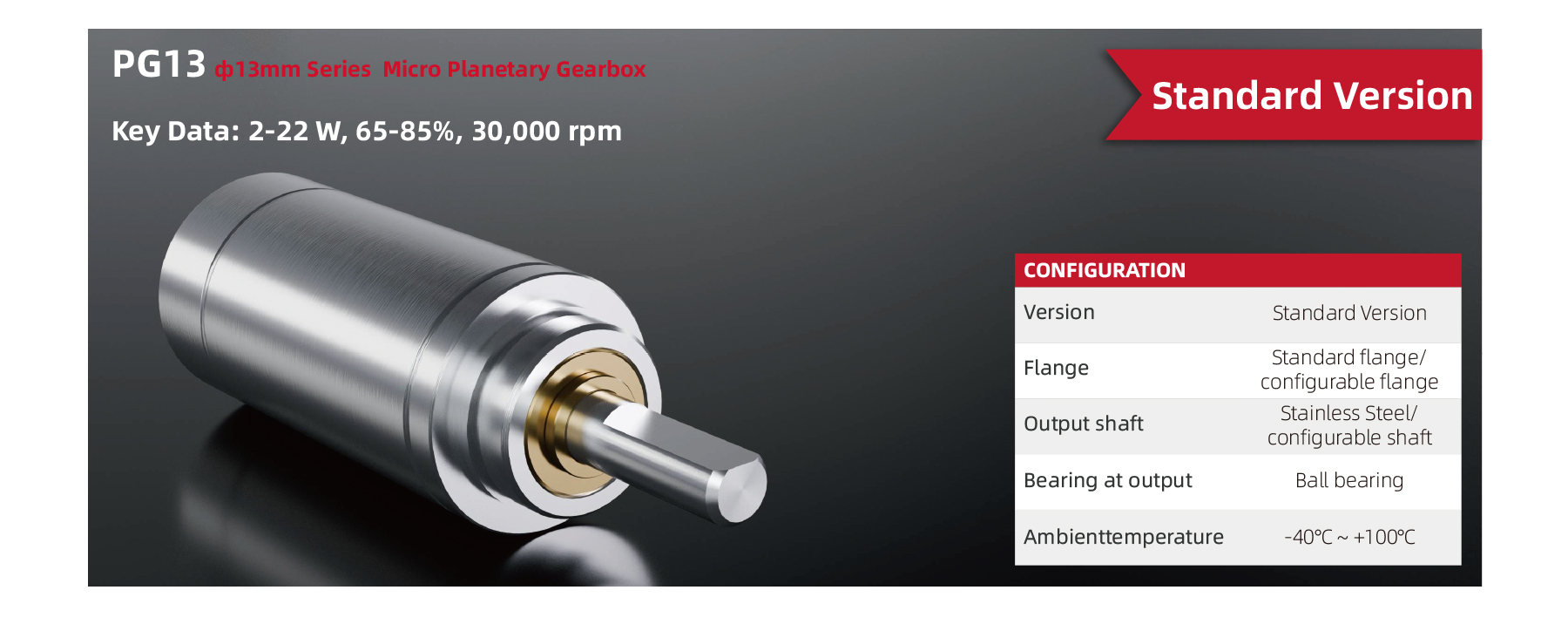

The PG13 13mm Micro Planetary Gearbox offers reduction ratios from 5:1 up to 625:1 across 1 to 4 stages. It delivers continuous torque up to 0.25 Nm with efficiencies reaching 85%, supporting input speeds up to 30,000 rpm and intermittent speeds up to 40,000 rpm. Featuring a stainless steel output shaft, ball bearing, and rated for operation between -40 °C and +100 °C, this gearbox provides a compact, reliable solution for precision motion control.
