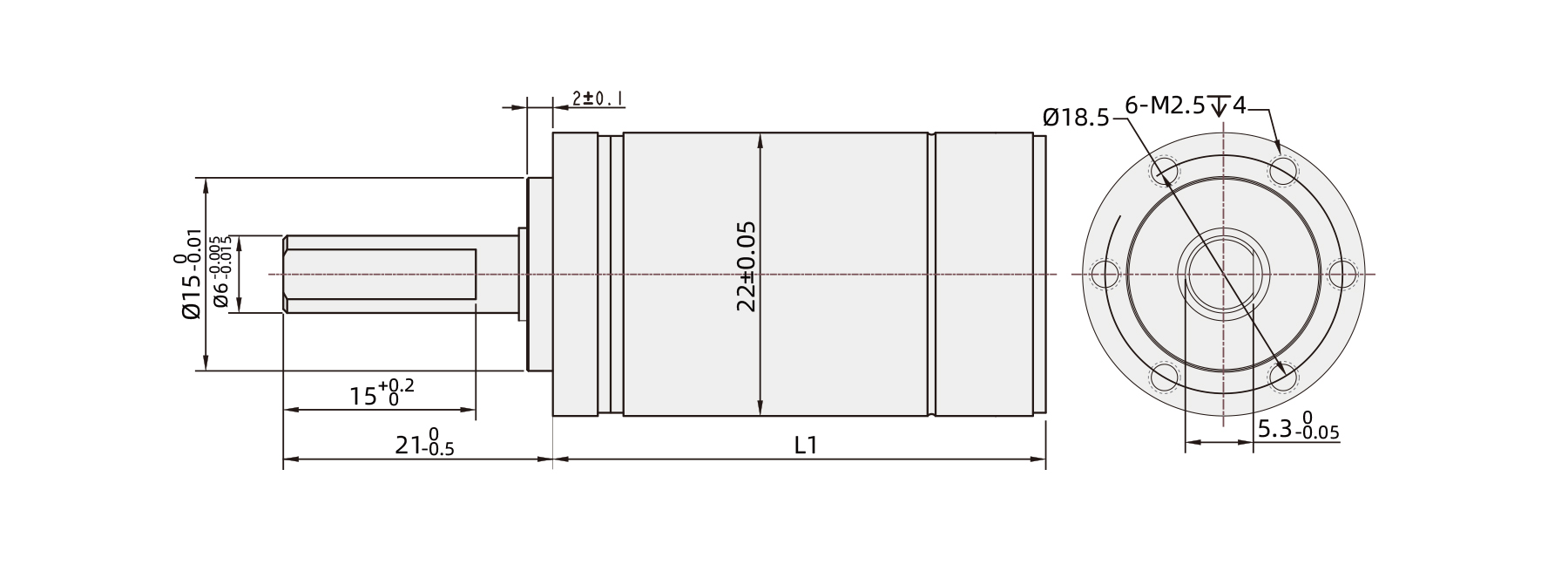

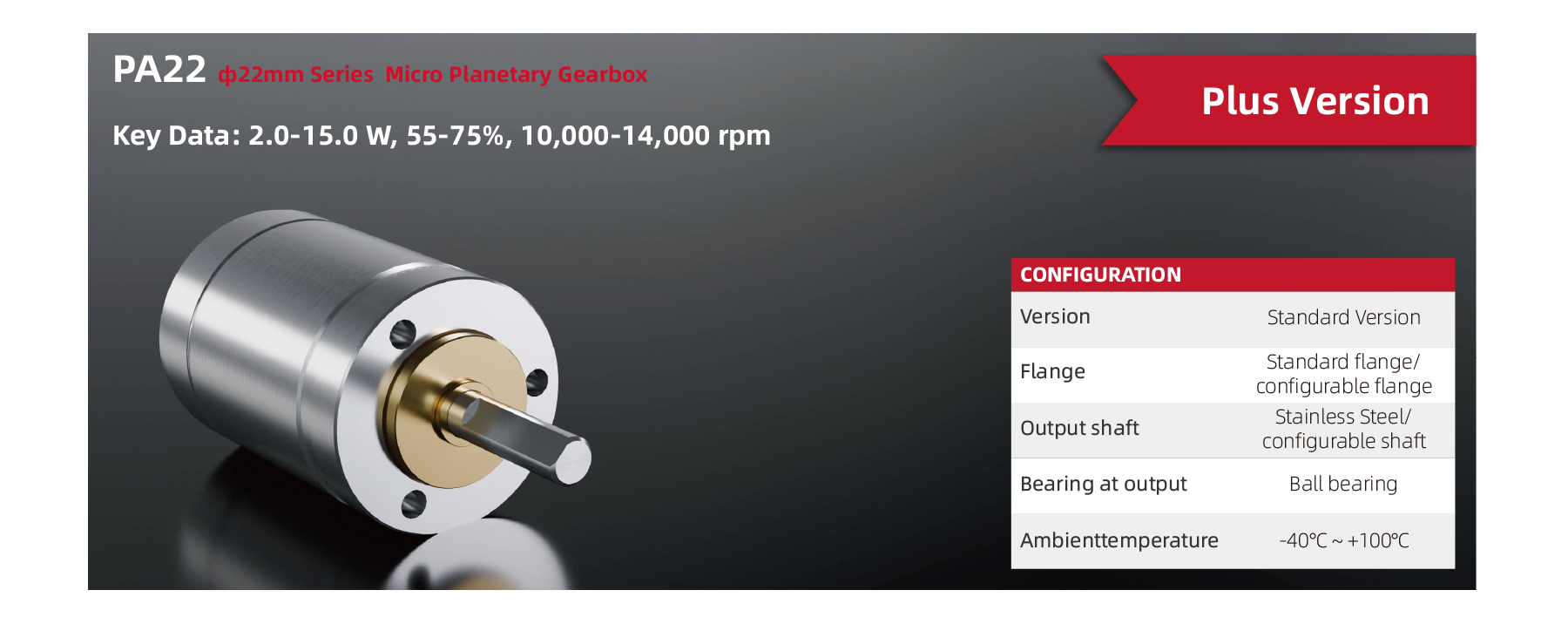

The PA22 22mm Series Micro Planetary Gearbox Plus Version offers continuous power from 2.0 to 15.0W with efficiencies ranging between 55% and 75%, operating at speeds of 10,000 to 14,000 rpm. It features stainless steel output shafts, configurable flanges, and ball bearings for reliable performance. The gearbox supports continuous torque up to 2.00 Nm and intermittent torque up to 2.50 Nm. It handles dynamic axial loads of 40N and radial loads up to 120N (5mm from flange). Compact in size, its length ranges from 31.8 to 45.0 mm, weighing between 51 and 63 grams, suitable for precise, high-performance applications.
