PBLR75RH

PBLR75RH

The PBLR75EH is a 3-phase, 24-pole brushless motor with built-in drive, rated at 48V DC, running at 1190 RPM. It delivers 0.55 N·m rated torque and 1.1 N·m peak torque. With 0.7 kg weight and compact size, it offers high efficiency for industrial applications.

Share This Product:

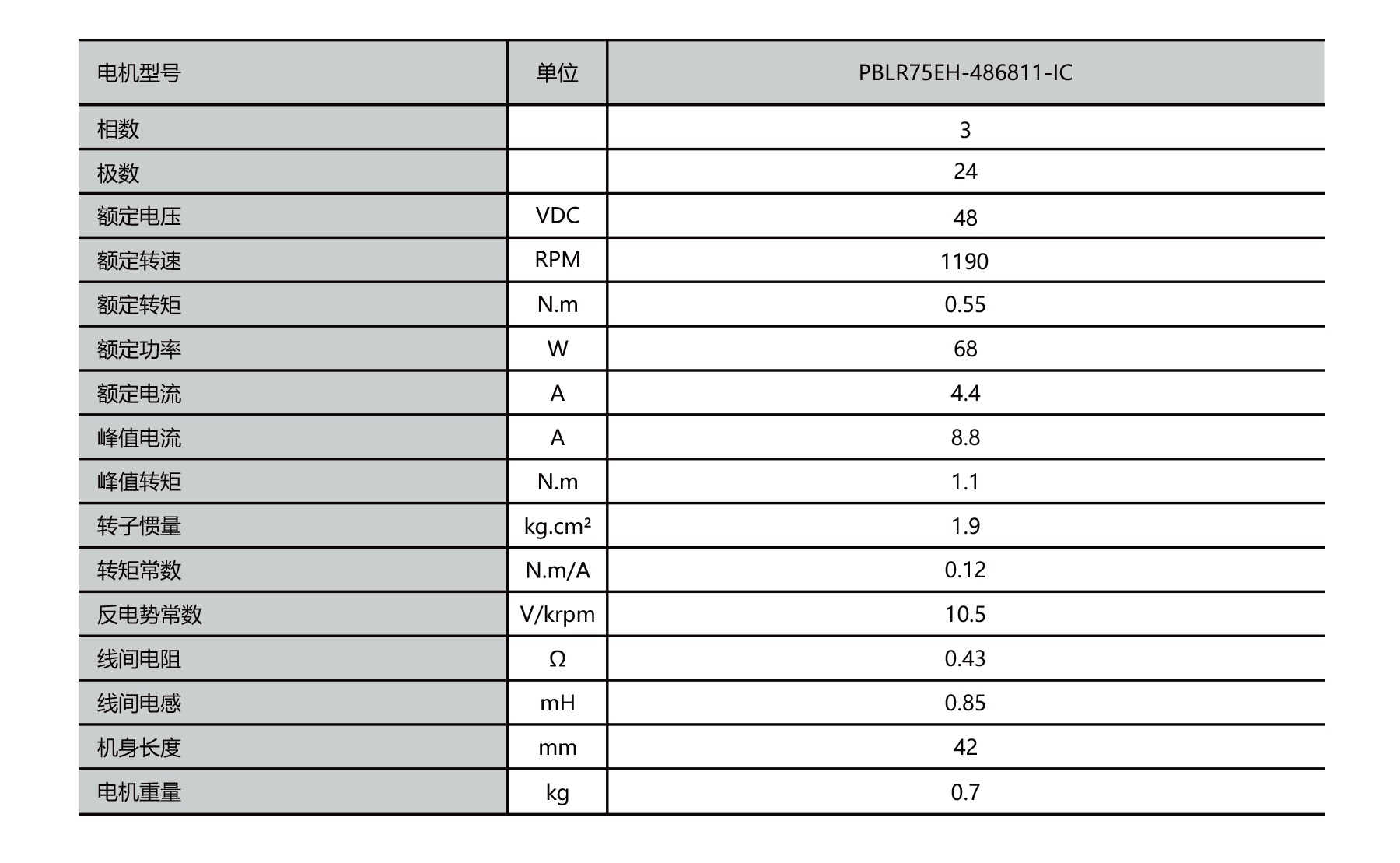

PBLR75RH dia.75mm integrated outrunner brushless dc motor specifications

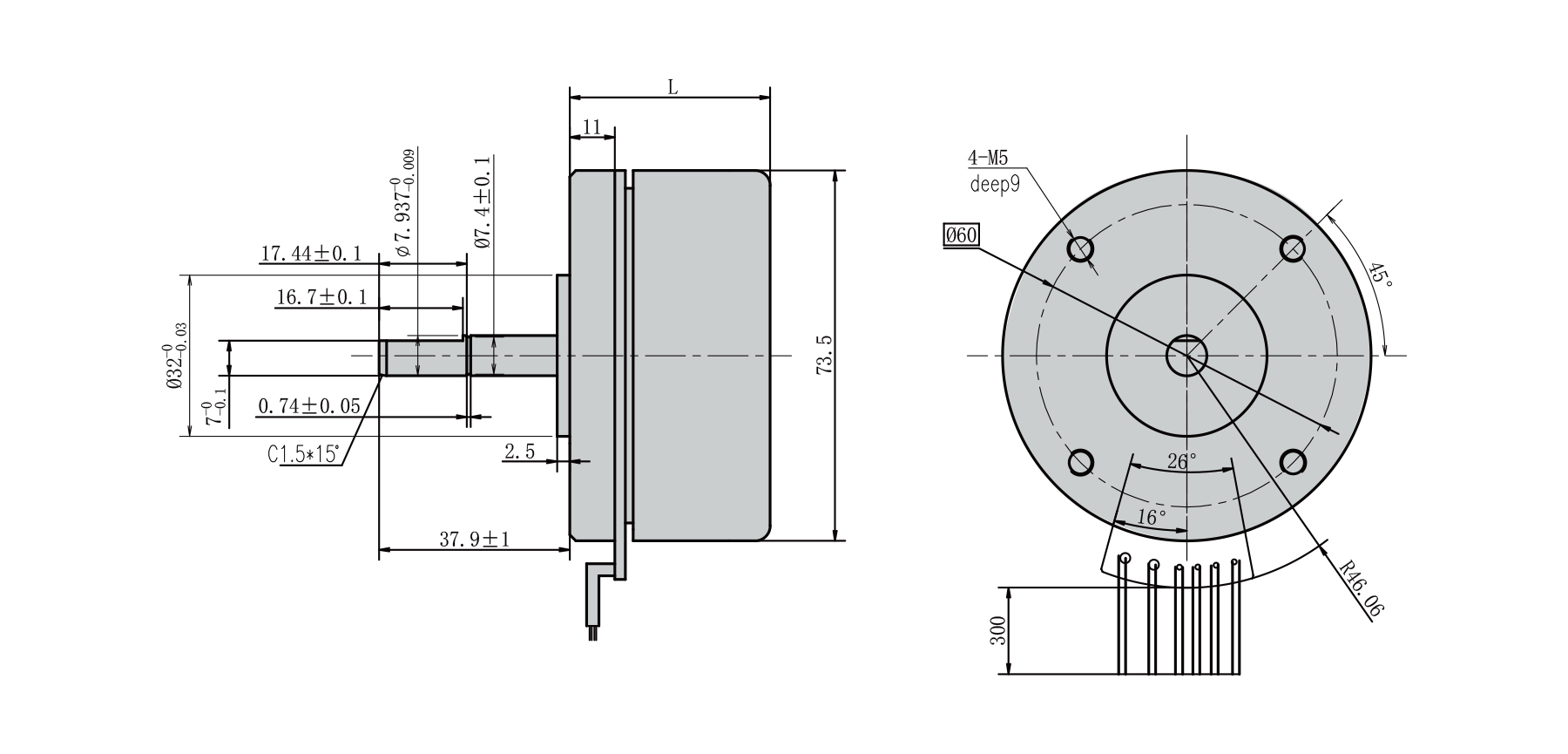

PBLR75RH dia.75mm integrated brushless outrunner motor outline dimensions drawing

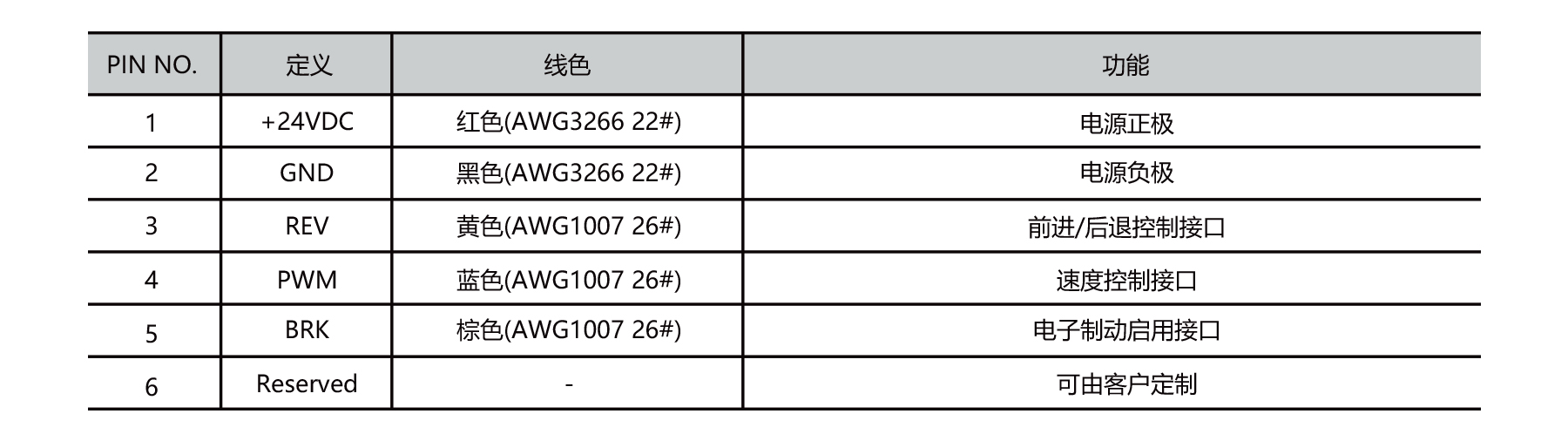

PBLR75RH dia.75mm integrated outrunner bldc motor winding and hall sensor wiring connection

Datasheet
