PBLR72EK

PBLR72EK

The PBLR72EK series are 3-phase, 28-pole hollow shaft outrunner brushless motors rated at 48V DC. Rated speed is 1000 RPM, with torque from 1.0 to 2.0 N·m and peak torque up to 4.0 N·m. Featuring compact size, low inertia, and high efficiency for industrial and automation use.

Share This Product:

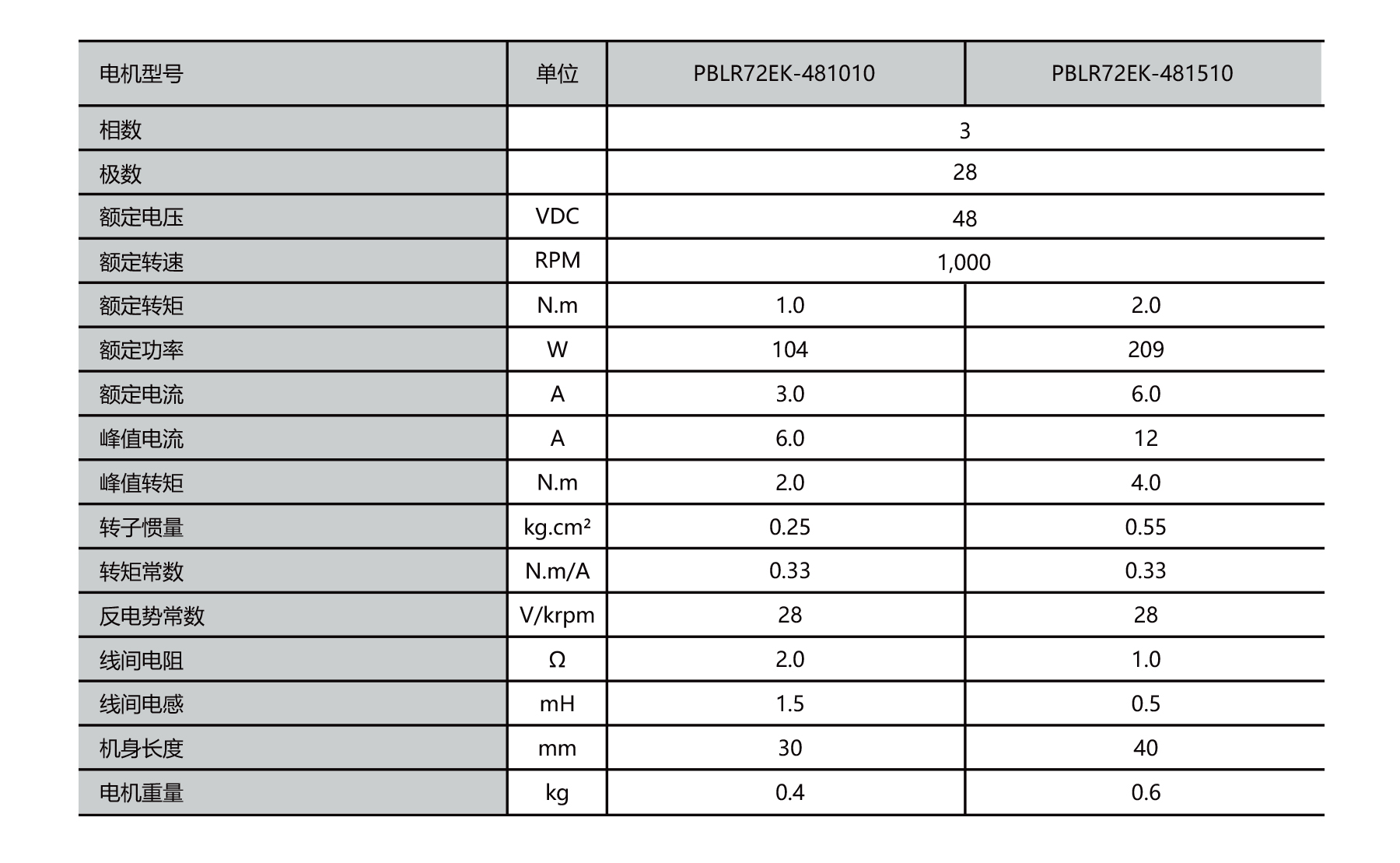

PBLR72EK dia.72mm hollow shaft outrunner brushless dc motor specifications

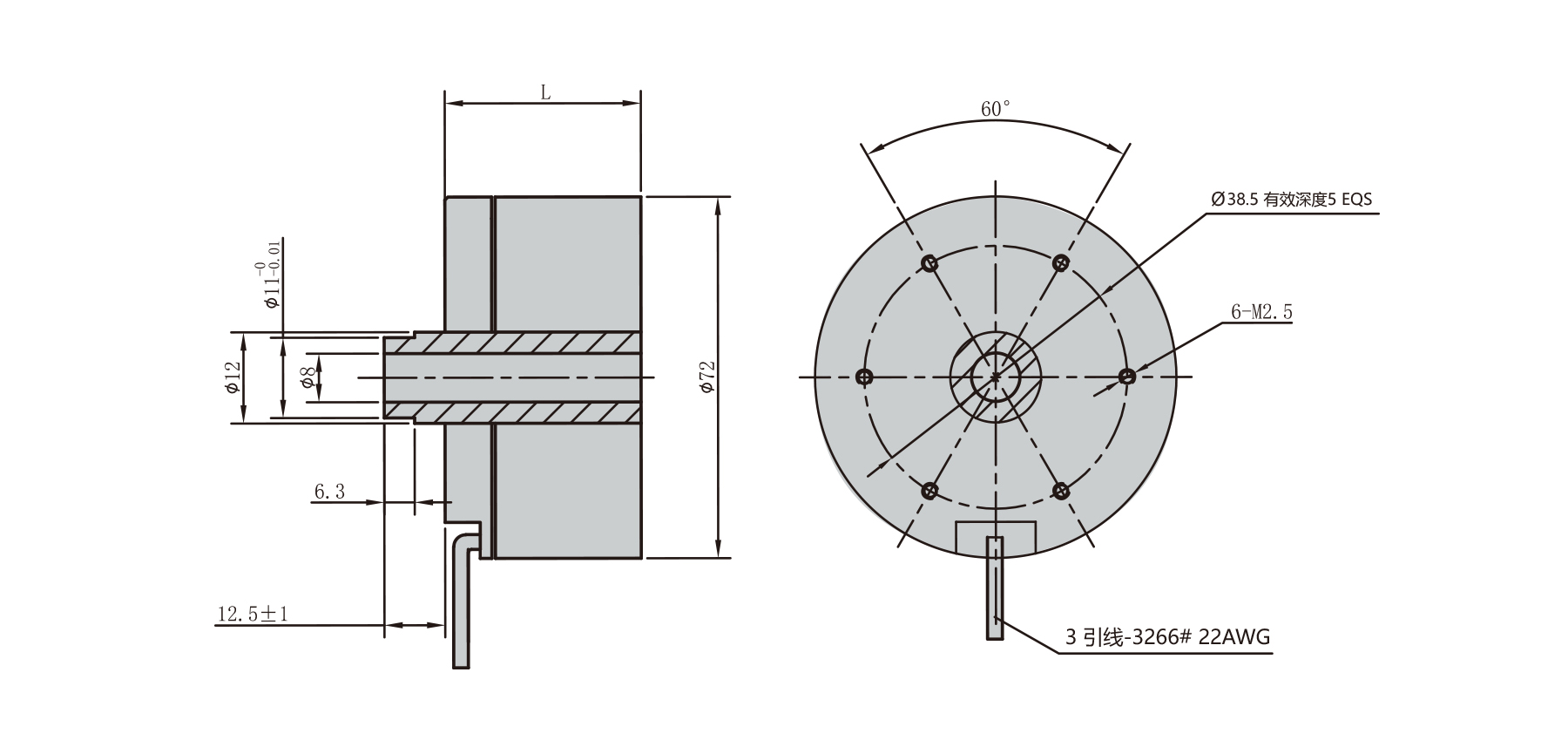

PBLR72EK dia.72mm hollow shaft brushless outrunner motor outline dimensions drawing

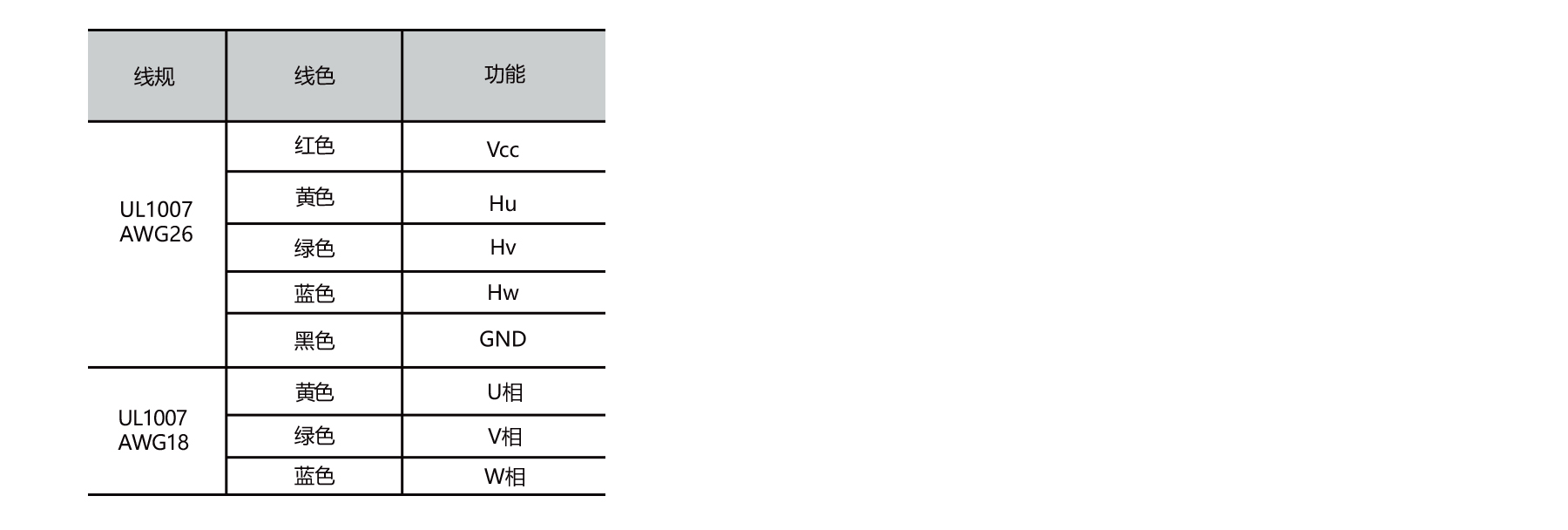

PBLR72EK dia.72mm hollow shaft outrunner bldc motor winding and hall sensor wiring connection

Datasheet
