PBLR62EN

The PBLR62EN series are 3-phase, 28-pole brushless outer rotor motors with 48VDC rating. Speeds range 1000-2000 RPM, delivering rated torque from 0.5 to 1.5 N·m and peak torque up to 3.0 N·m. Compact, efficient, ideal for high-torque industrial applications.

Share This Product:

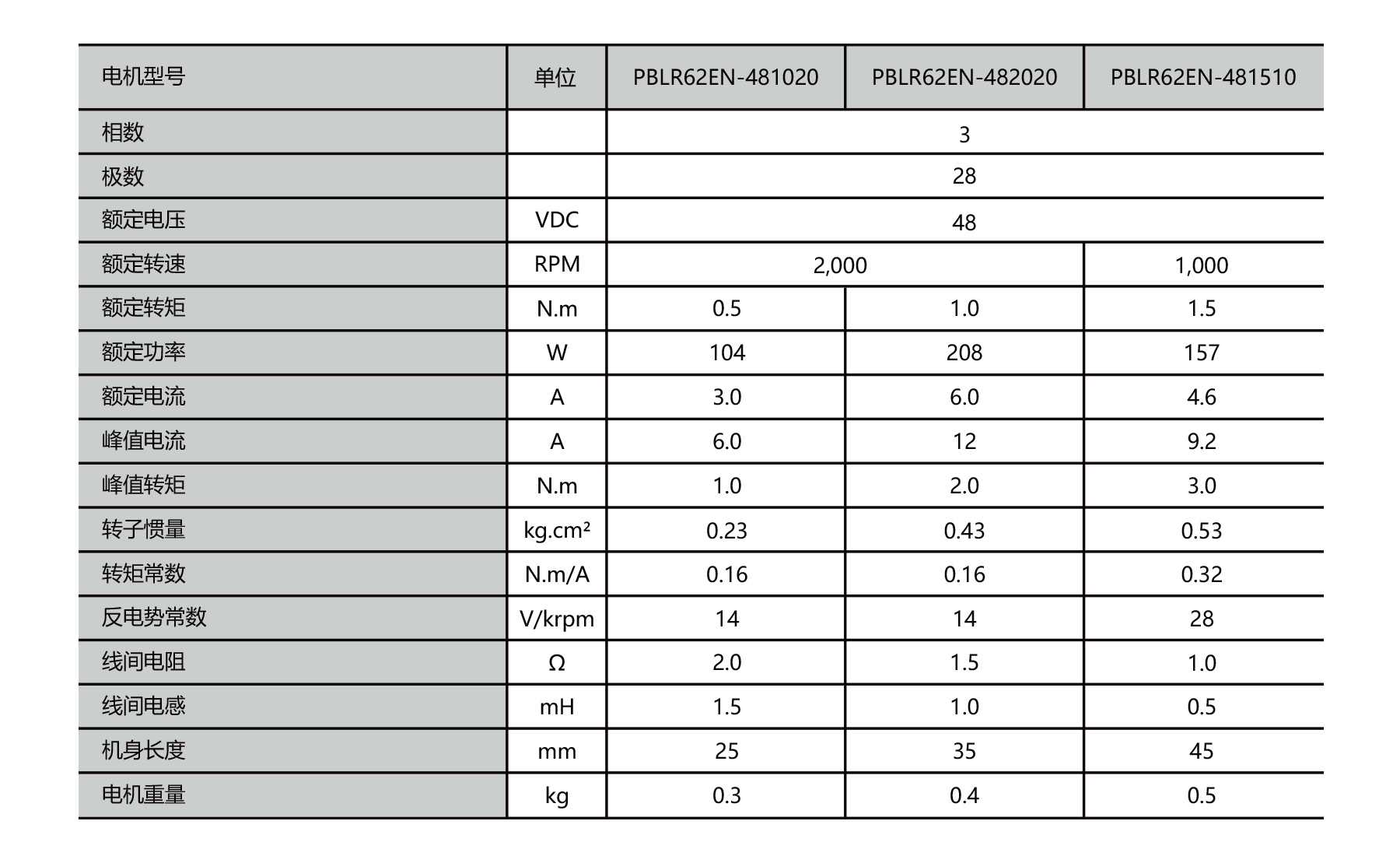

PBLR62EN dia.62mm outrunner brushless dc motor specifications

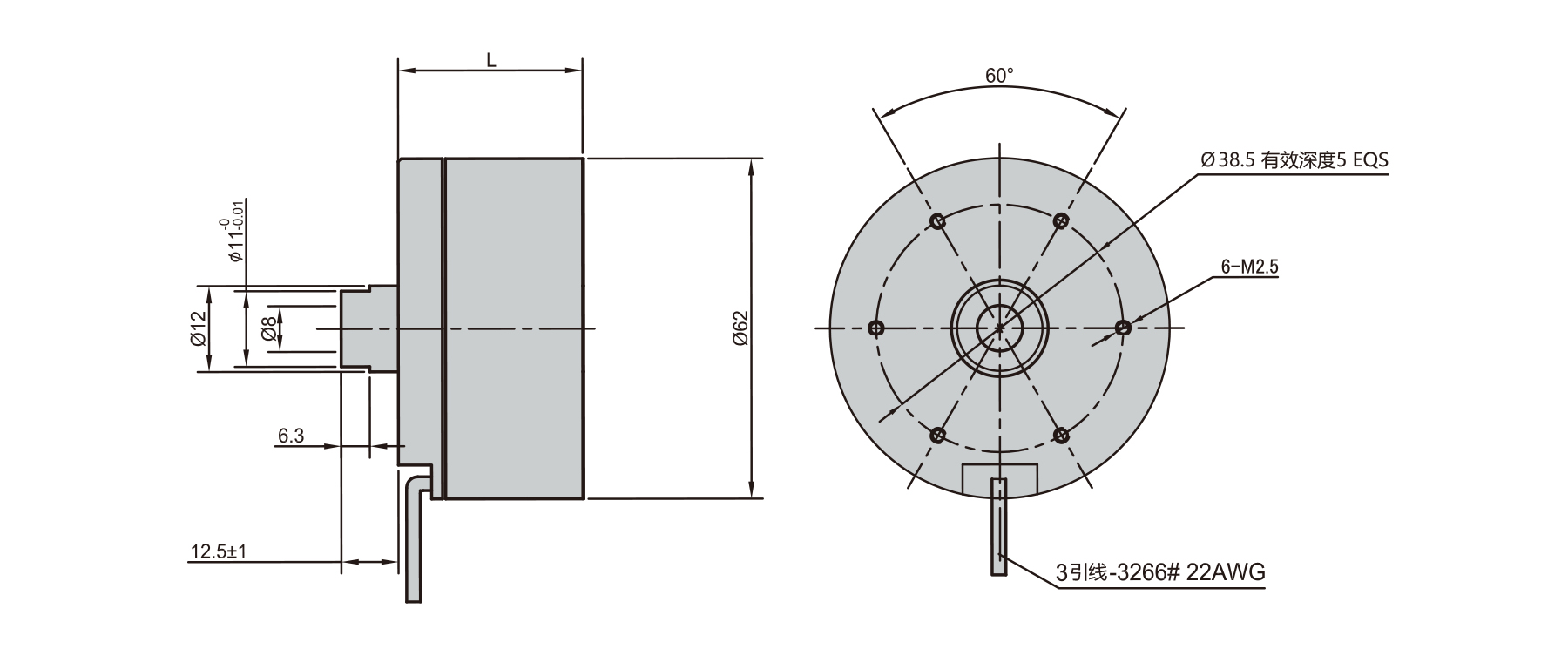

PBLR62EN dia.62mm brushless outrunner motor outline dimensions drawing

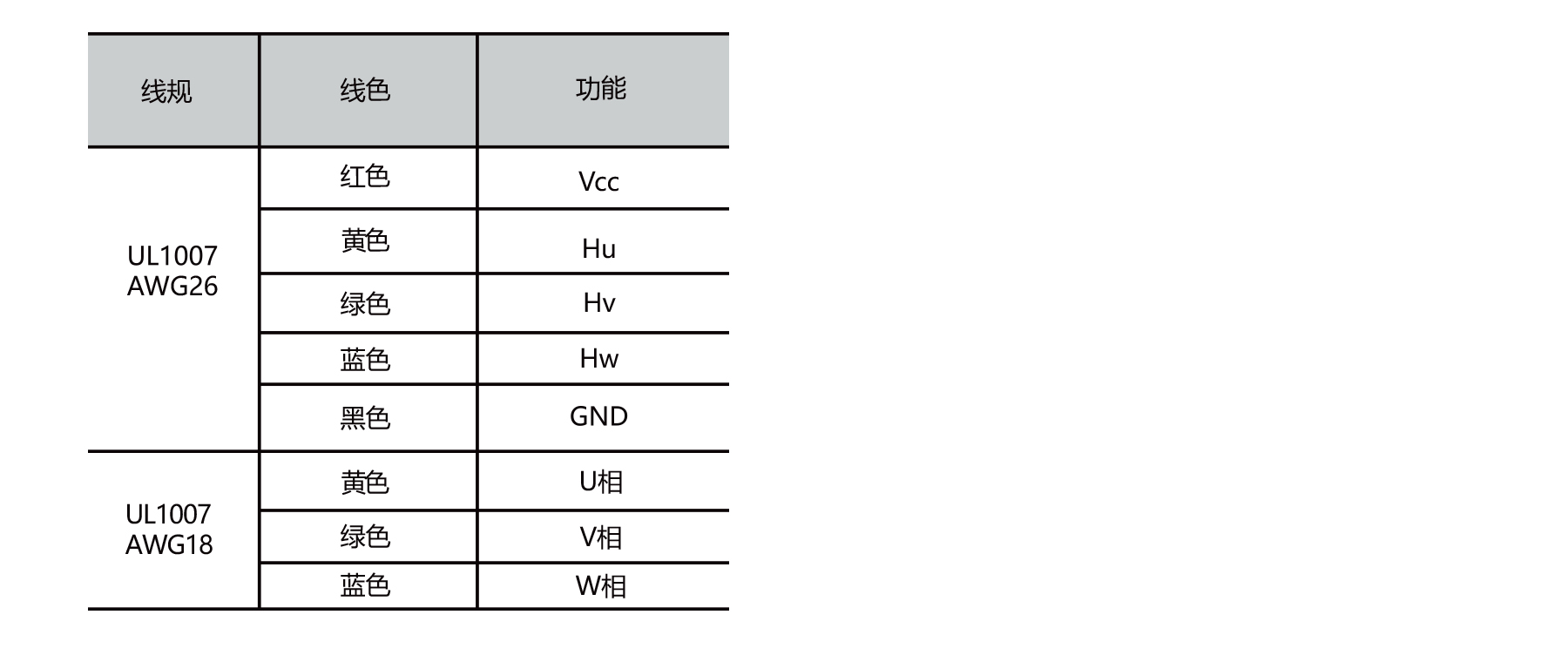

PBLR62EN dia.62mm outrunner bldc motor winding and hall sensor wiring connection

Datasheet
