PBLR60EH

PBLR60EH

The PBLR60EH series is a 3-phase brushless outer rotor motor, 24VDC, running at 3000 RPM. Power ranges from 45W to 90W, with rated torque from 0.15 to 0.3 N·m and peak torque up to 0.9 N·m. Compact, lightweight, ideal for precision industrial applications.

Share This Product:

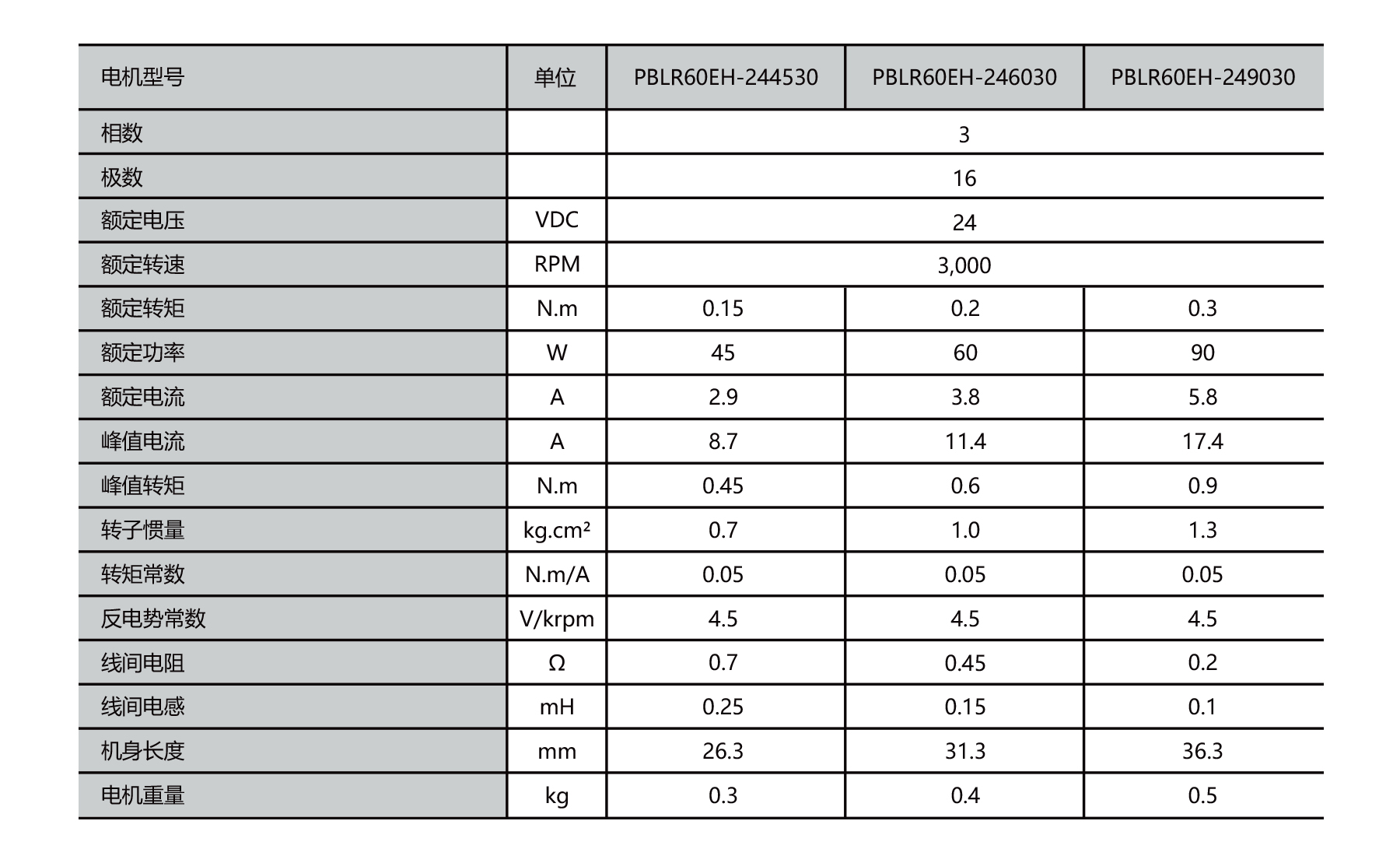

PBLR60EH dia.60mm outrunner brushless dc motor specifications

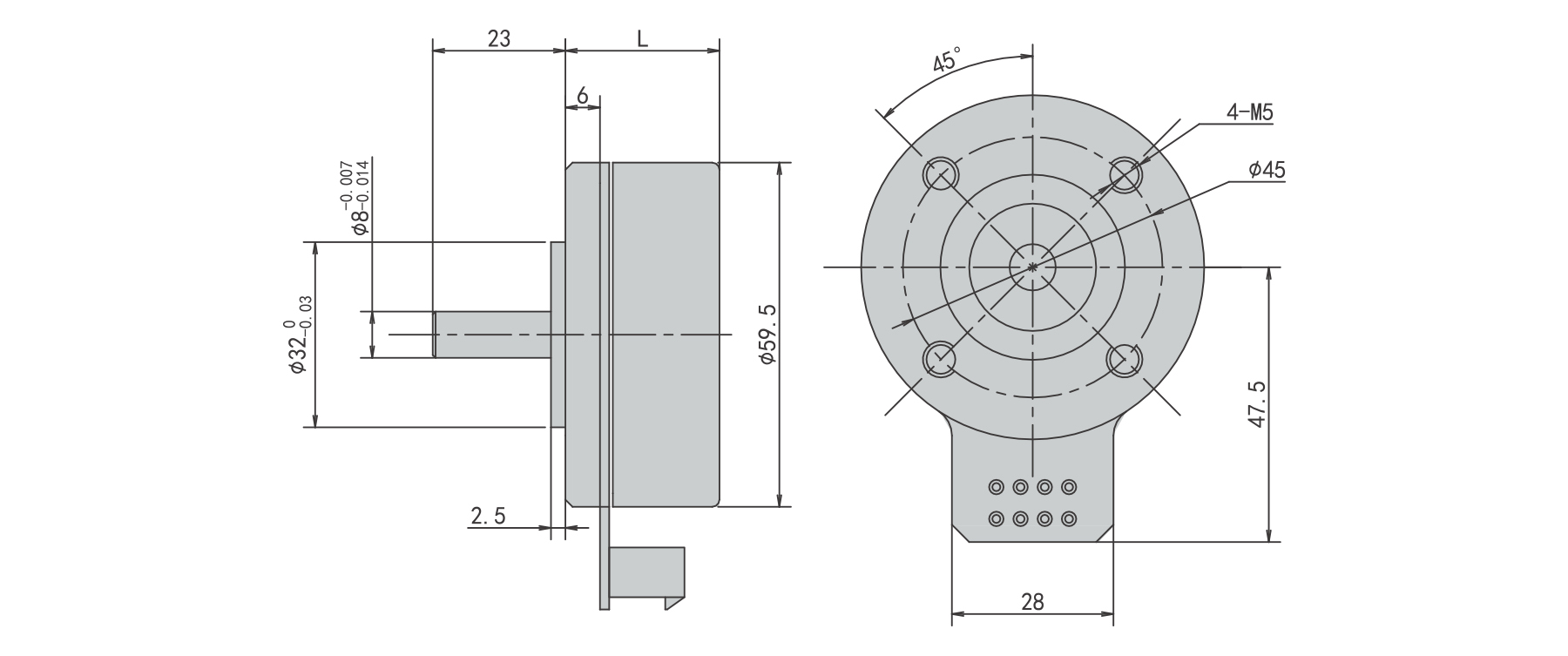

PBLR60EH dia.60mm brushless outrunner motor outline dimensions drawing

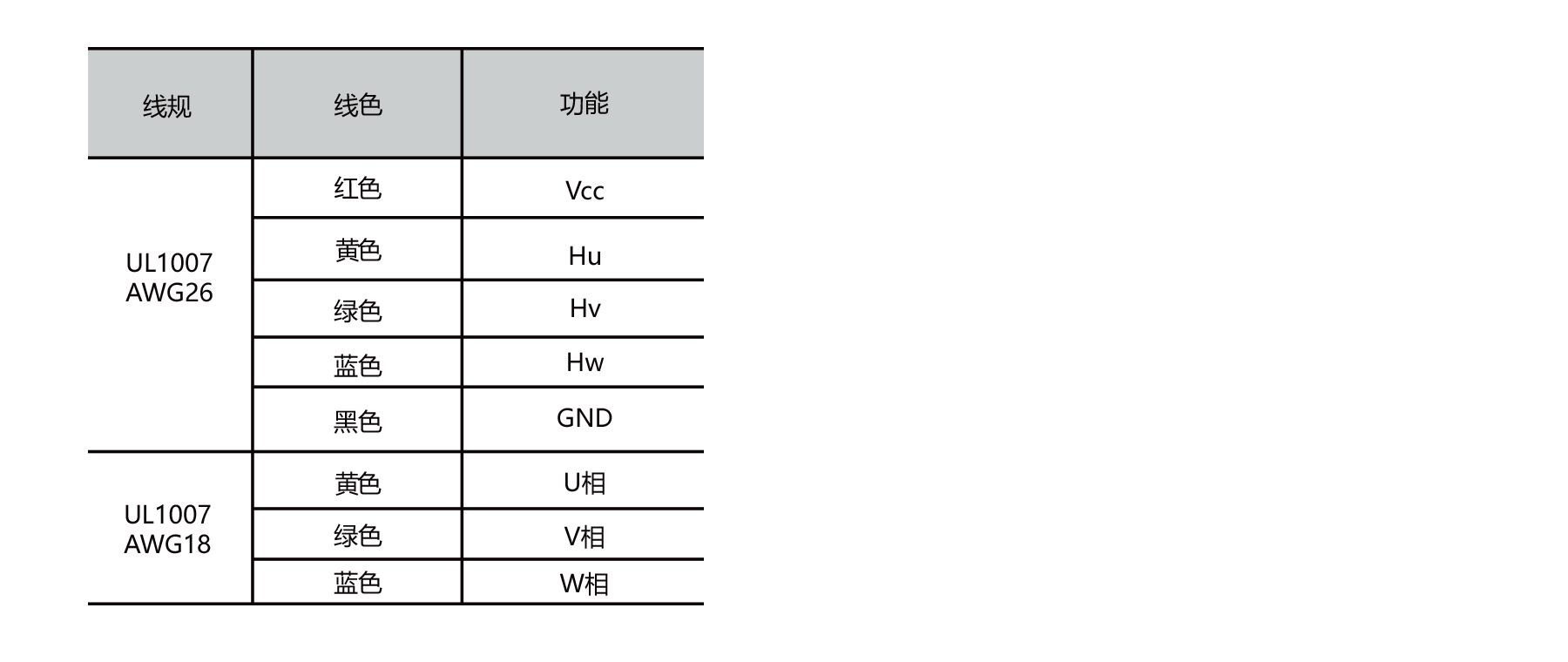

PBLR60EH dia.60mm outrunner bldc motor winding and hall sensor wiring connection

Datasheet
