PBLR49TH

PBLR49TH

The PBLR49TH is a 3-phase, 24-pole brushless motor with built-in drive, rated at 24V DC. It operates at 4000 RPM with a rated torque of 0.018 N·m and peak torque of 0.054 N·m. Compact and lightweight (0.5 kg), perfect for precise, low-power industrial applications.

Share This Product:

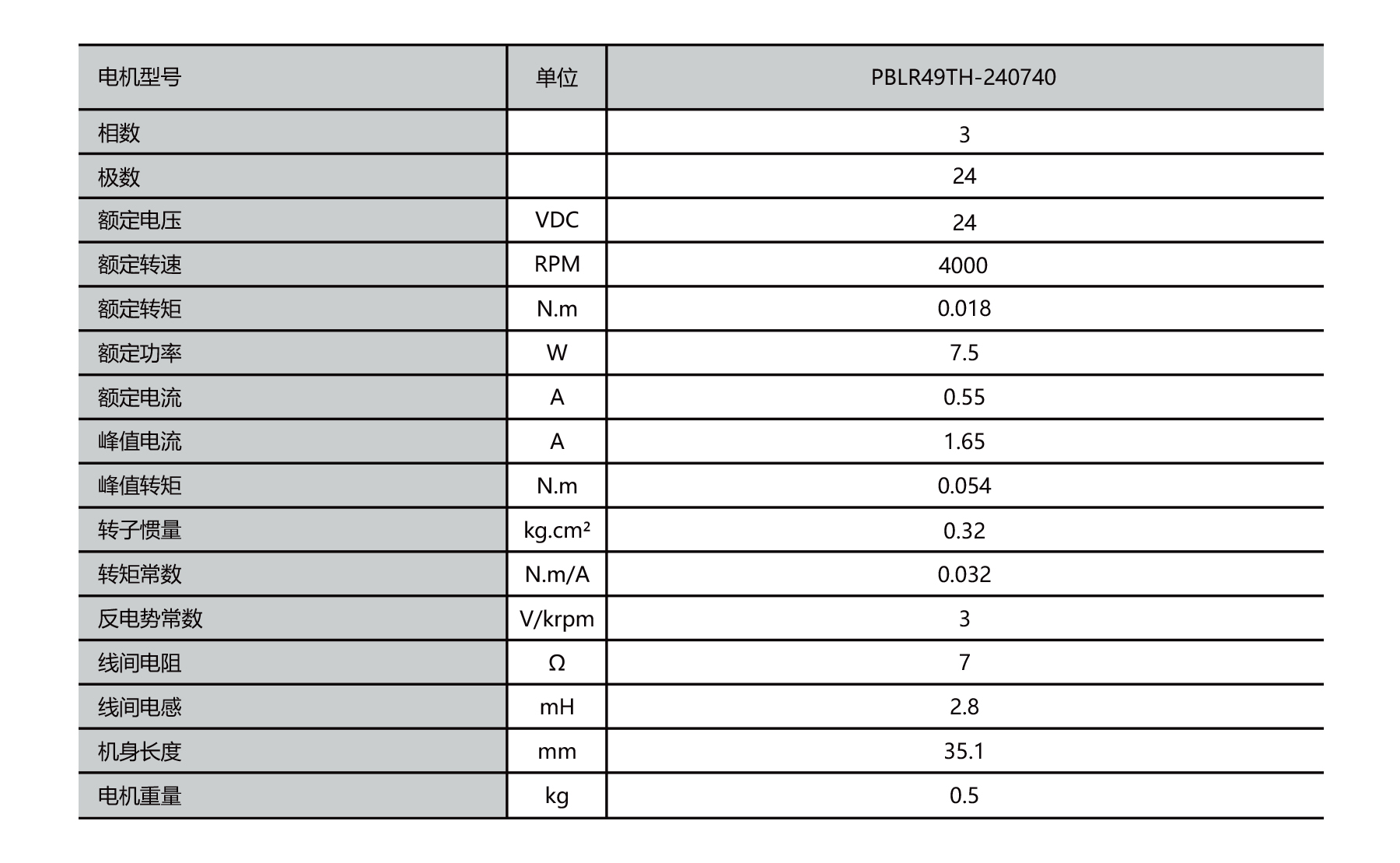

PBLR49TH dia.49mm integrated outrunner brushless dc motor specifications

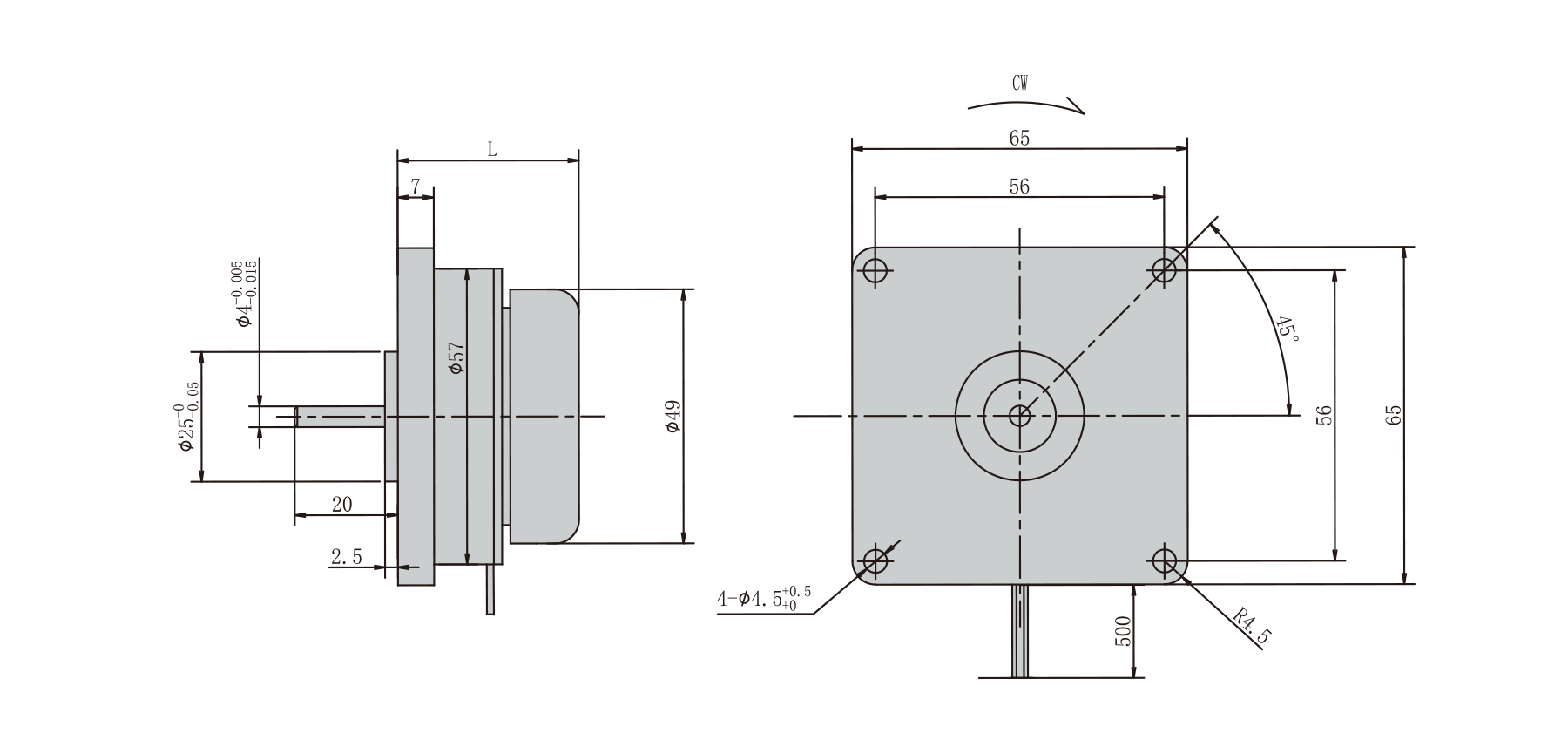

PBLR49TH dia.49mm integrated brushless outrunner motor outline dimensions drawing
PBLR49TH dia.49mm integrated outrunner bldc motor winding and hall sensor wiring connection

Datasheet
