PBLS110PE

PBLS110PE

The PBLS110PE series are high-performance 3-phase, 8-pole brushless motors rated at 310V DC and 2000 RPM. With rated torque from 4 to 8 N·m and peak torque up to 24 N·m, these motors deliver power between 836W and 1,673W. Featuring IP65 waterproof protection, weights from 4.5 to 6.5 kg, and lengths between 155 and 198 mm, they are ideal for demanding industrial applications requiring durability and precision.

Share This Product:

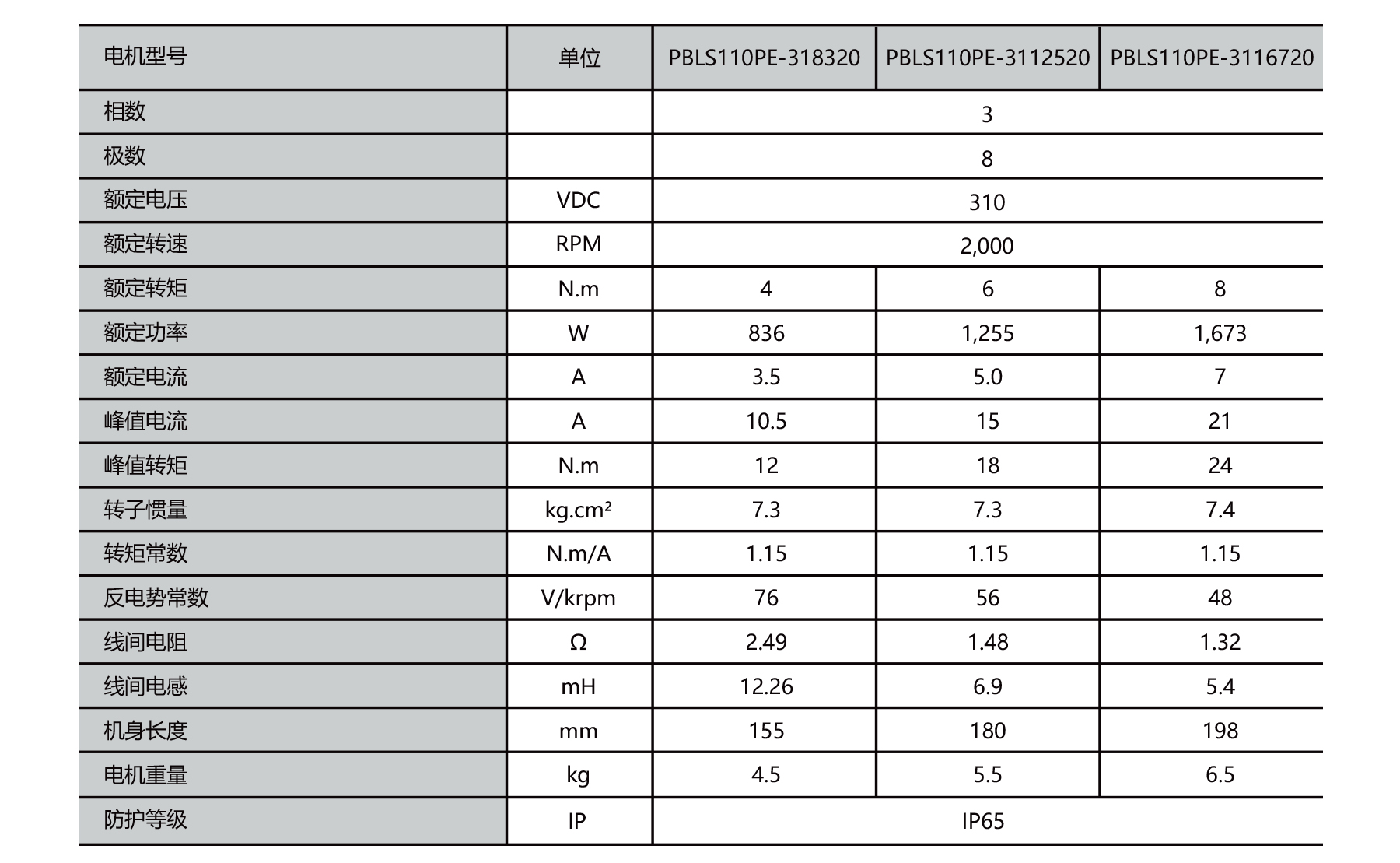

PBLS110PE nema 42 waterproof brushless motor specification

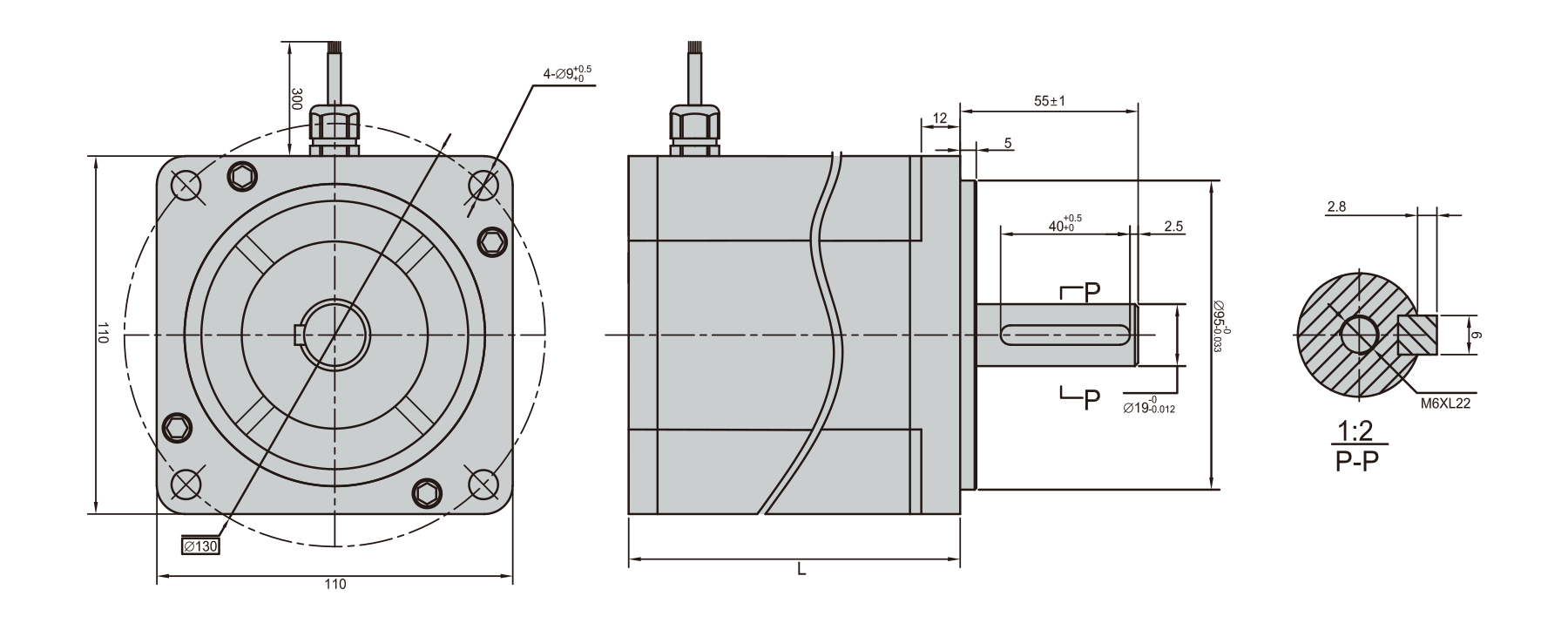

PBLS110PE nema 42 waterproof bldc motor outline dimensions drawing

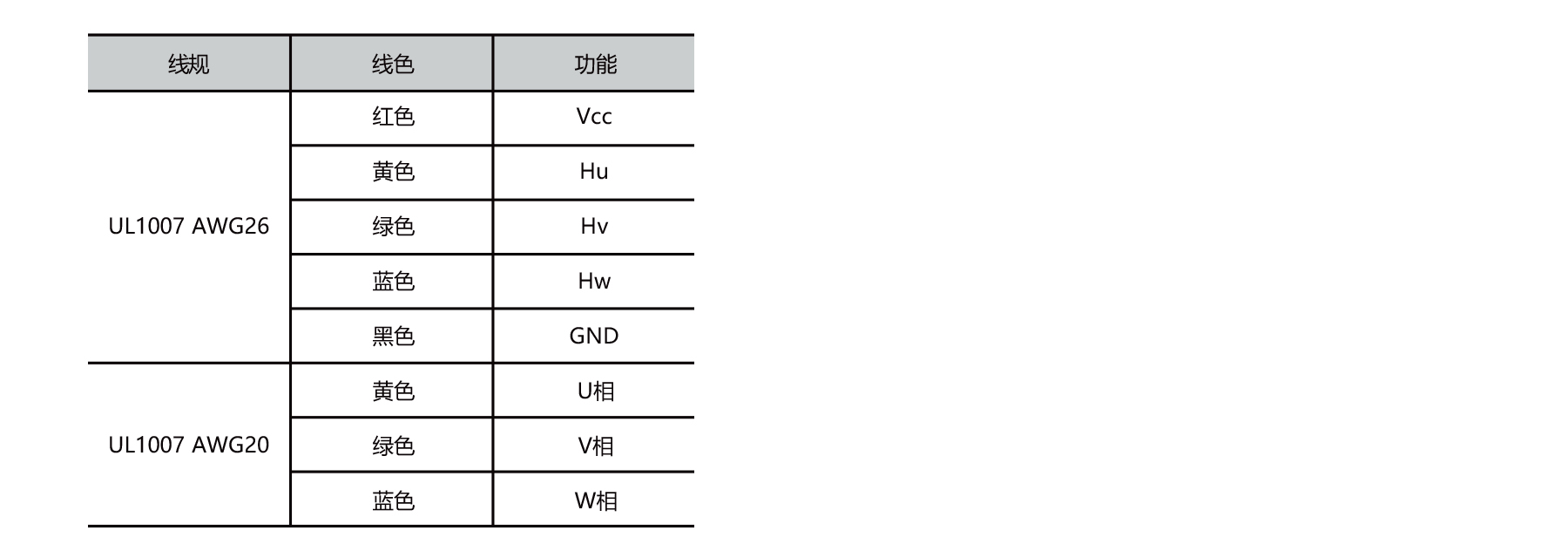

PBLS110PE nema 42 brushless underwater motor winding and hall sensor wiring connection

Datasheet
