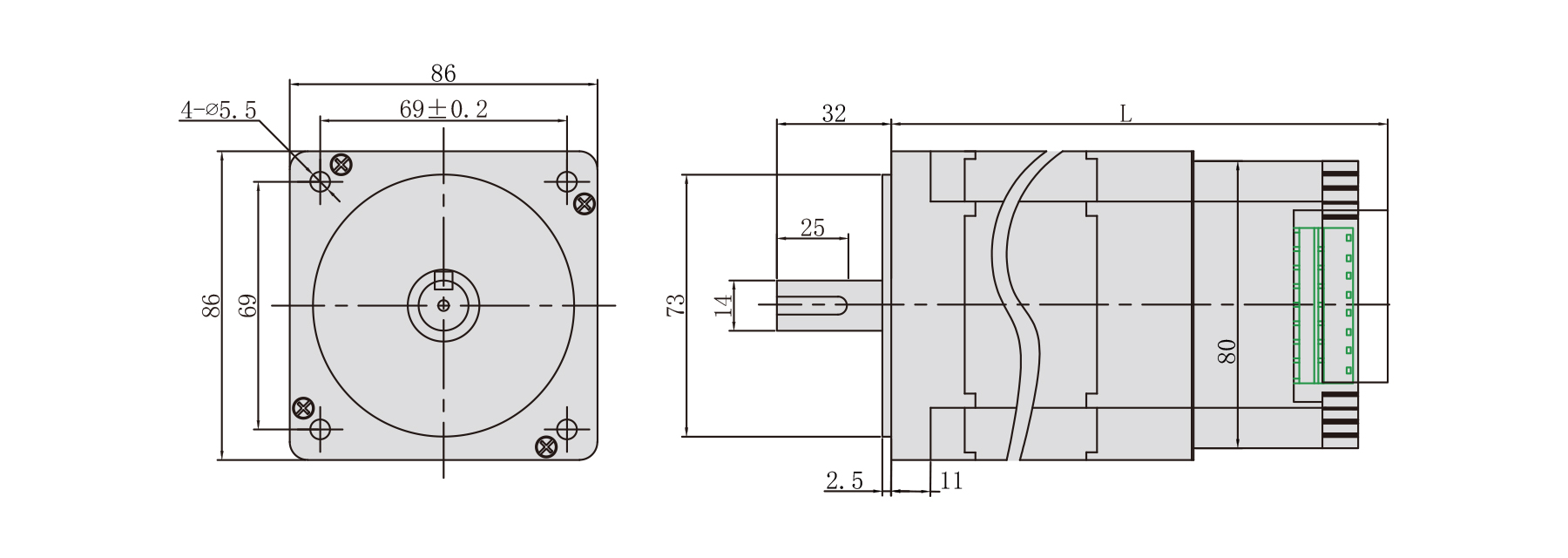

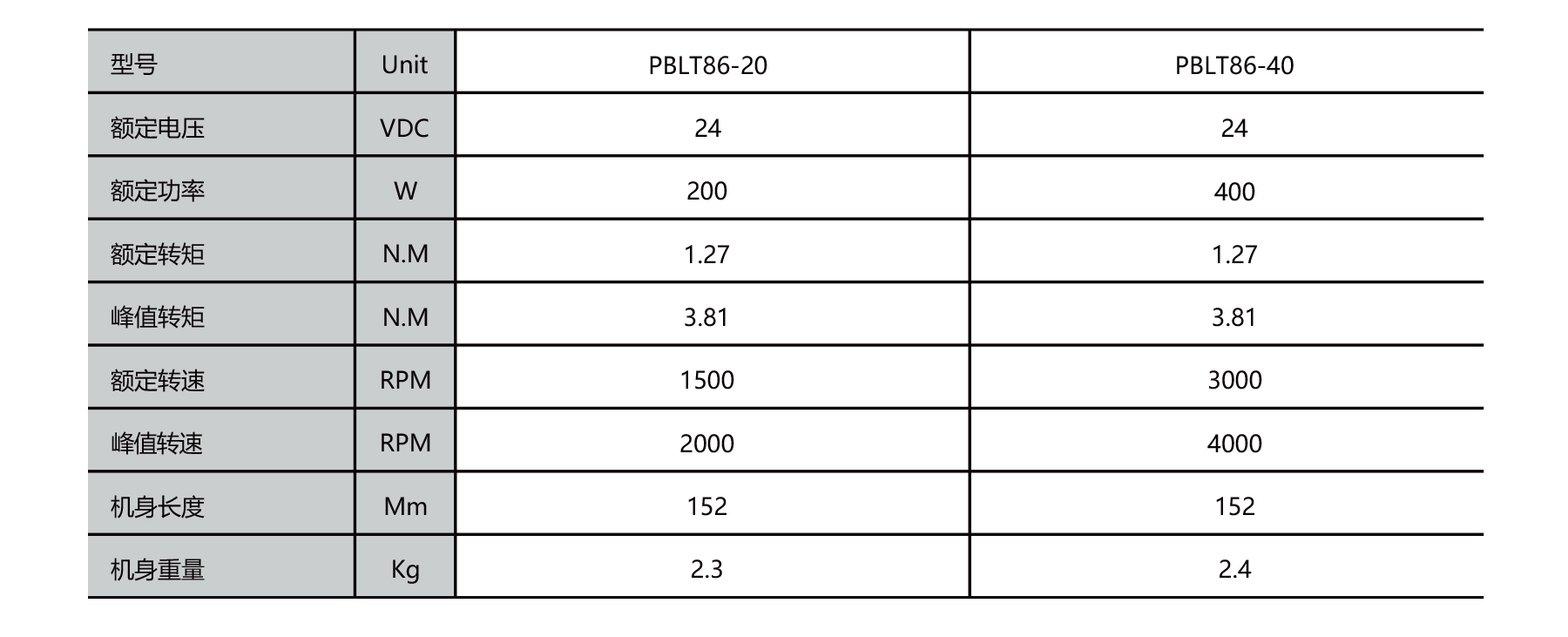

The PBLT86 series are high-performance integrated brushless motors operating at 24V DC, delivering rated power of 200W and 400W. Both models offer a rated torque of 1.27 N.m, with peak torque reaching up to 3.81 N·m. The motors run at rated speeds of 1500 RPM and 3000 RPM, with peak speeds up to 2000 RPM and 4000 RPM respectively. Compact in size with a length of 152 mm and weights between 2.3 kg and 2.4 kg, these motors are ideal for industrial applications requiring precision control.
