PBLS60GE

PBLS60GE

The PBLS60GE series are high-performance industrial brushless geared motors, rated at 48V and 3,000RPM. Delivering up to 400W power and 3.81N·m peak torque. The pre-installed transmission type planetary gearbox has 2 different stages, and the highest reduction ratio is as high as 50:1. These motors provide reliable torque, smooth operation, and compact design—ideal for robotics, automation, and precision machinery applications.

Share This Product:

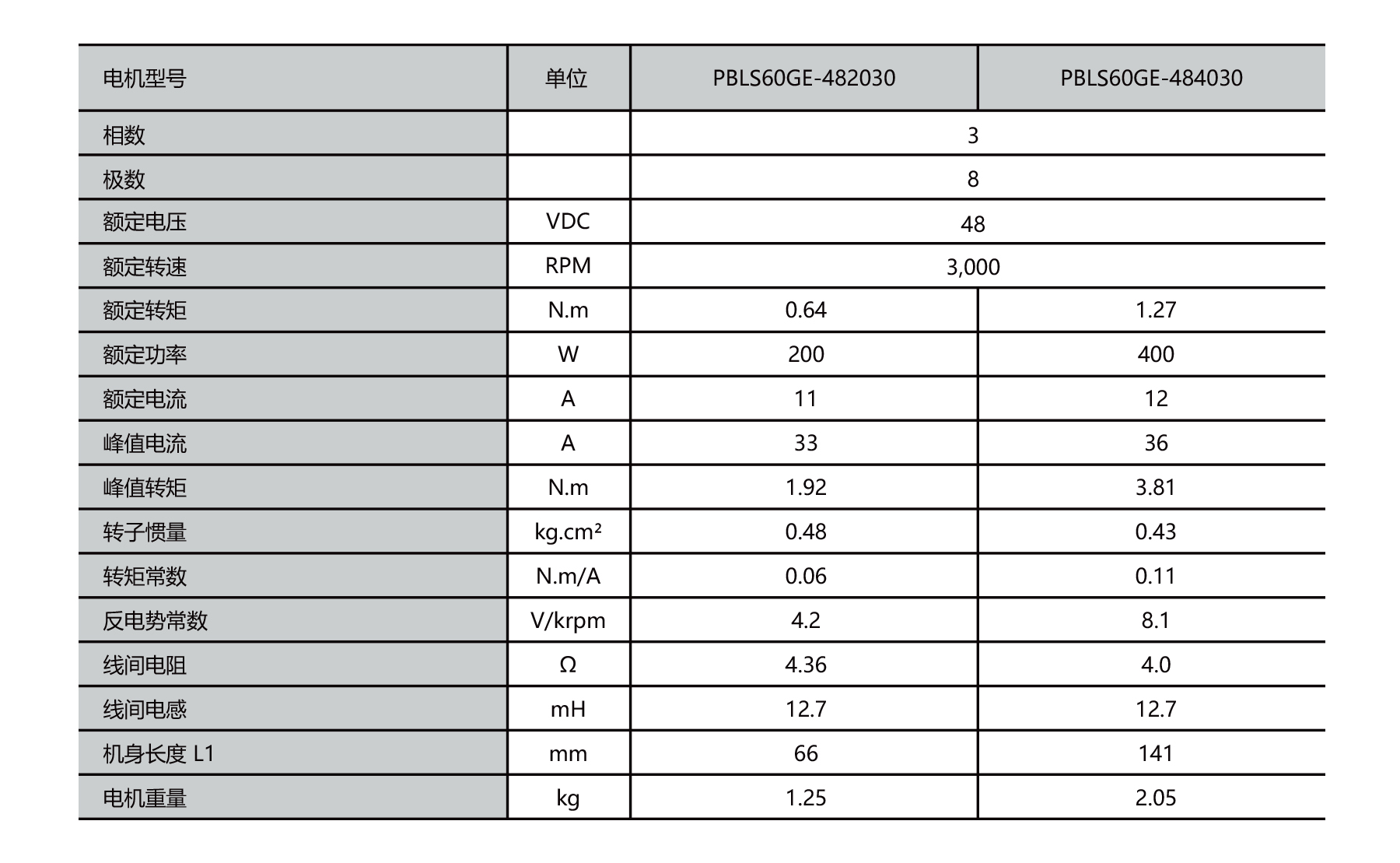

PBLS60GE 60X60mm bldc geared motor voltage, speed, torque, current, and power

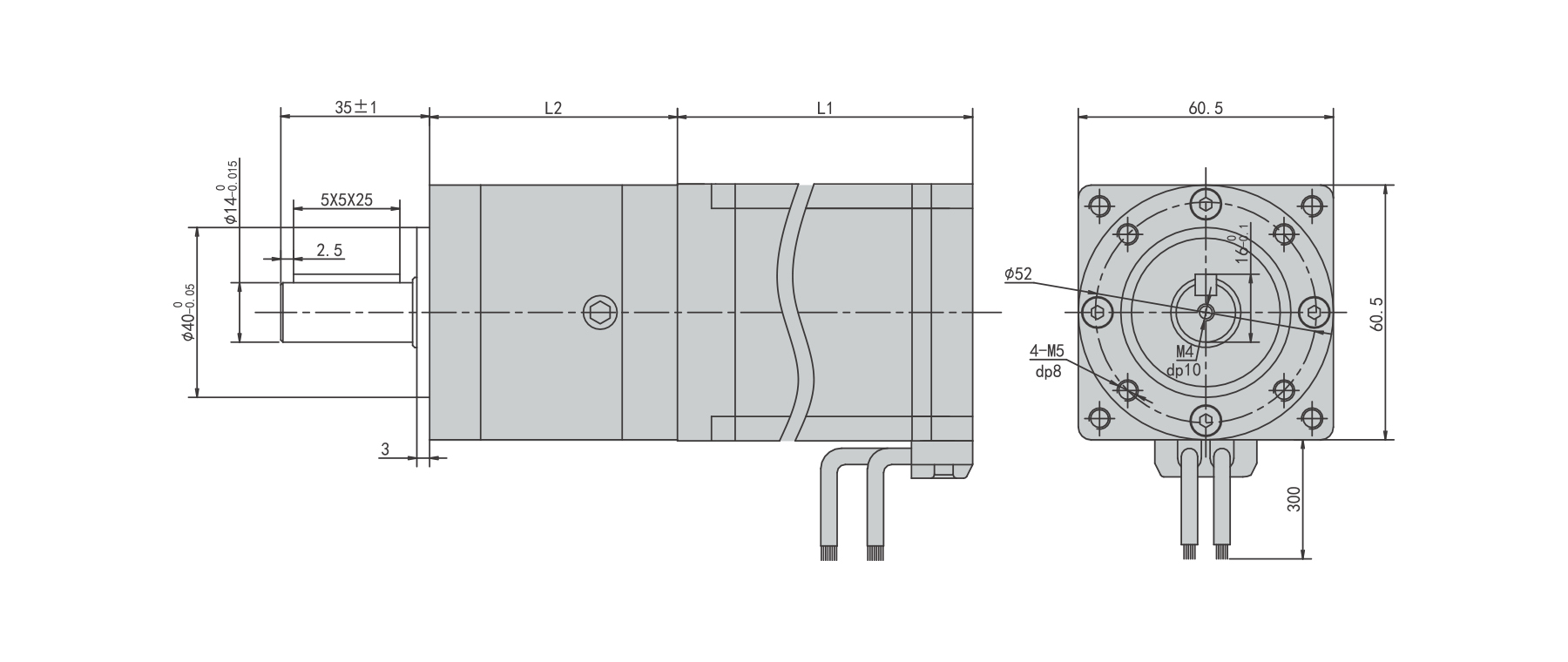

PBLS60GE 60mm BLDC planet geared motor outline dimensions drawing
PBLS60GE 60mm square Brushless geared motor winding and hall sensor wiring connection

Datasheet
