PBLS42GE

PBLS42GE

The PBLS42GE series are industrial brushless geared motors operating at 48V, offering up to 94W power and 0.3N·m rated torque at 3,000RPM. The pre-installed transmission type planetary gearbox has 2 different stages, and the highest reduction ratio is as high as 100:1. With compact size and precise torque control, they are ideal for industrial automation, robotics, and high-performance applications.

Share This Product:

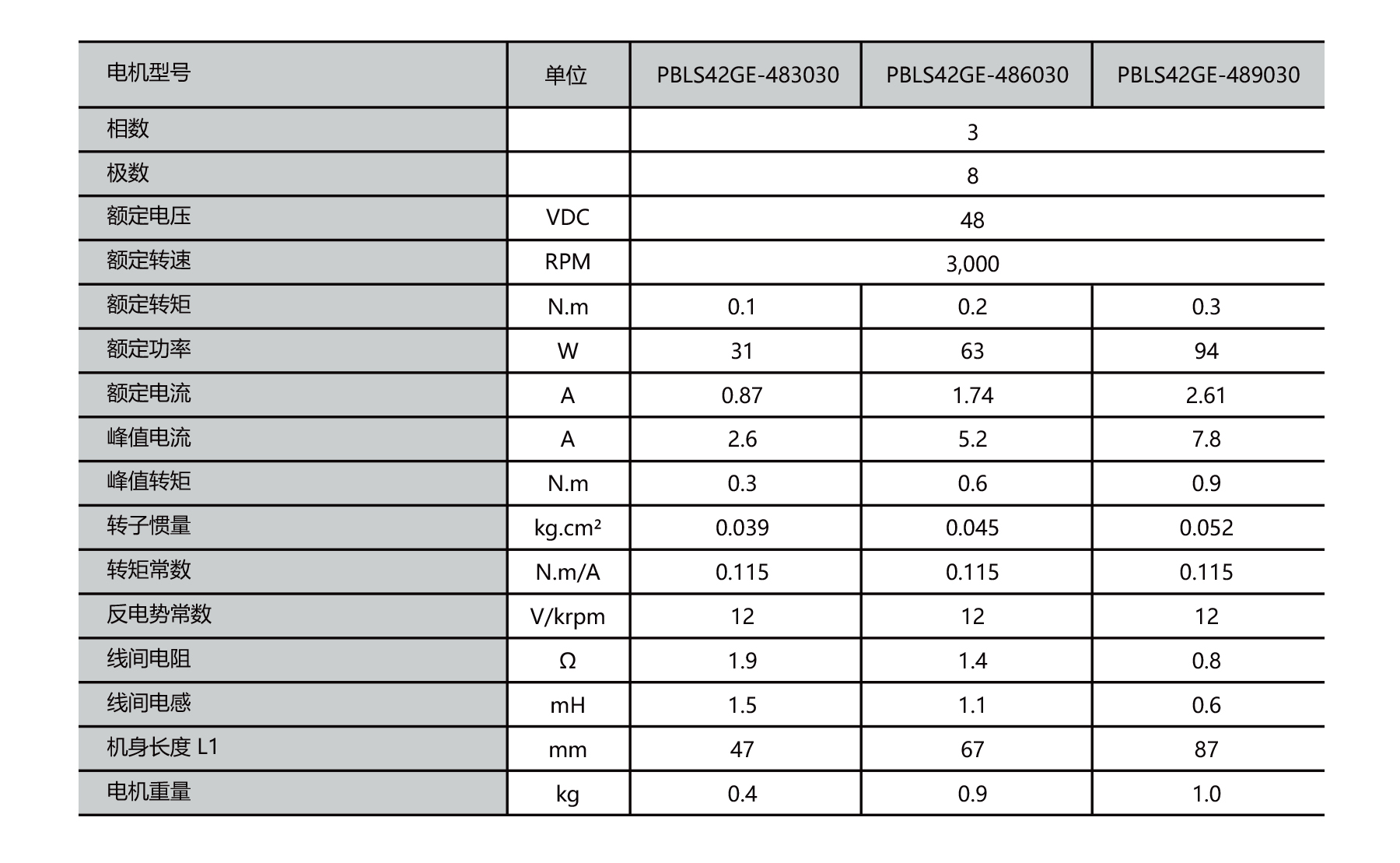

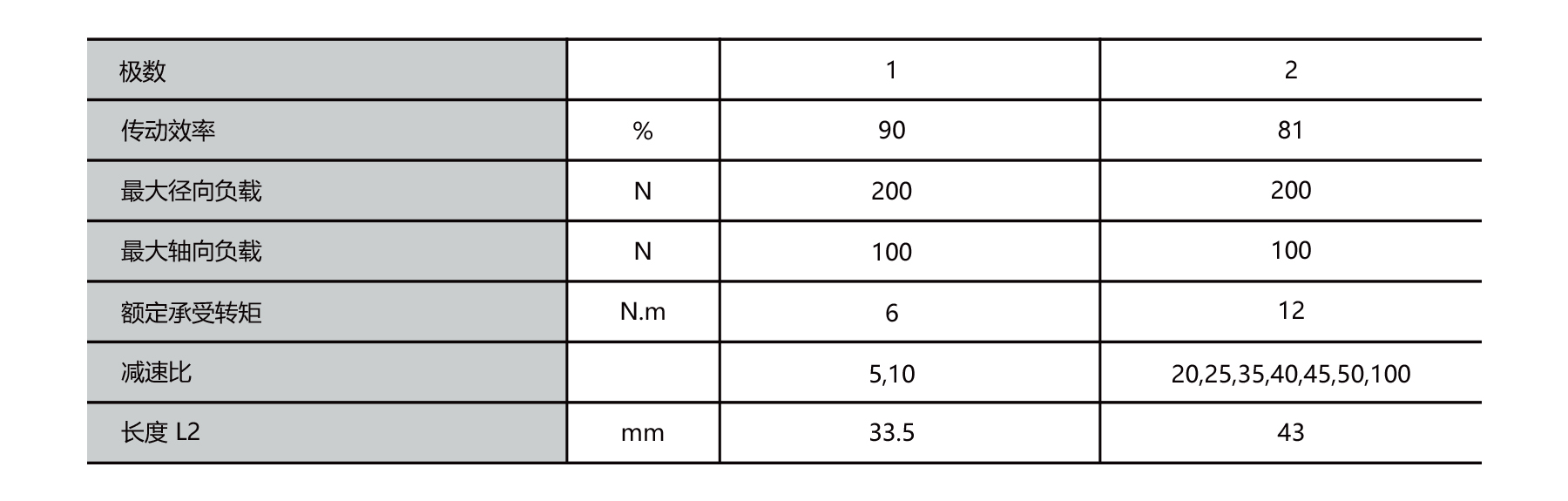

PBLS42GE 42X42mm bldc geared motor voltage, speed, torque, current, and power

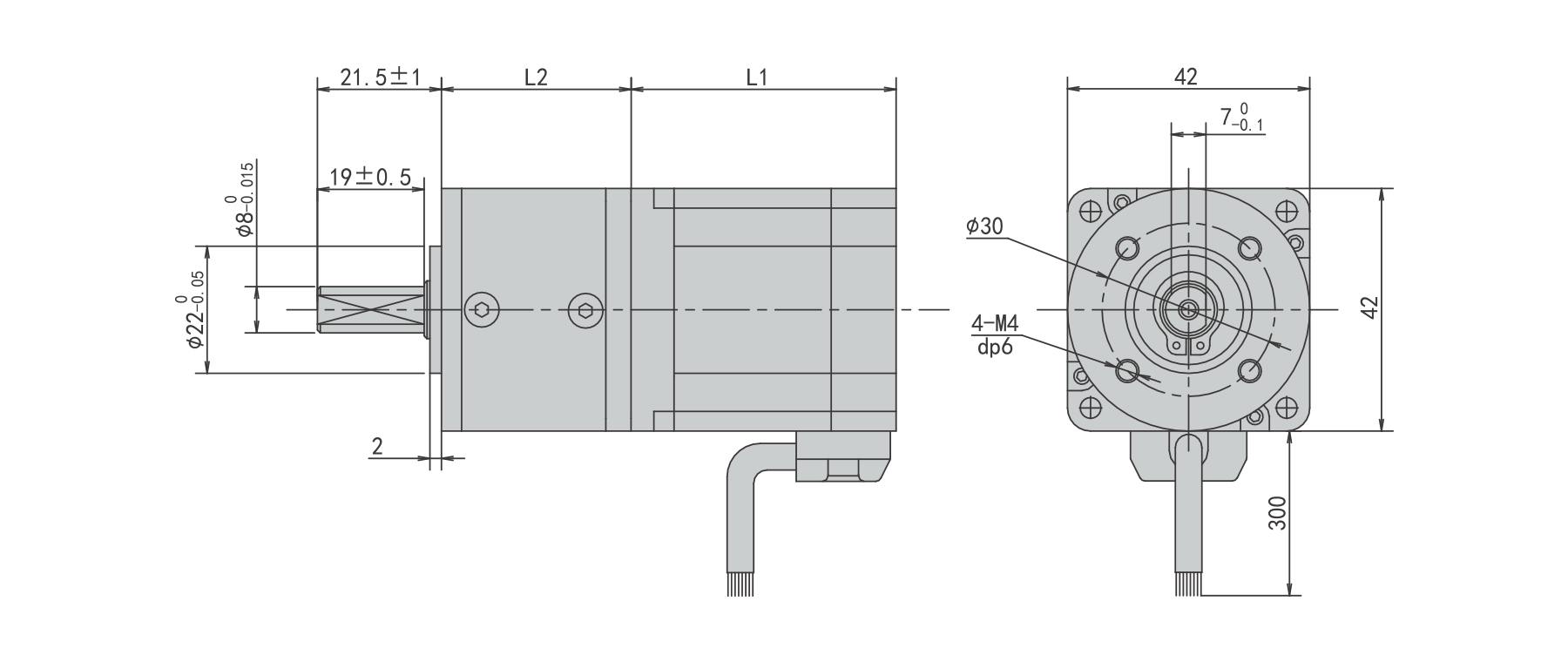

PBLS42GE 42mm BLDC planet geared motor outline dimensions drawing
PBLS42GE 42mm square Brushless geared motor winding and hall sensor wiring connection

Datasheet
