PBLS35HE

PBLS35HE

The PBLS35HE Series 24V BLDC motors deliver up to 33.5W power and 0.08N·m torque, with speeds up to 4000 RPM. Featuring a compact 35mm frame, 8-pole 3-phase design, and 120° Hall sensors, they are ideal for robotics, medical devices, and compact automation systems.

Share This Product:

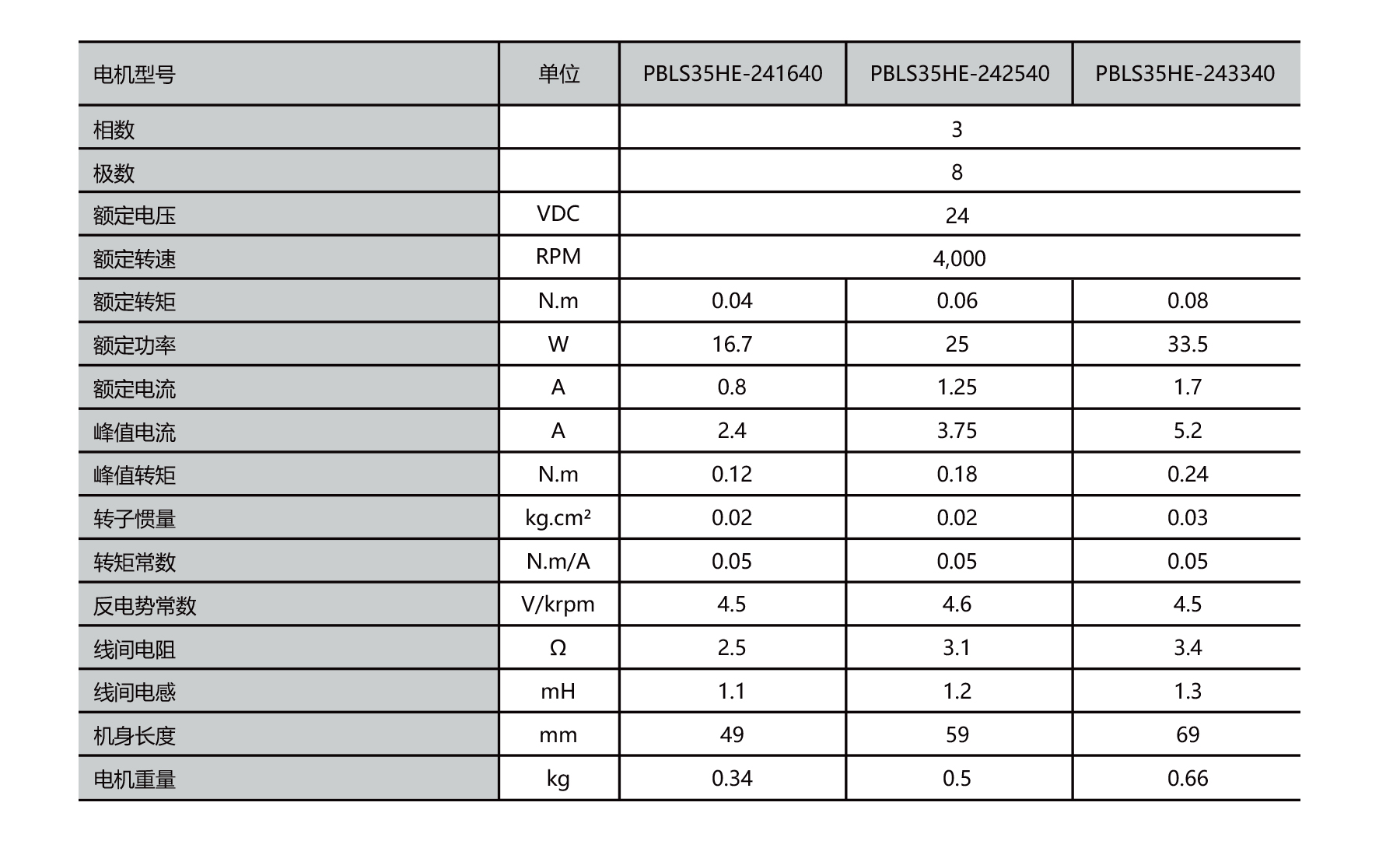

PBLS35HE 35mm BLDC motor electrical specification

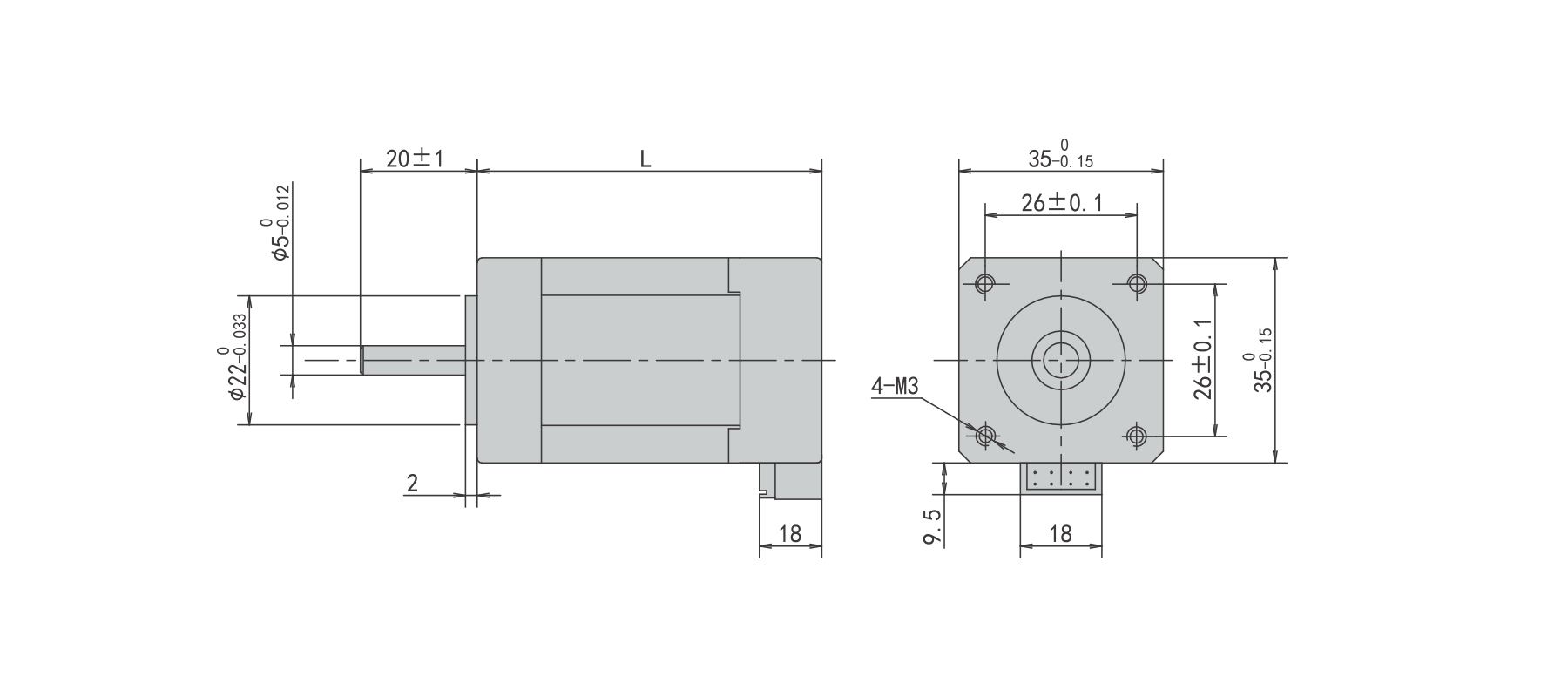

PBLS35HE 35mm BLDC motor outline dimensions drawing

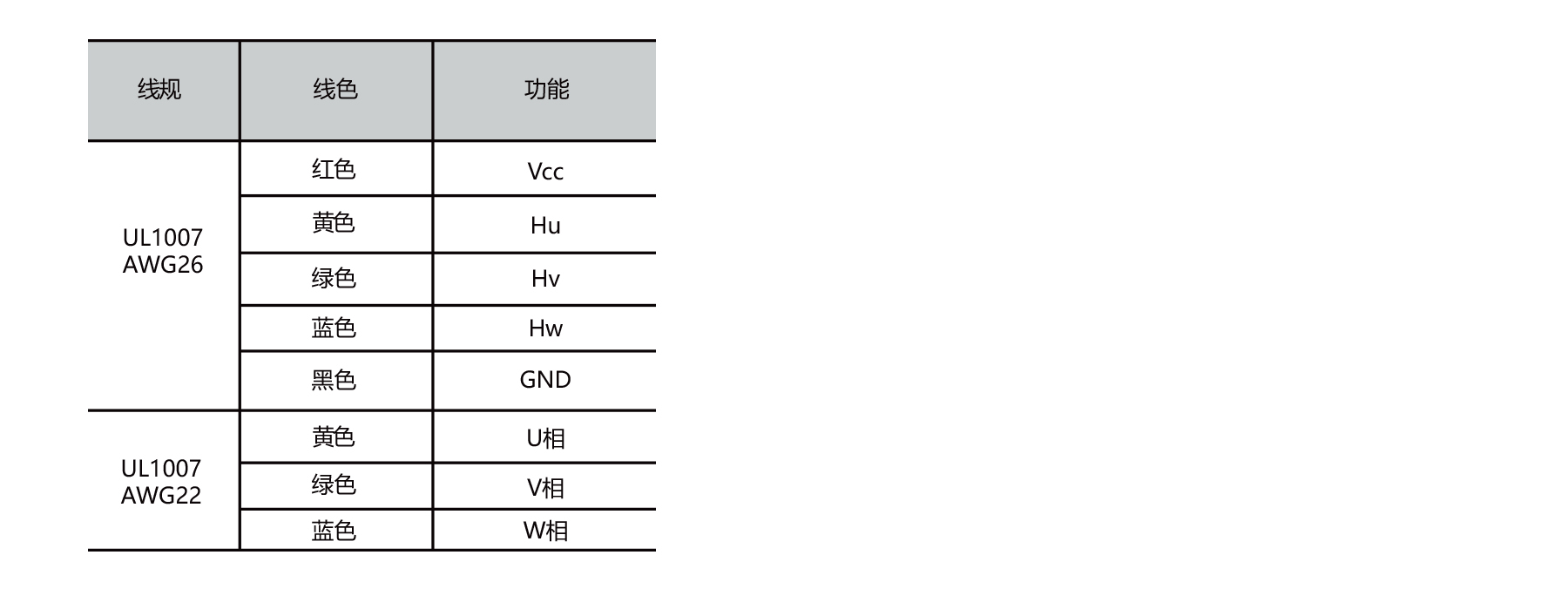

PBLS35HE 35mm BLDC motor winding and hall sensor wiring connection

Datasheet
