PBLR56HF

PBLR56HF

The PBLR56HF series are 48V, 3-phase BLDC motors delivering up to 276W power and 0.66N·m rated torque at 4000RPM. With low resistance and inductance, high torque constant, and compact size, these motors excel in industrial automation, robotics, and precision motion control applications.

Share This Product:

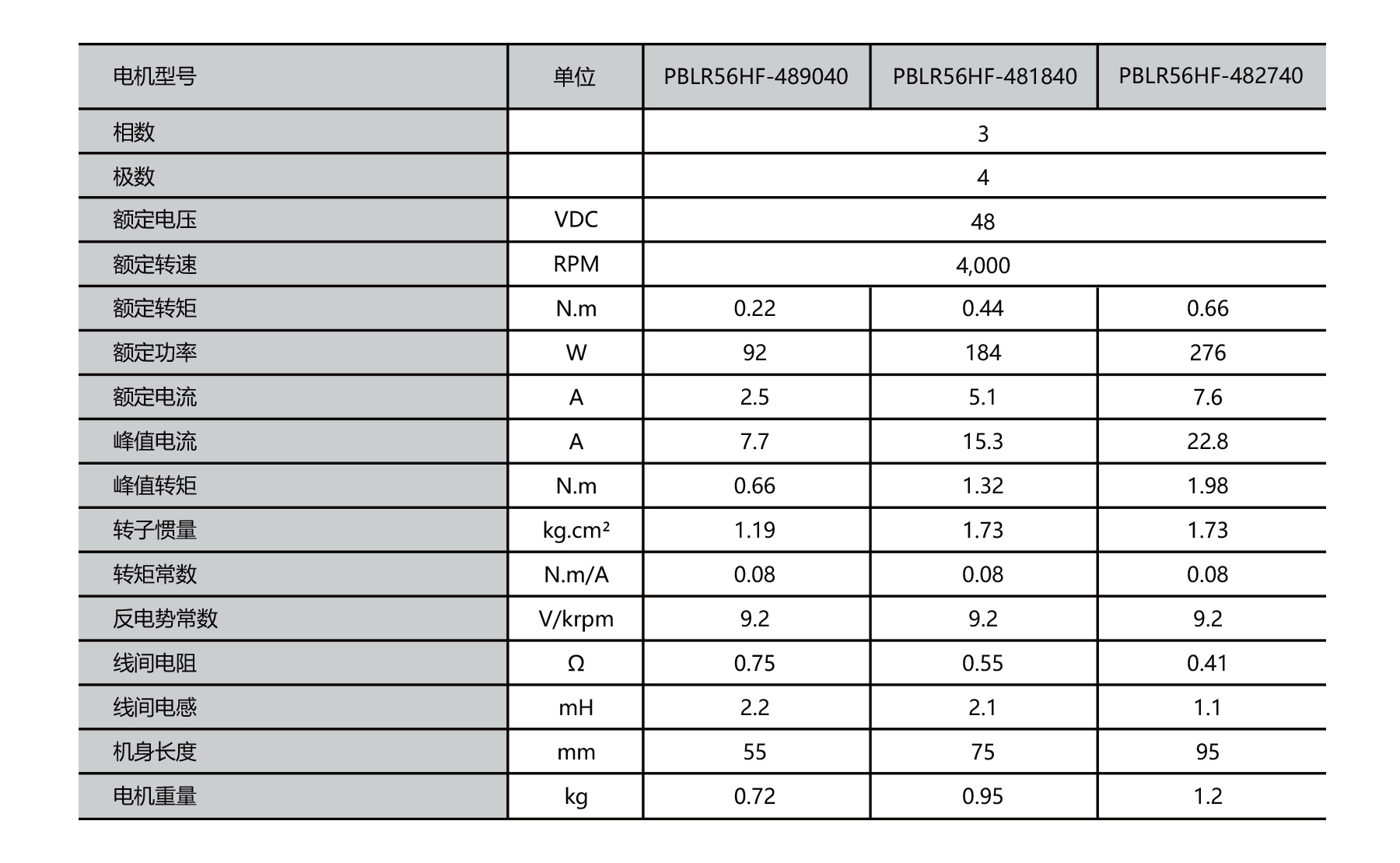

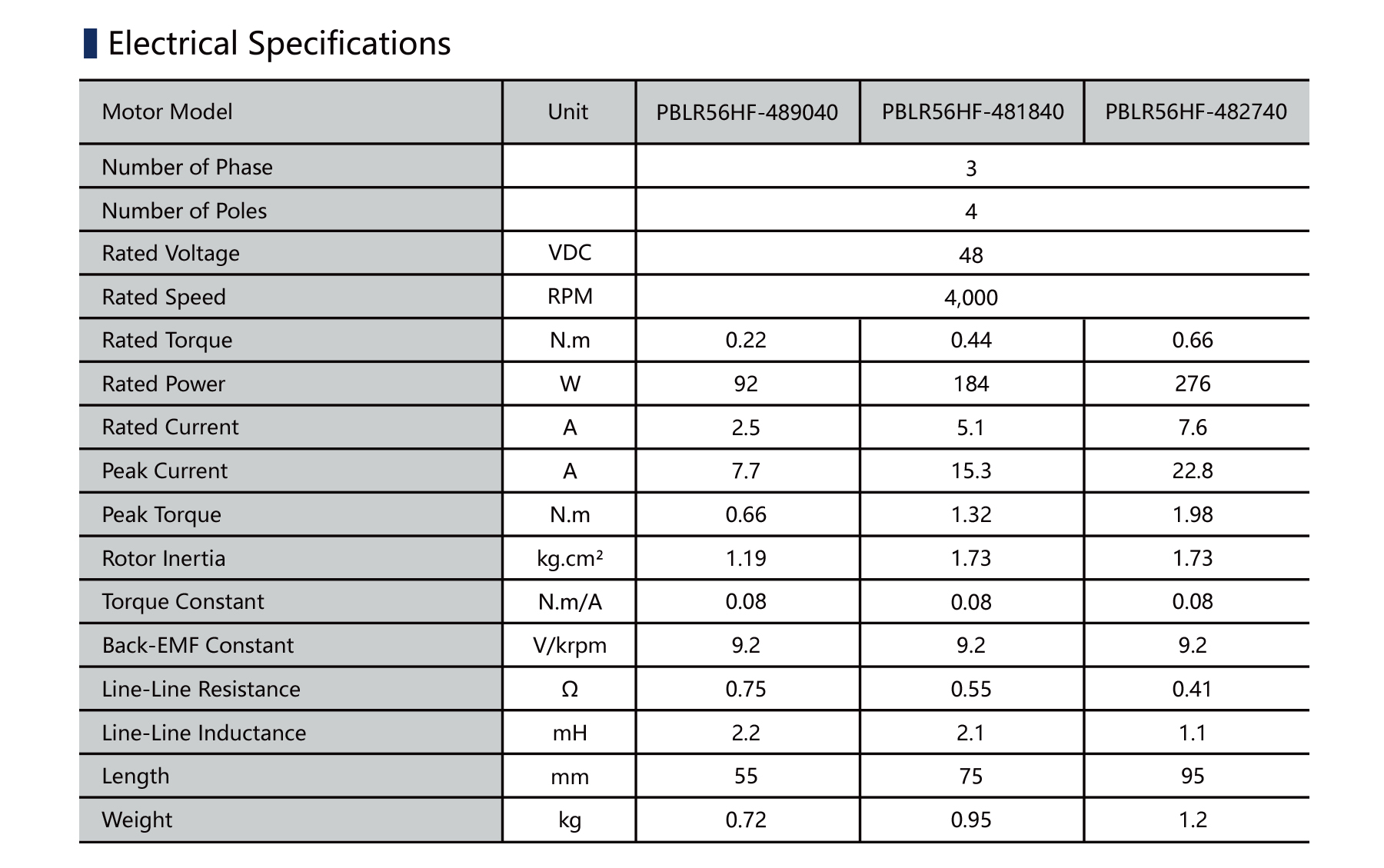

PBLS56HE 56mm BLDC motor electrical specification
PBLS56HE 56mm BLDC motor outline dimensions drawing

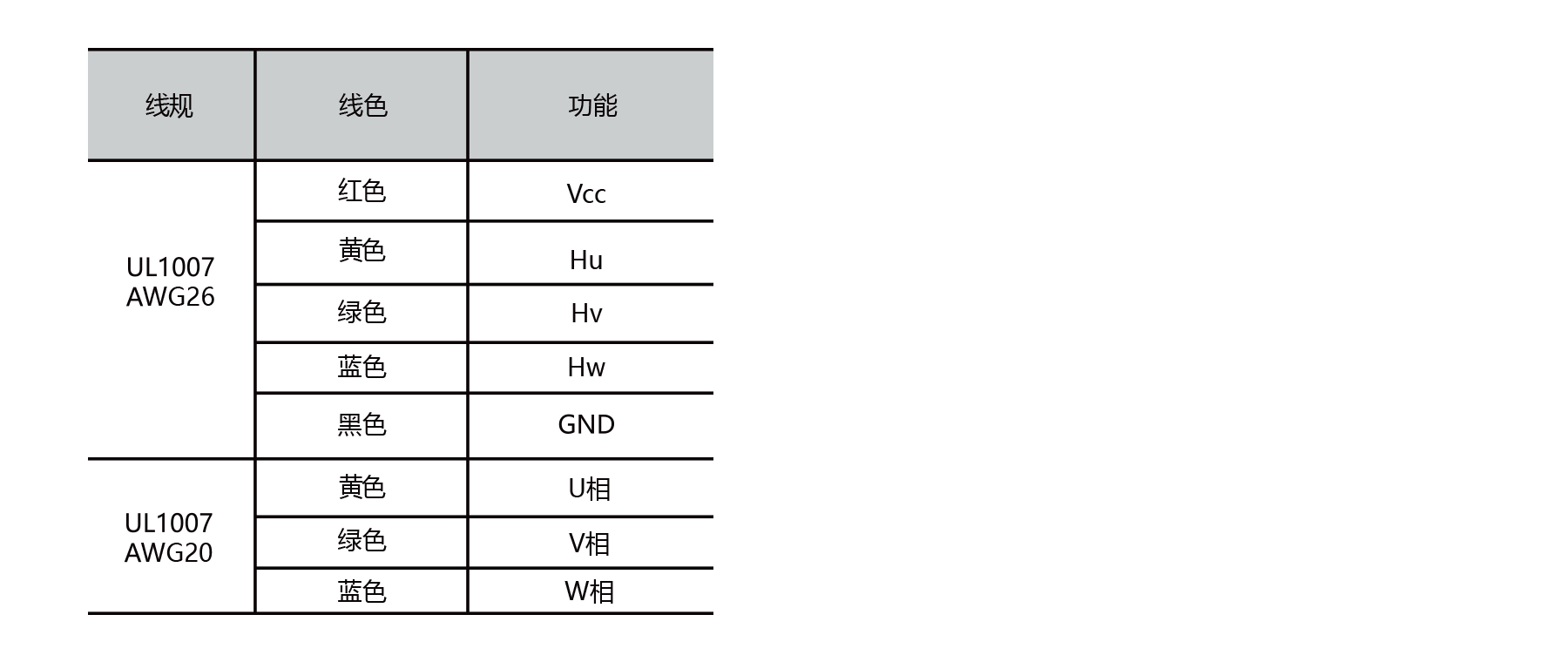

PBLS56HE 56mm BLDC motor winding and hall sensor wiring connection

Datasheet

Go back

Your message has been sent

Warning
Warning
Warning
Warning
Warning
Warning
Warning.

Similar Products

Ø52mm
PBLR52HE
Ø62mm
PBLR62HE
□56mm
PBLS56HE
Ø56mm
PBLR56GE

Companion Products

24-36VDC, 5A
PBLD-L3650D
24-36VDC, 15A
PBLD-L36150D
24-48VDC, 10A
PBLD-L48100D
