PBLR22HF

PBLR22HF

The PBLR22HF is a compact 24V BLDC motor delivering 10,000RPM and 0.019N·m torque. With low inertia, efficient power output (19.9W), and just 200g in weight, it’s ideal for small automation equipment and handheld precision tools.

Share This Product:

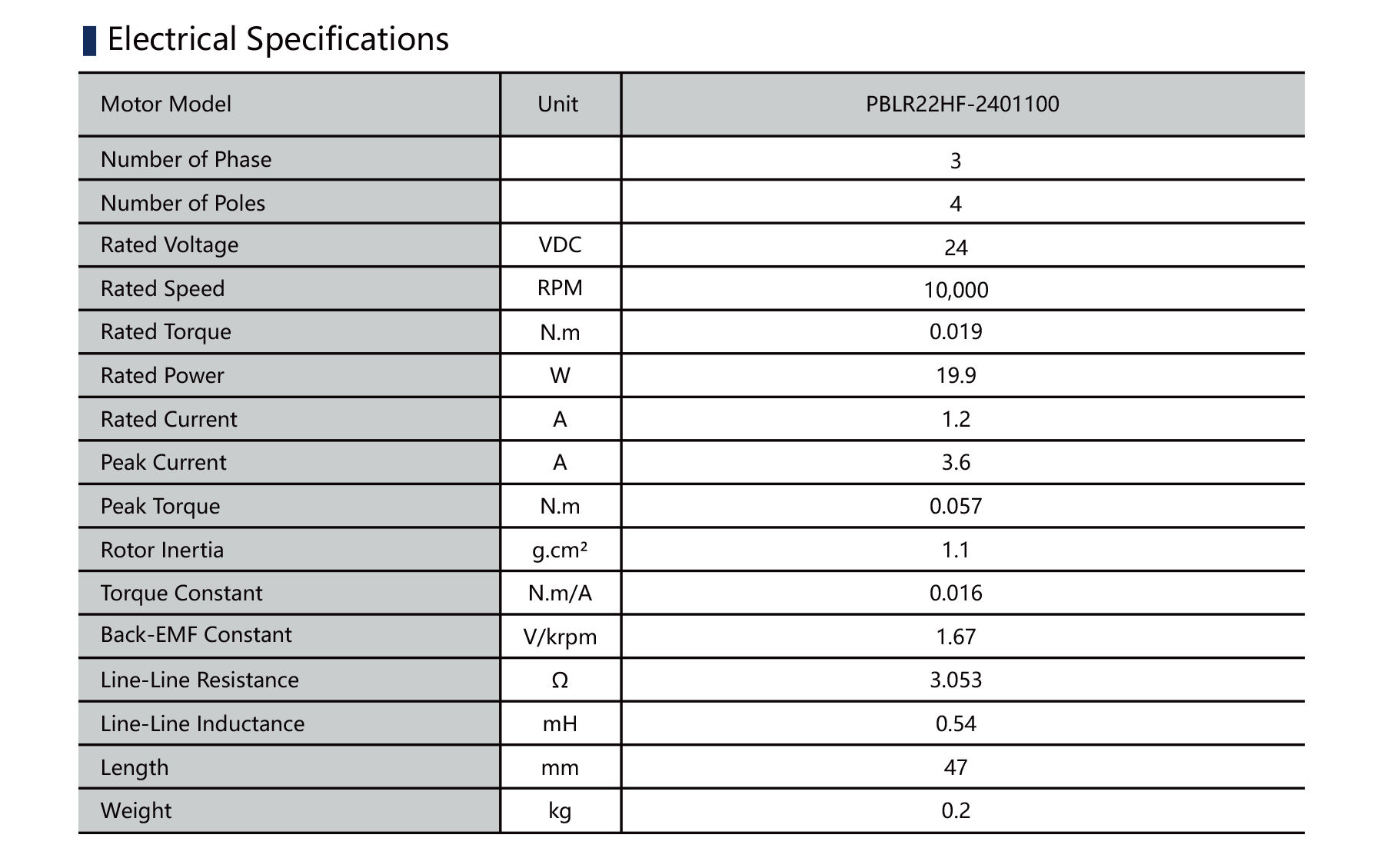

PBLR22HF dia.22mm round BLDC motor electrical specification

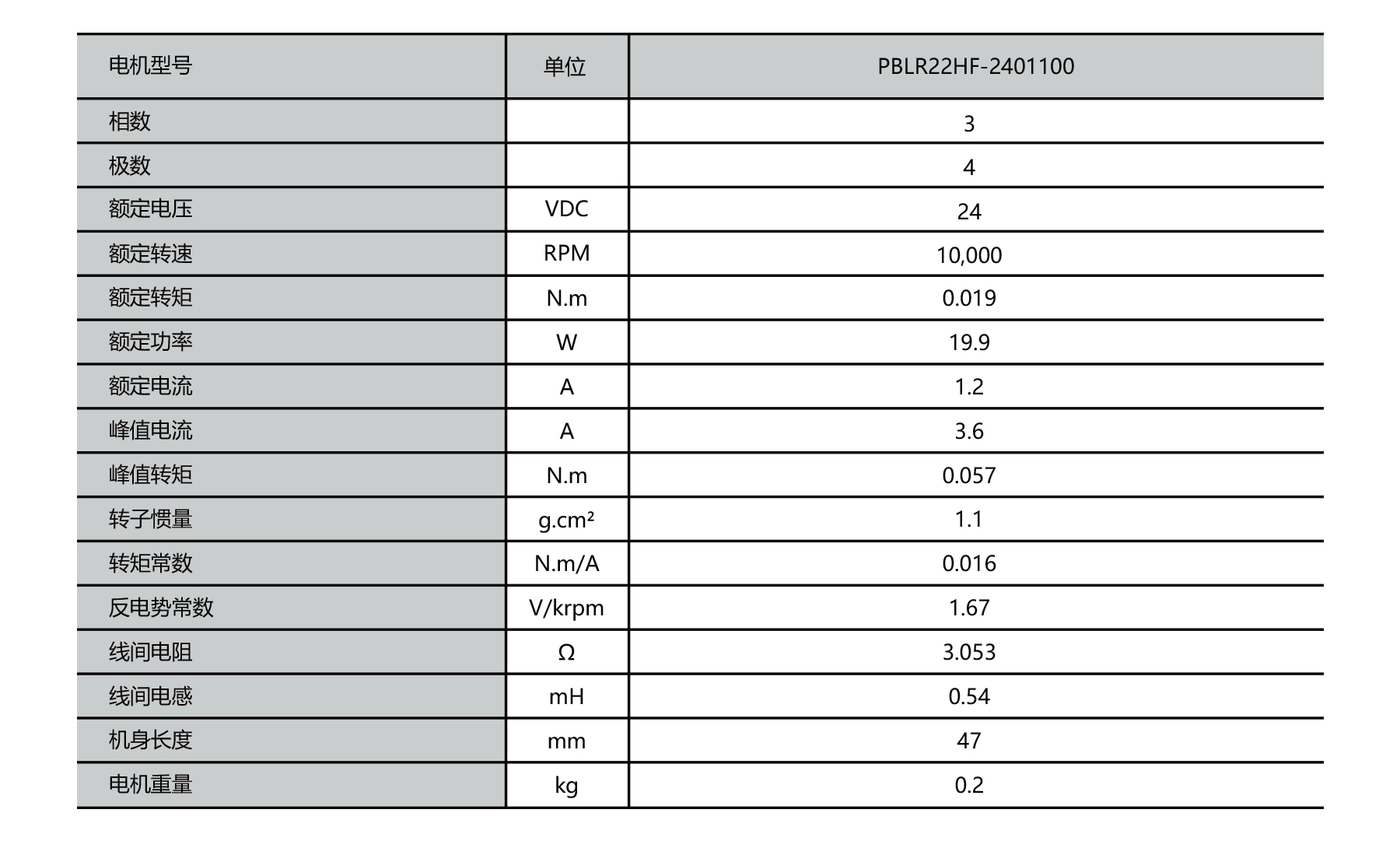

PBLR22HF dia.22mm round BLDC motor outline dimensions drawing

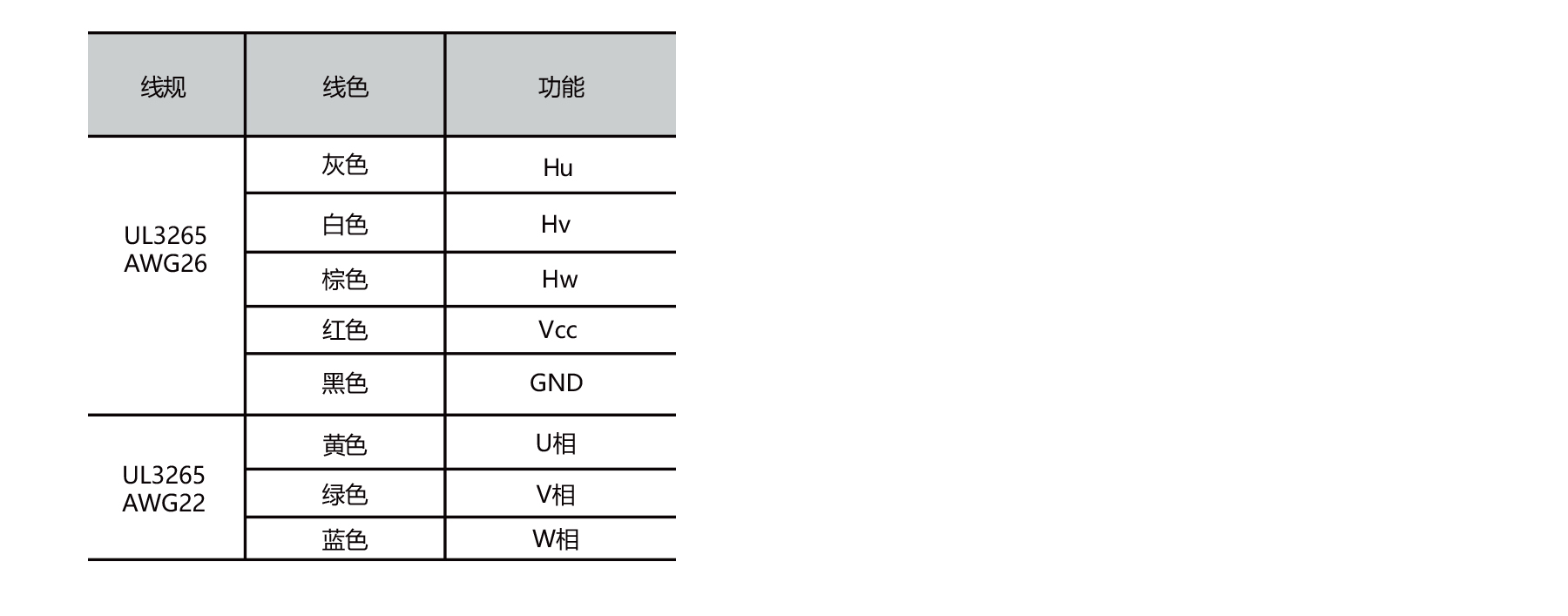

PBLR22HF dia.22mm round BLDC motor winding and hall sensor wiring connection

Datasheet
