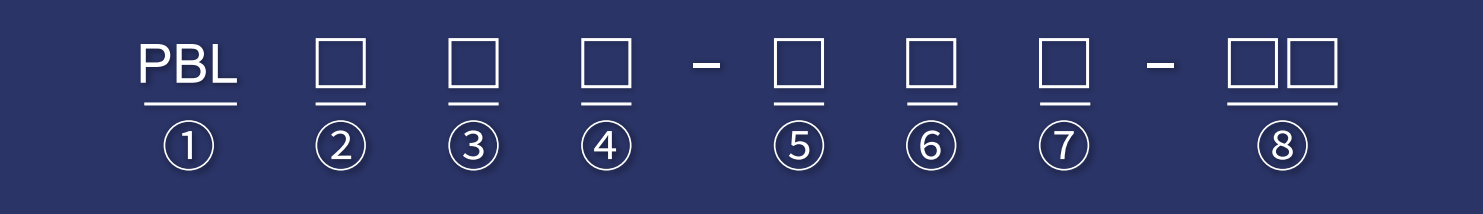

Part Number Naming Rule
Please follow the naming method below to correctly select the motor you need.
| ① PBL |
PrimoPal Brushless DC Motor |
| ② Frame Size Square |
S22:22x22mm |
S28:28x28mm |
S32:32x32mm |
S35:35x35mm |
| S42:42x42mm |
S57:57x57mm |
S60:60x60mm |
S70:70x70mm |
| S80:80x80mm |
S86:86x86mm |
S110:110x110mm |
S130:130x130mm |
| ③ Frame Size Round |
R16:Ø16mm |
R32:Ø32mm |
R42:Ø42mm |
R52:Ø52mm |
| R57:Ø57mm |
R62:Ø62mm |
R82:Ø82mm |
|
| ④ Motor Type |
H-Inner Rotor BLDC Motor |
P-IP65 Rated Series |
| G-Planetary Gearbox BLDC Motor |
D-BLDC Motor Drive Series |
| E-Outrunner BLDC Motor |
T-Integrated Brushless DC motor |
| F-Frameless Brushless DC Motor |
|
| ⑤ Number Of Magnet Poles |
F-4Poles |
T-10Poles |
B-12Poles |
M-22Poles |
| S-6Poles |
L-14Poles |
D-24Poles |
N-28Poles |
| E-8Poles |
H-16Poles |
C-20Poles |
|
| ⑥ Voltage |
24-24VDC |
36-36VDC |
48-48VDC |
310-220VAC |

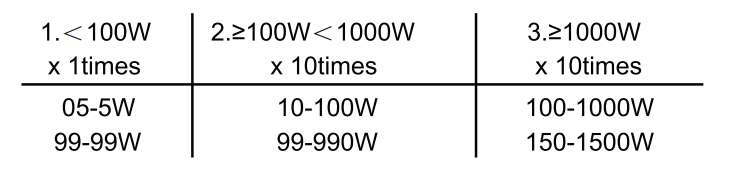

| ⑦ Power |
 |
| ⑧ Rated Speed |
30-3000RPM |
40-4000RPM |
| ⑨ Serial Number |
Serial Number |
