NEMA 8・1.8°・PHB20Y

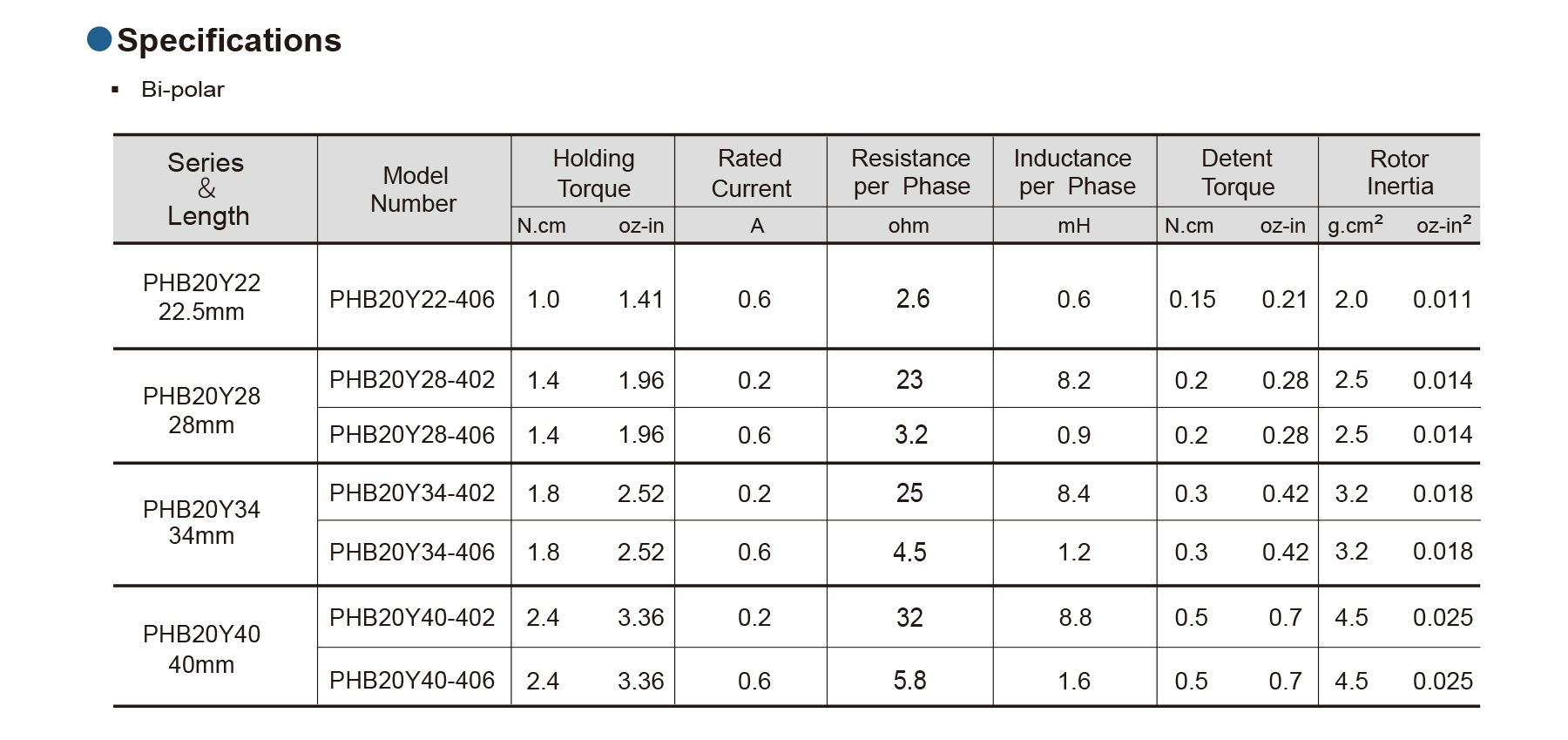

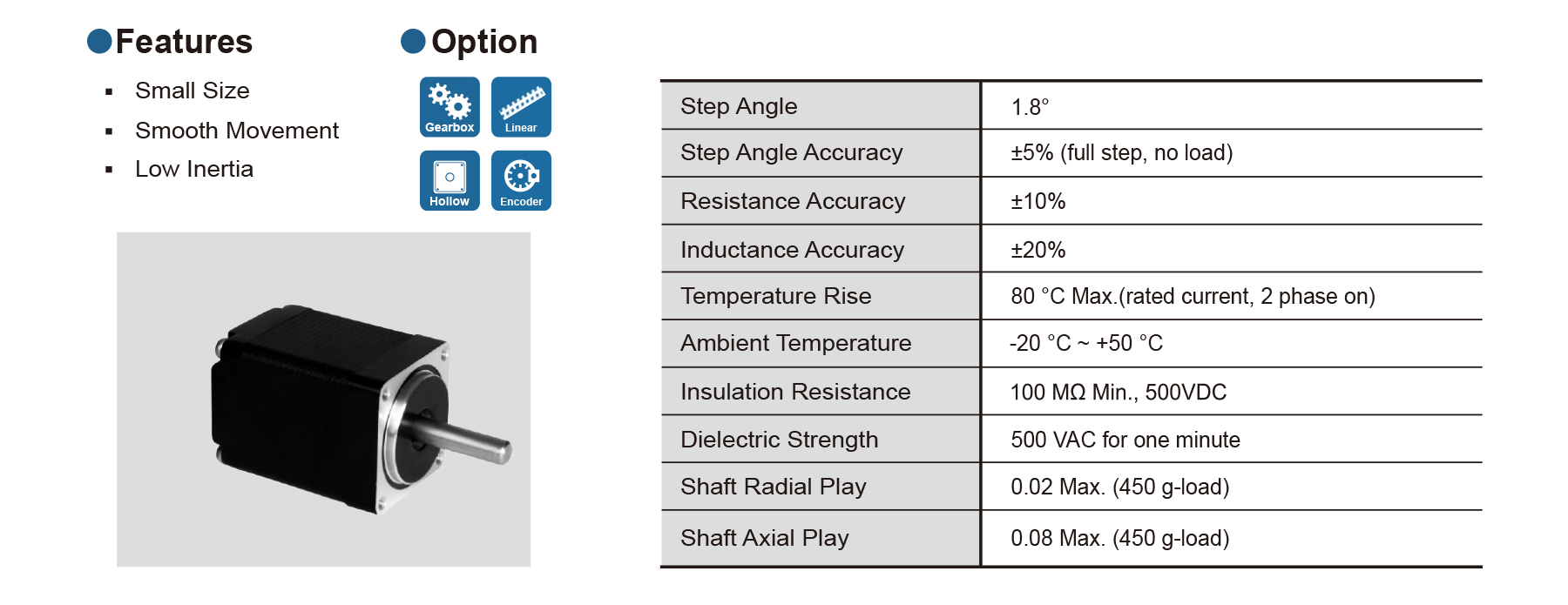

The PHB20Y Series hybrid stepper motors, NEMA 8, 1.8° step angle, ±5% accuracy, 2-phase options. Compact design, low inertia, and smooth movement with shaft radial/axial play ≤0.02/0.08 mm. Max temperature rise 80°C, ambient -20°C to 50°C. Insulation ≥100 MΩ, dielectric strength 500 VAC/1 min. Ideal for rotary automation, semi-conductor devices, precision machinery, and lead screw-driven positioning systems.
Datasheet
Graphic introduction
Software download
