NEMA 6 · 1.8° · PHB14Y

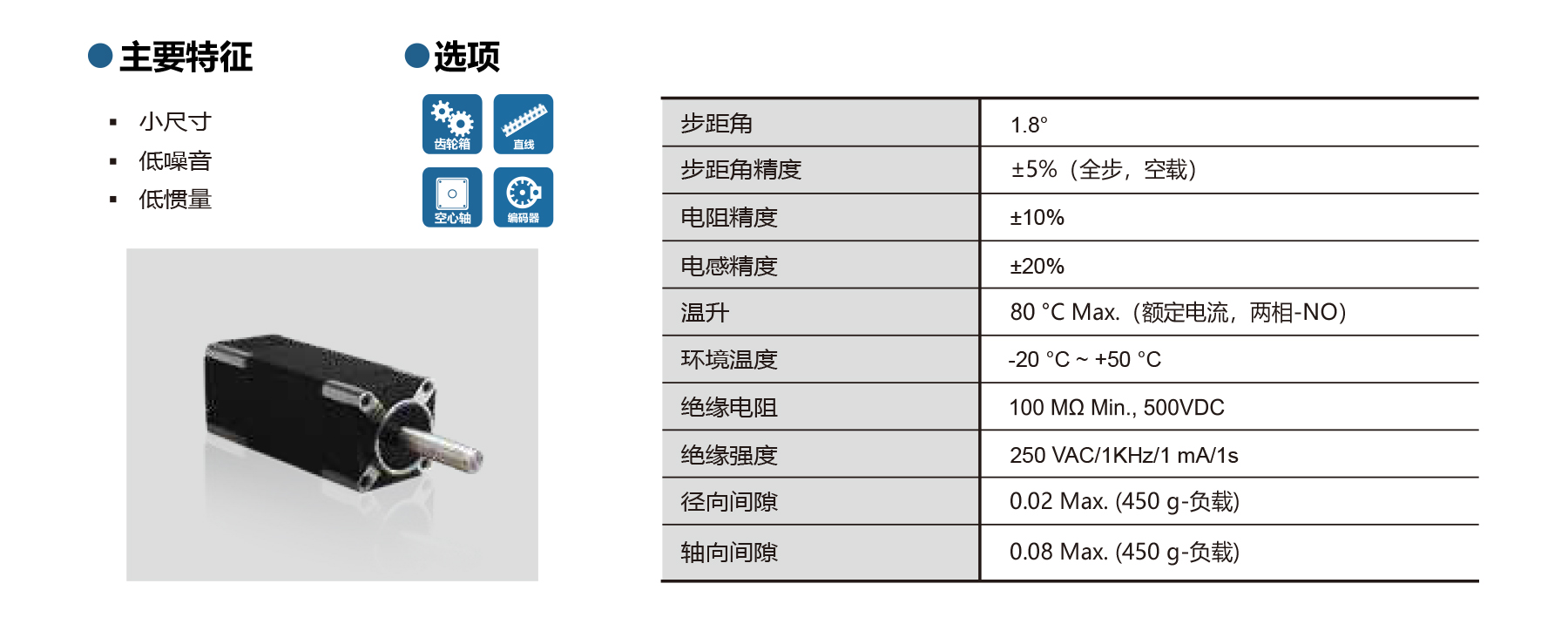

The PHB14Y Series hybrid stepper motors, NEMA 6, 1.8° step angle, ±5% accuracy, 2-phase options. Low noise, smooth motion, compact design. Shaft radial/axial play ≤0.02/0.08 mm, max temp rise 80°C. Reliable -20°C to 50°C, insulation ≥100 MΩ, 250 VAC dielectric. Ideal for rotary automation, medical equipment, precision machinery, and miniature devices.
Datasheet
