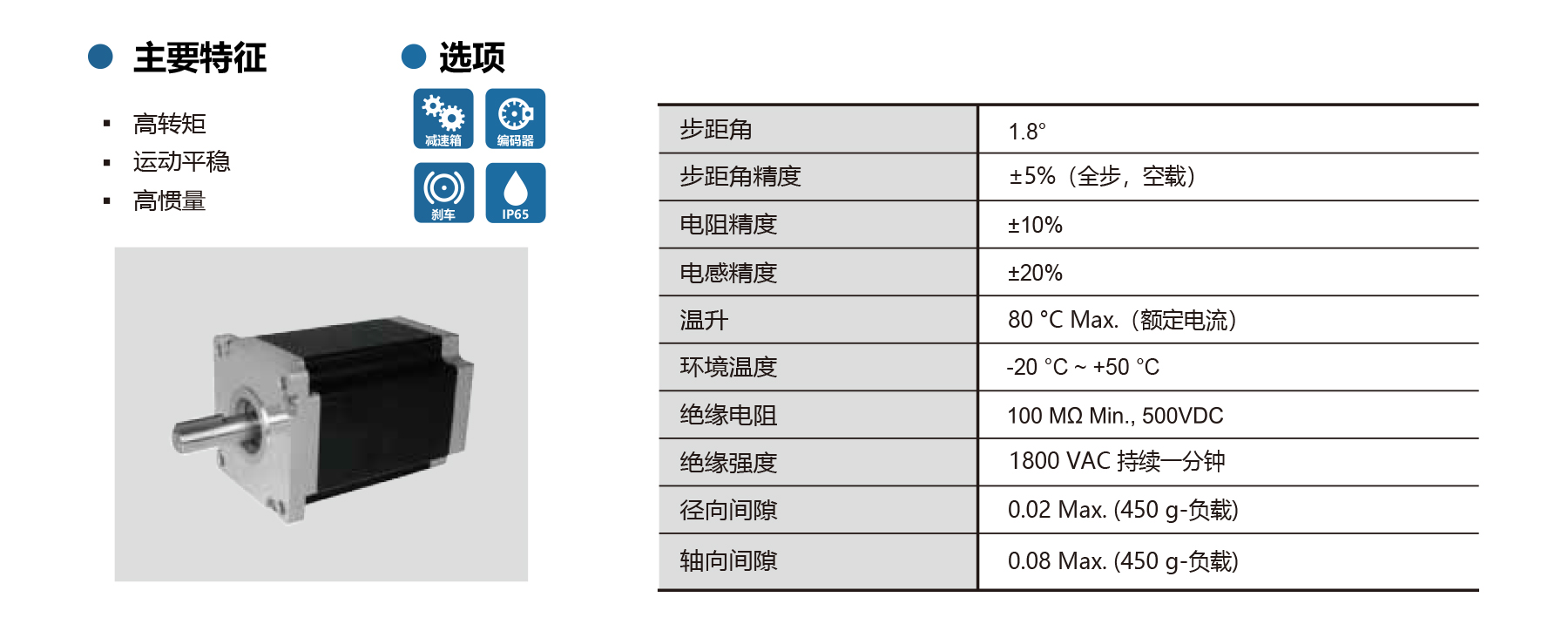

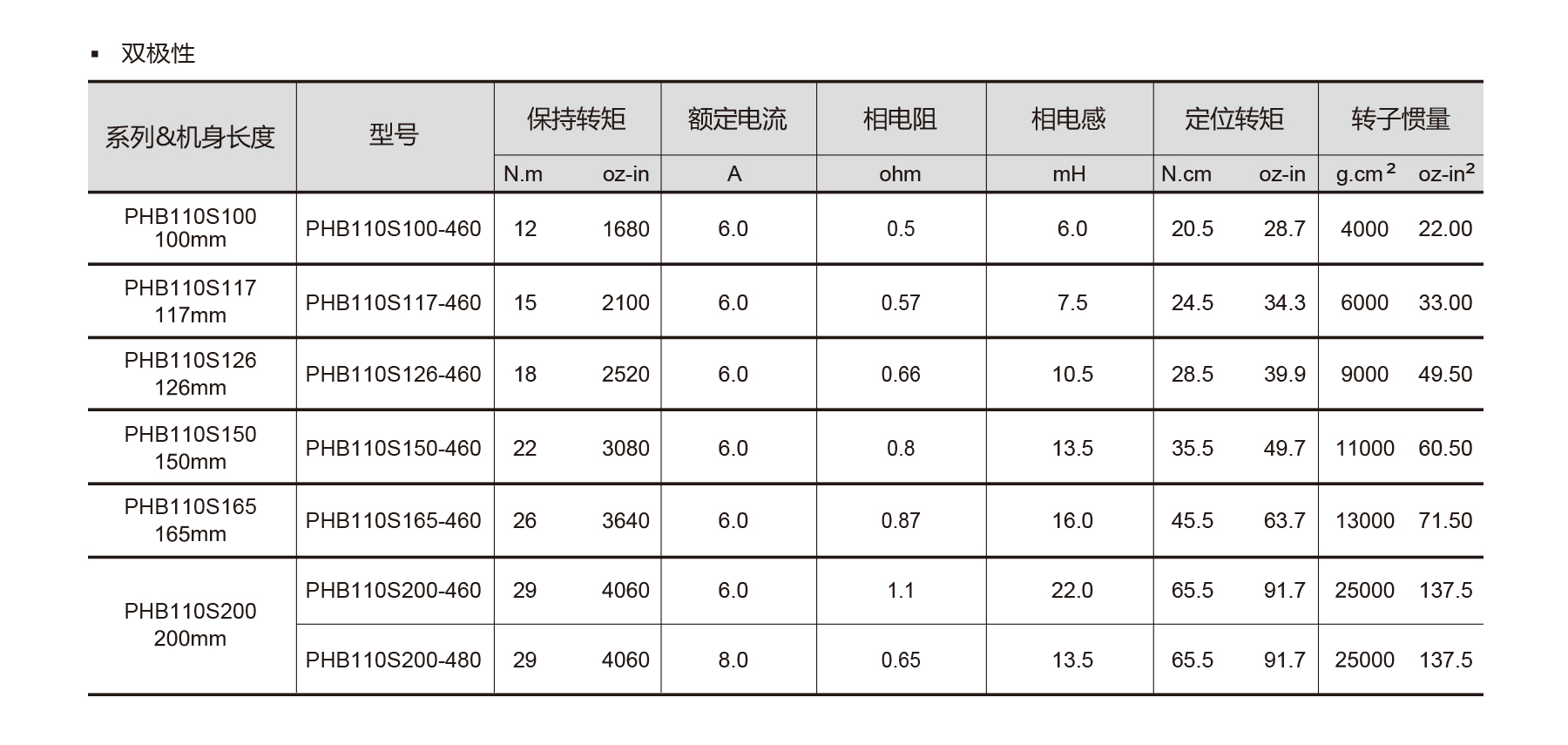

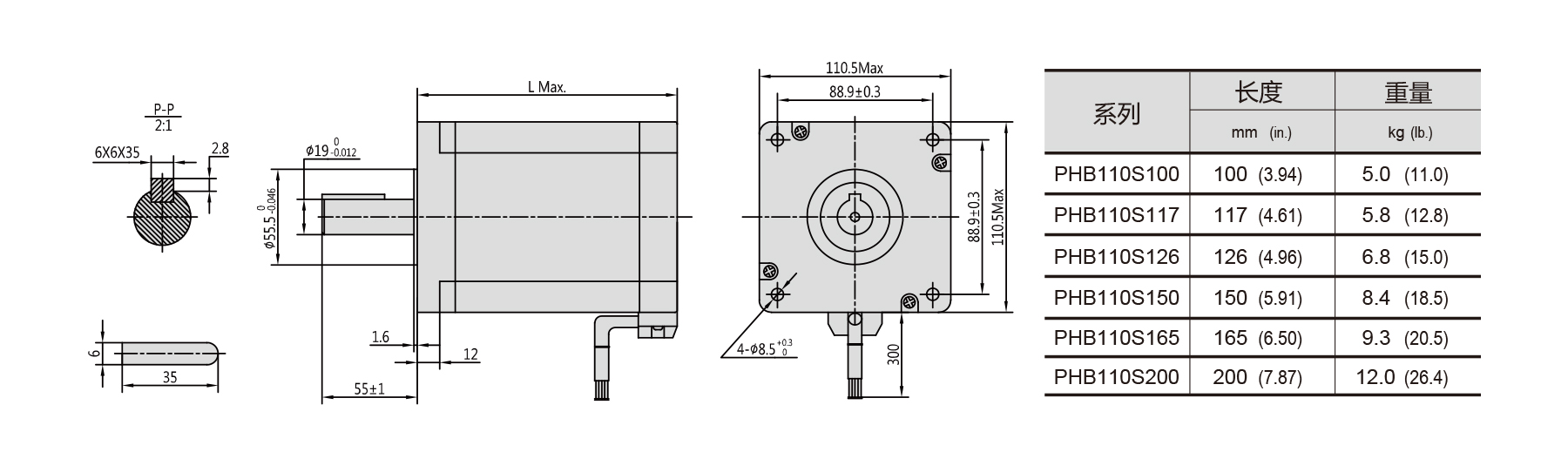

The PHB110S Series NEMA 42 2-phase stepper motors feature 1.8° step angle with ±5% full-step accuracy, high torque, and smooth, precise movement. Optional brake, encoder, gearbox available. Shaft radial/axial play ≤0.02/0.08 mm, temperature rise max 80°C, insulation ≥100 MΩ, dielectric strength 1800 VAC/1 min. Available in 100–200 mm lengths with bipolar wiring, these motors deliver reliable performance for CNC machines, engraving equipment, industrial automation, and industrial equipment requiring high torque, high inertia, and low noise.
