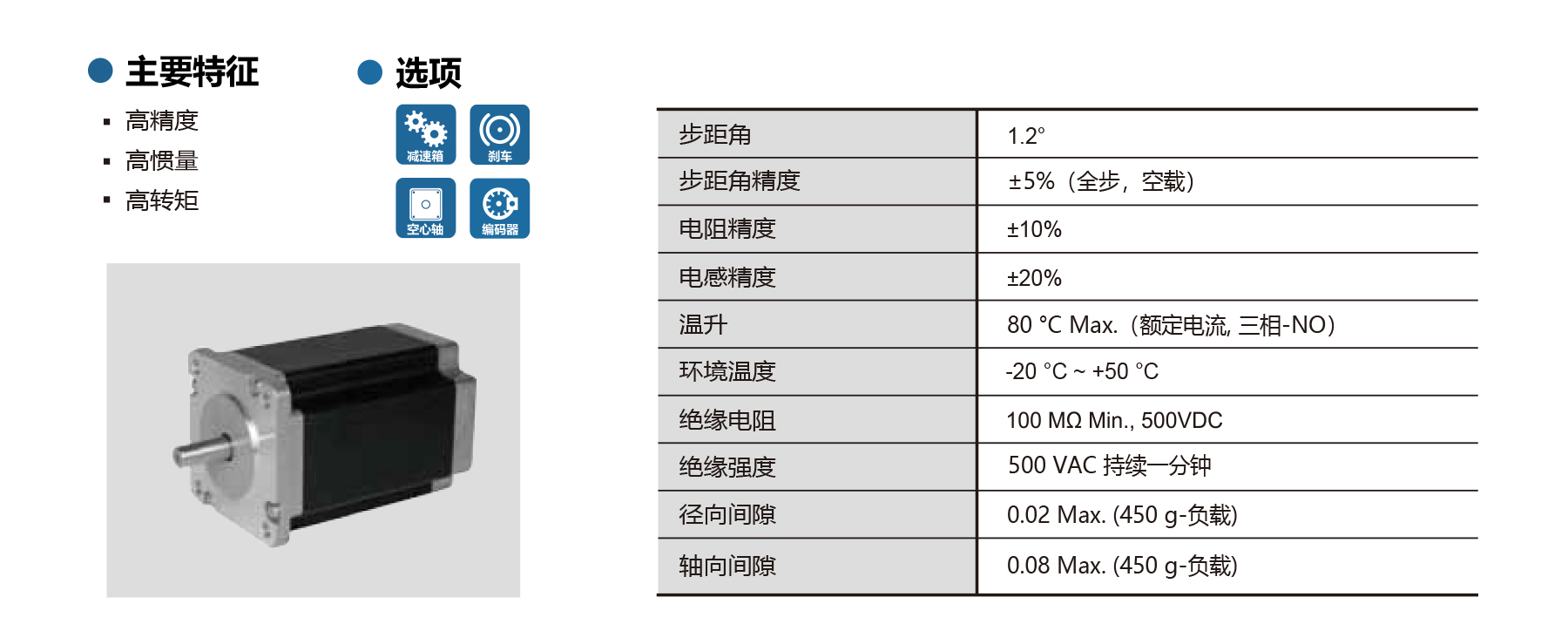

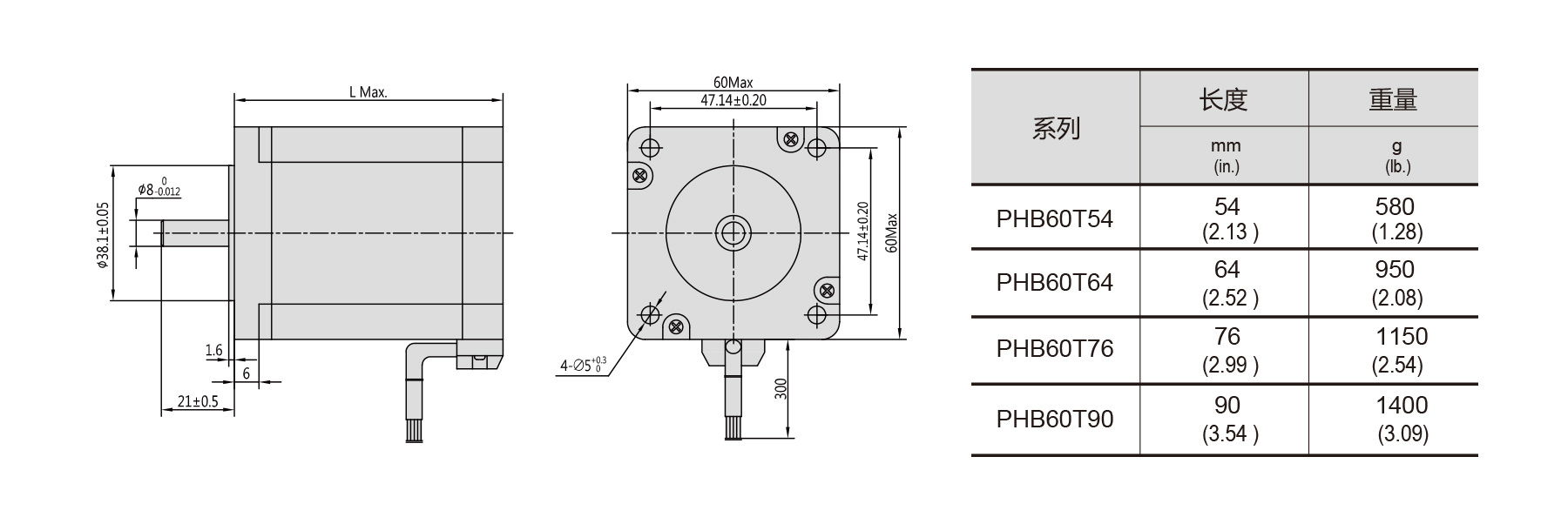

The PHB60T Series NEMA 24 3-phase stepper motors offer a precise 1.2° step angle with ±5% full-step accuracy, delivering high torque and smooth motion for medium-sized applications. Featuring low inertia, optional brake, encoder and gearbox, and robust construction, these motors operate reliably within -20°C to +50°C with a max 80°C temperature rise. Insulation resistance ≥100 MΩ, dielectric strength 500 VAC/1 min, and minimal shaft radial/axial play (0.02/0.08 mm) ensure long-term stability. Available in lengths from 54 mm to 90 mm, PHB60T motors are ideal for CNC machines, automation equipment, and other precision motion systems requiring dependable 3-phase stepper performance.
