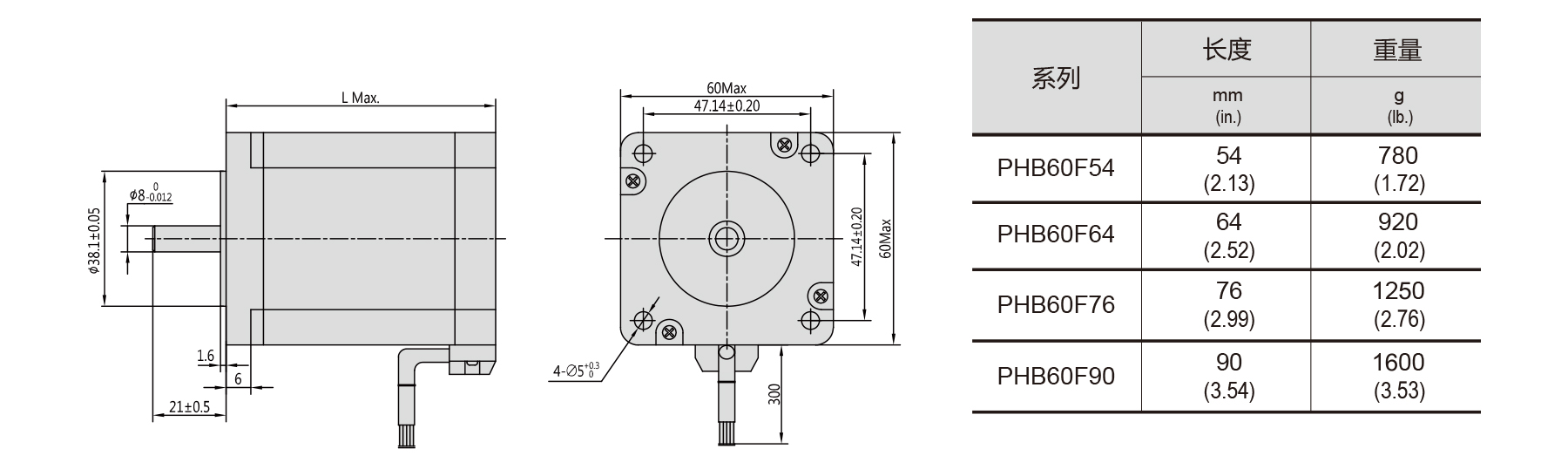

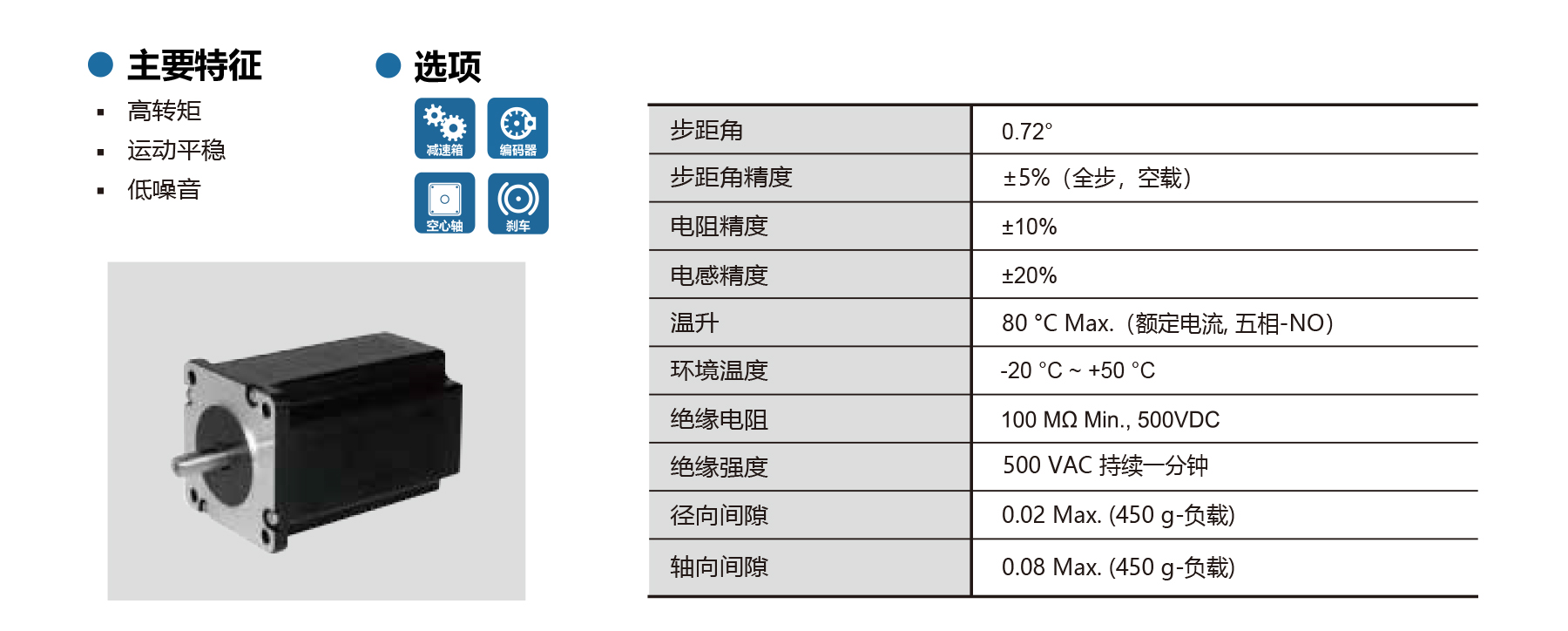

The PHB60F Series NEMA 24 5-phase stepper motors deliver high torque and smooth 0.72° step movement with ±5% full-step accuracy. Engineered for low-noise, precise operation, these motors are ideal for CNC machines, and automation systems. Rated for 5-phase operation, they feature a maximum temperature rise of 80°C, insulation resistance ≥100 MΩ, and dielectric strength of 500 VAC for 1 minute. Shaft radial and axial play are strictly controlled at 0.02 mm and 0.08 mm. Available in multiple lengths (54–90 mm) with 5-wire connections, PHB60F motors provide reliable, high-precision performance for demanding applications.
