NEMA 23・1.8°・PHB57S

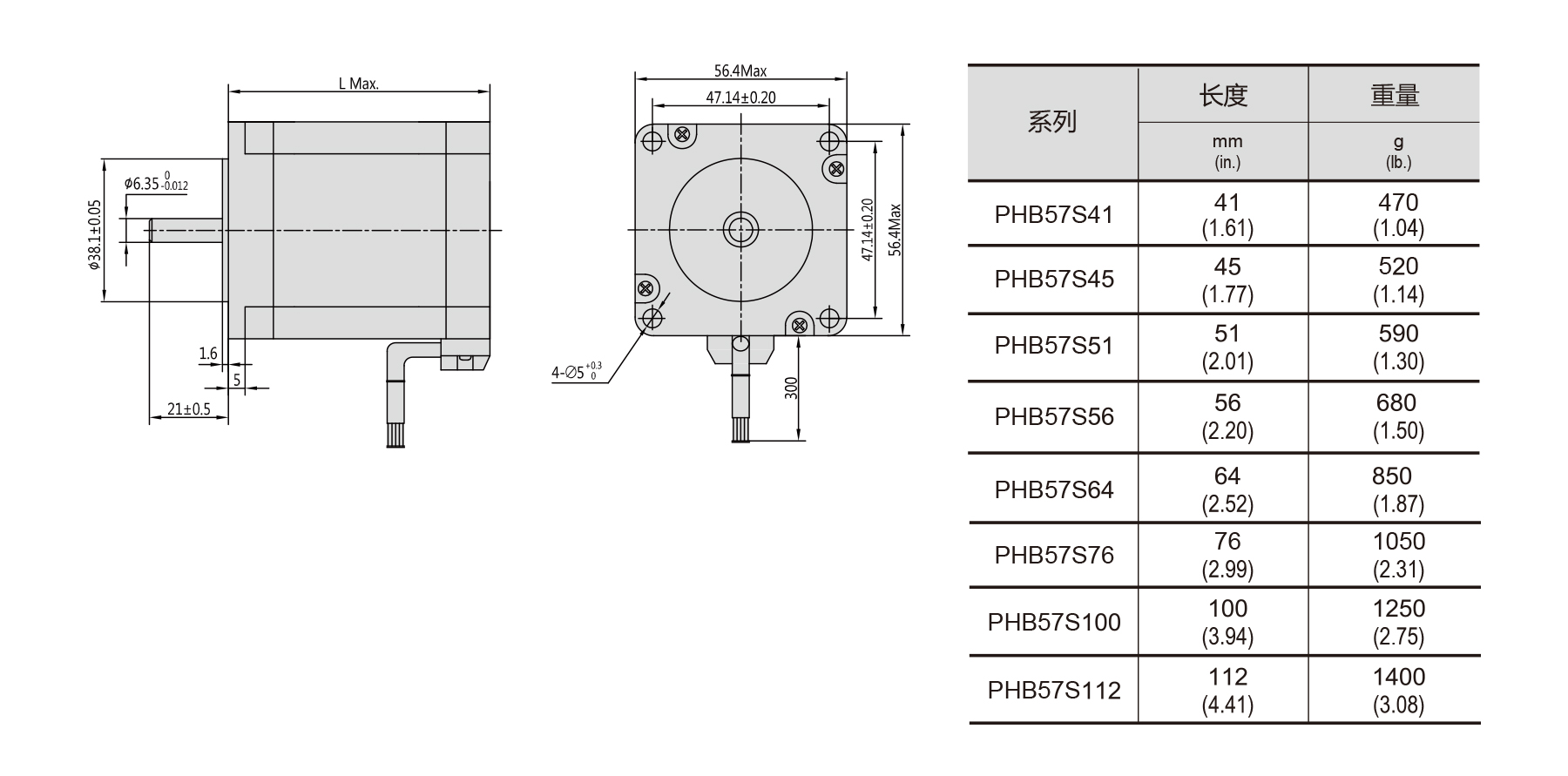

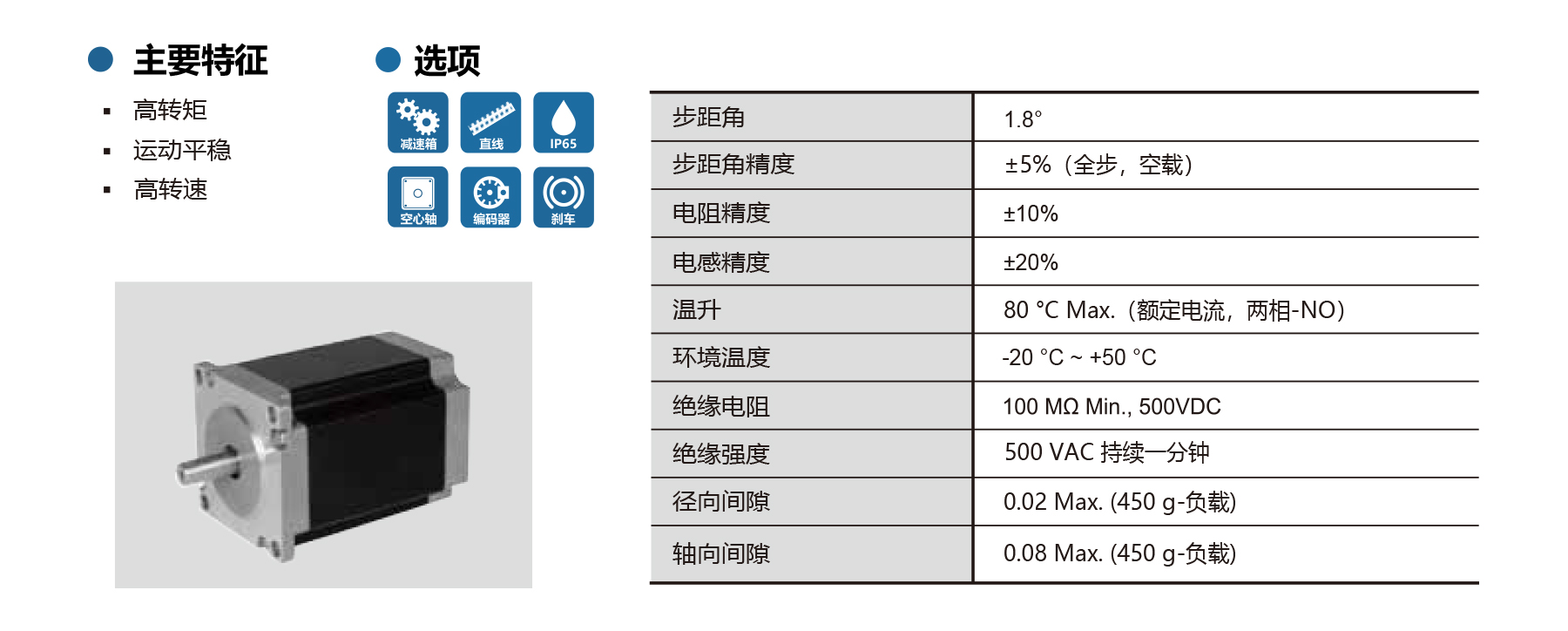

The PHB57S Series NEMA 23/57 2-phase stepper motors offer 1.8° step angle with ±5% full-step accuracy, high torque, smooth movement, and high-speed performance. Optional brake, encoder, gearbox available. Shaft radial/axial play ≤0.02/0.08 mm, max temperature rise 80°C, insulation ≥100 MΩ, dielectric strength 500 VAC/1 min. Available in 41–112 mm lengths, these motors provide reliable, precise motion control for CNC machines, HVAC, industrial automation, and other industrial applications requiring high torque and stable operation.
Datasheet
