NEMA 23・1.8°・PHB57K

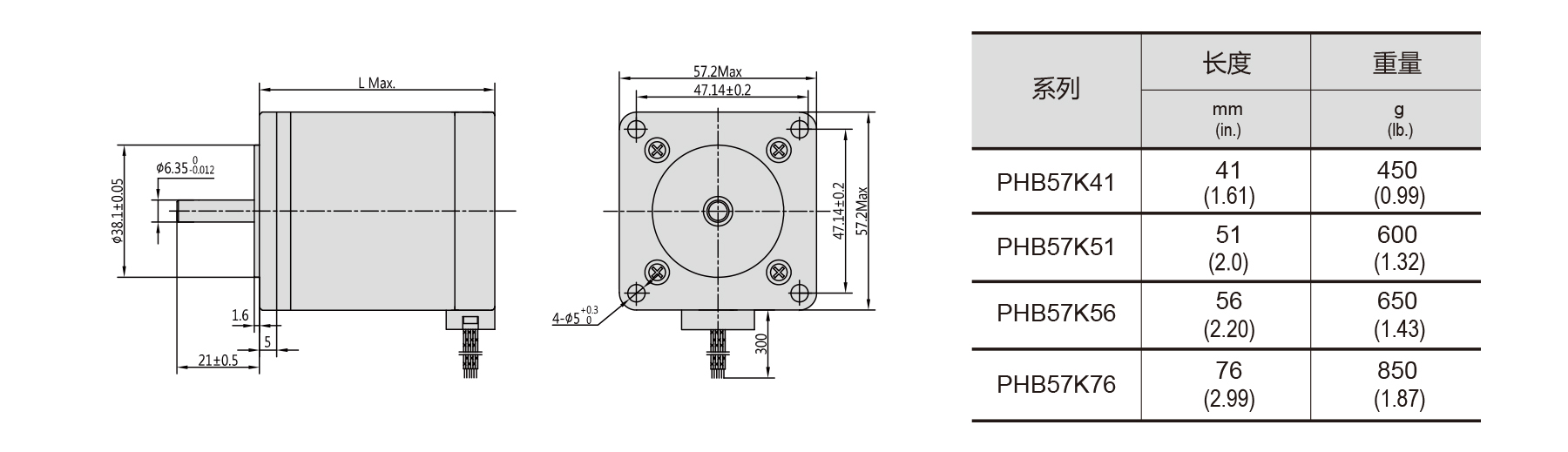

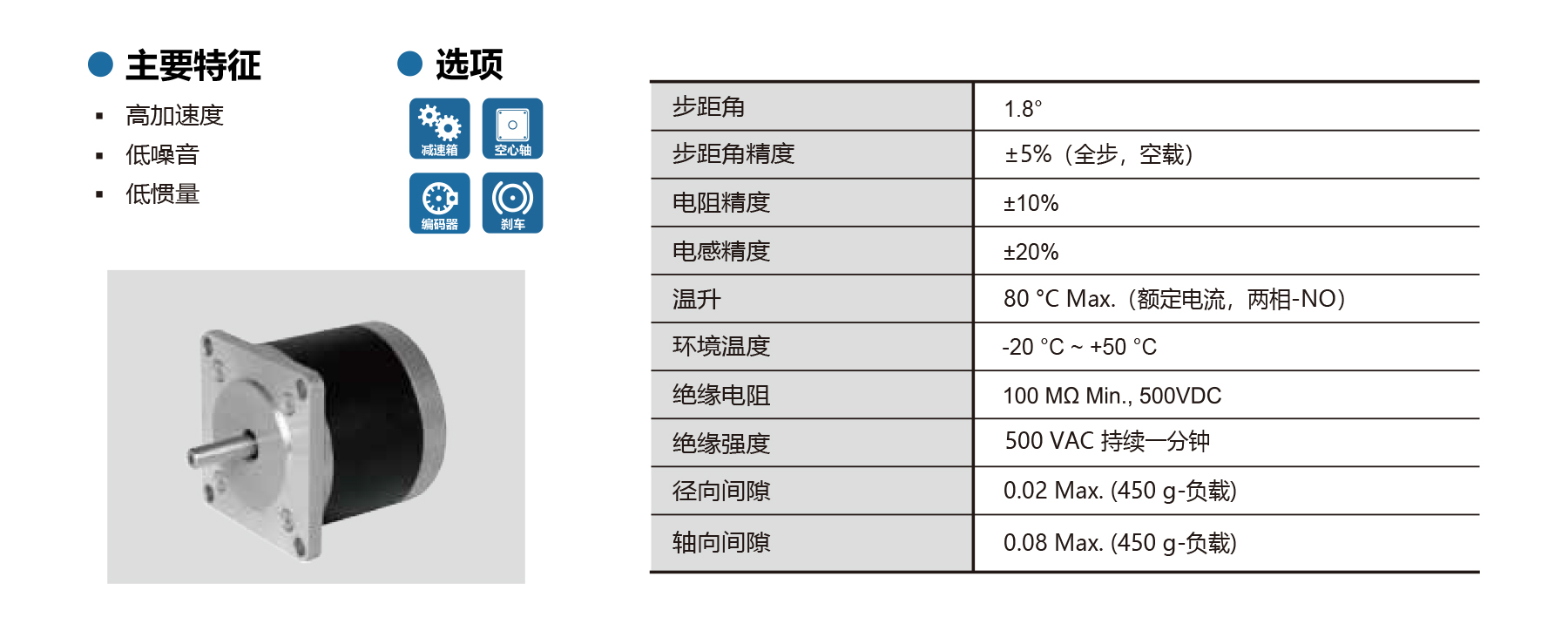

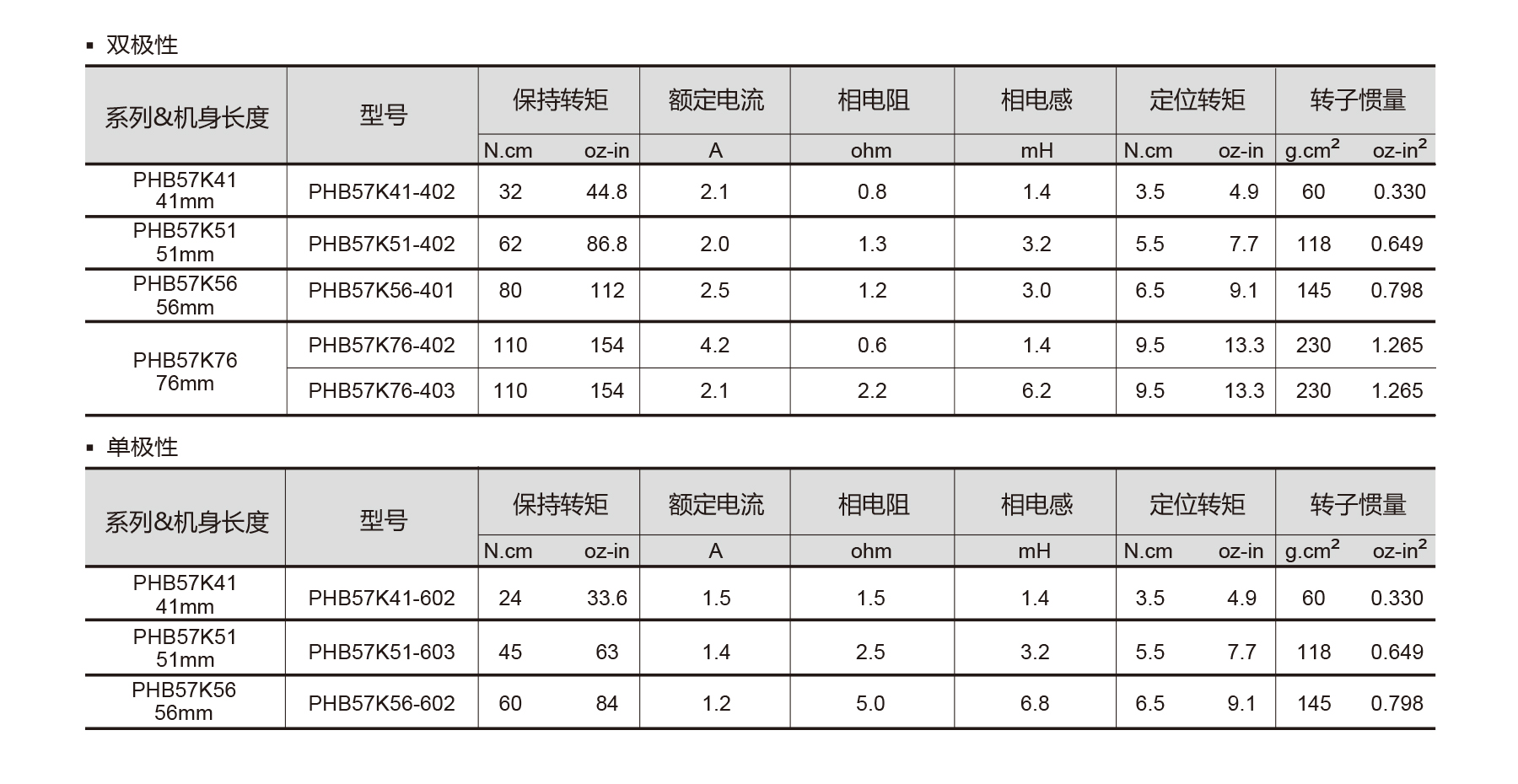

The PHB57K Series NEMA 23 2-phase round stepper motors feature 1.8° step angle with ±5% accuracy, high acceleration, low noise, and low inertia. Compact yet powerful, with optional brake. Shaft radial/axial play ≤0.02/0.08 mm, max temperature rise 80°C, insulation ≥100 MΩ, dielectric strength 500 VAC/1 min. Available in 41–76 mm lengths, delivering high holding torque for CNC machines, textile equipment, and automated equipment requiring precise and reliable motion control.
Datasheet
