NEMA 17・3.6°・PHB42E

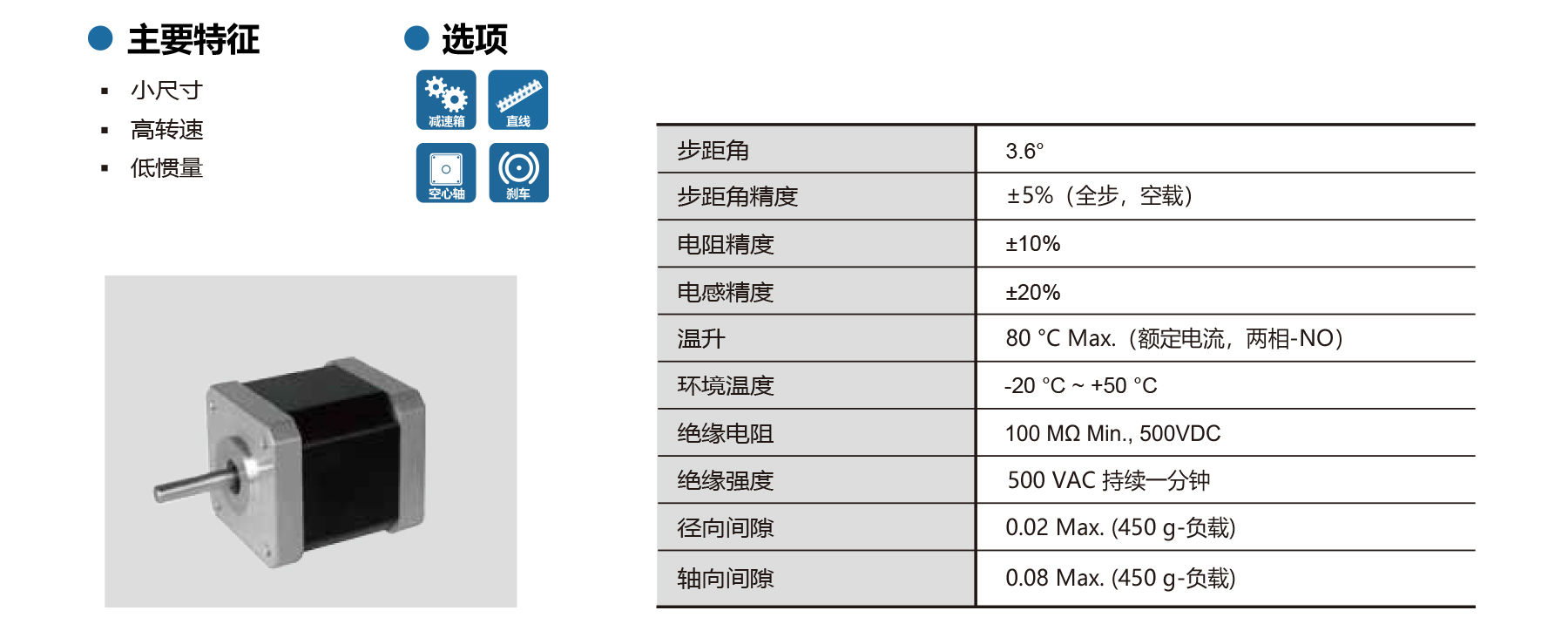

The PHB42E Series hybrid stepper motors, NEMA 17, 3.6° step angle, ±5% accuracy, 2-phase configuration. Compact, high-speed, low-inertia design with smooth movement and optional brake. Shaft radial/axial play ≤0.02/0.08 mm, max temperature rise 80°C, operating from -20°C to 50°C. Insulation ≥100 MΩ, dielectric strength 500 VAC/1 min. Ideal for rotary and linear automation, packing machines, precision machinery, and lead screw-driven systems.
Datasheet
