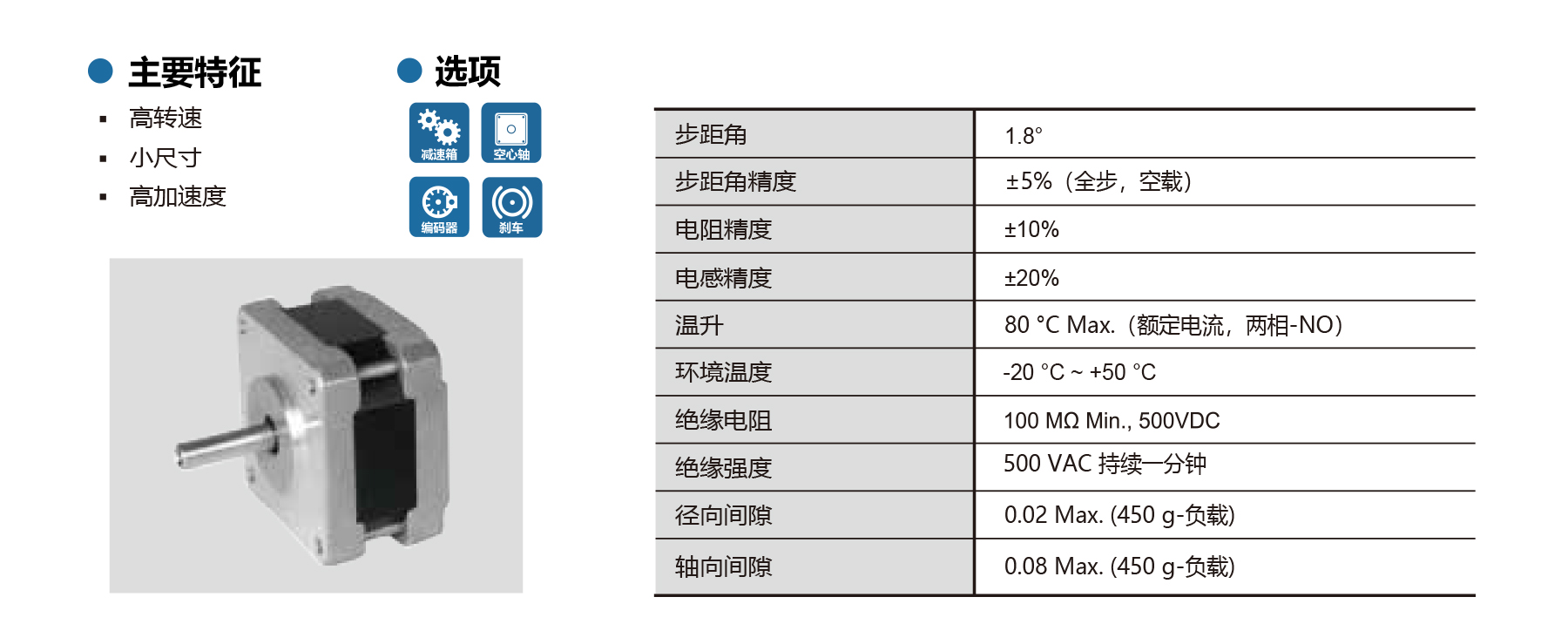

The PHB39Y Series hybrid stepper motors, NEMA 16, 1.8° step angle, ±5% accuracy, 2-phase configuration. Compact, high-speed design with smooth movement, high acceleration, and optional gearbox, encoder, and brake. Shaft radial/axial play ≤0.02/0.08 mm, max temperature rise 80°C, operating from -20°C to 50°C. Insulation ≥100 MΩ, dielectric strength 500 VAC/1 min. Ideal for rotary and linear automation, analyzing instruments, precision machinery, and lead screw-driven positioning systems.
