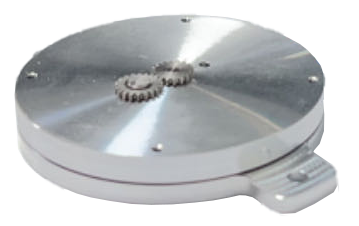

Ø36mm・0.9°・PHF36M
The PHF36M Series Ø36 mm Pancake Stepper Motor offers a 0.9° step angle (±5%), ultra-flat 13.7–19.5 mm length, torque up to 19.6 N·cm, and 0.3–1.2 A rated current. Low noise and smooth motion make it ideal for precision PTZ cameras, and compact automation systems.
Datasheet
Similar Products
Ø36mm · 1.8° · PHF36K
Companion Products
PST2204P, 2 Phase
0.2-1.6A, 18-36VDC
PST2204PD, 2 Phase
0.2-1.6A, 18-36VDC
PSR2204M, 2 Phase
0.2-1.6A, 18-36VDC
PSH2204R, RS485
1.5A Max., 24-36VDC
