NEMA 6・PHBL14

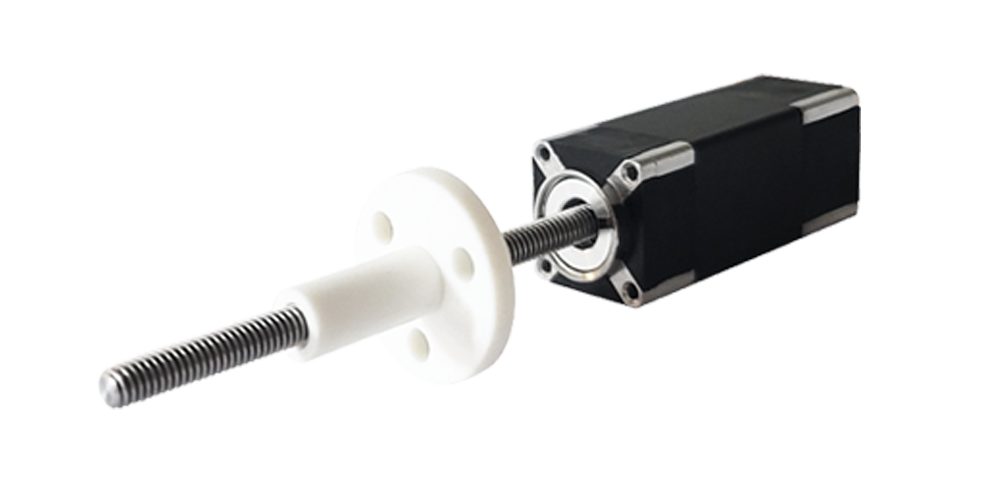

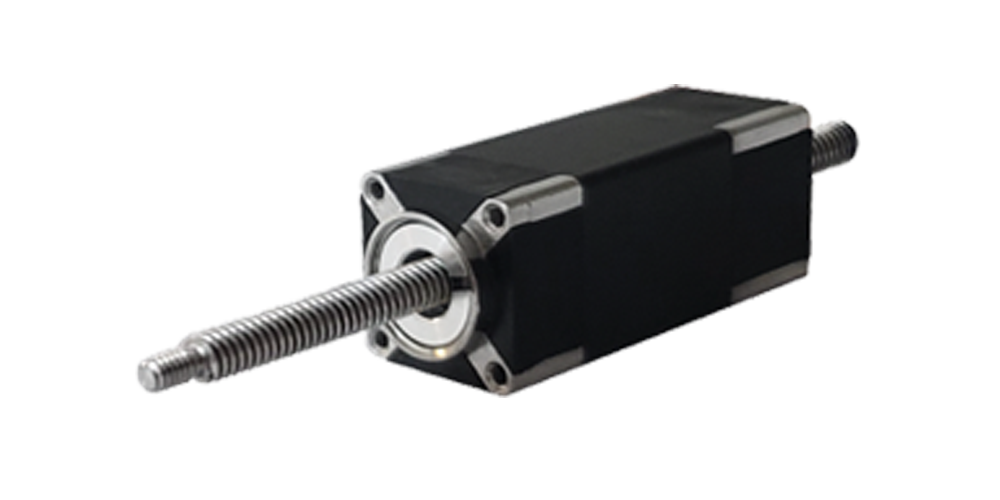

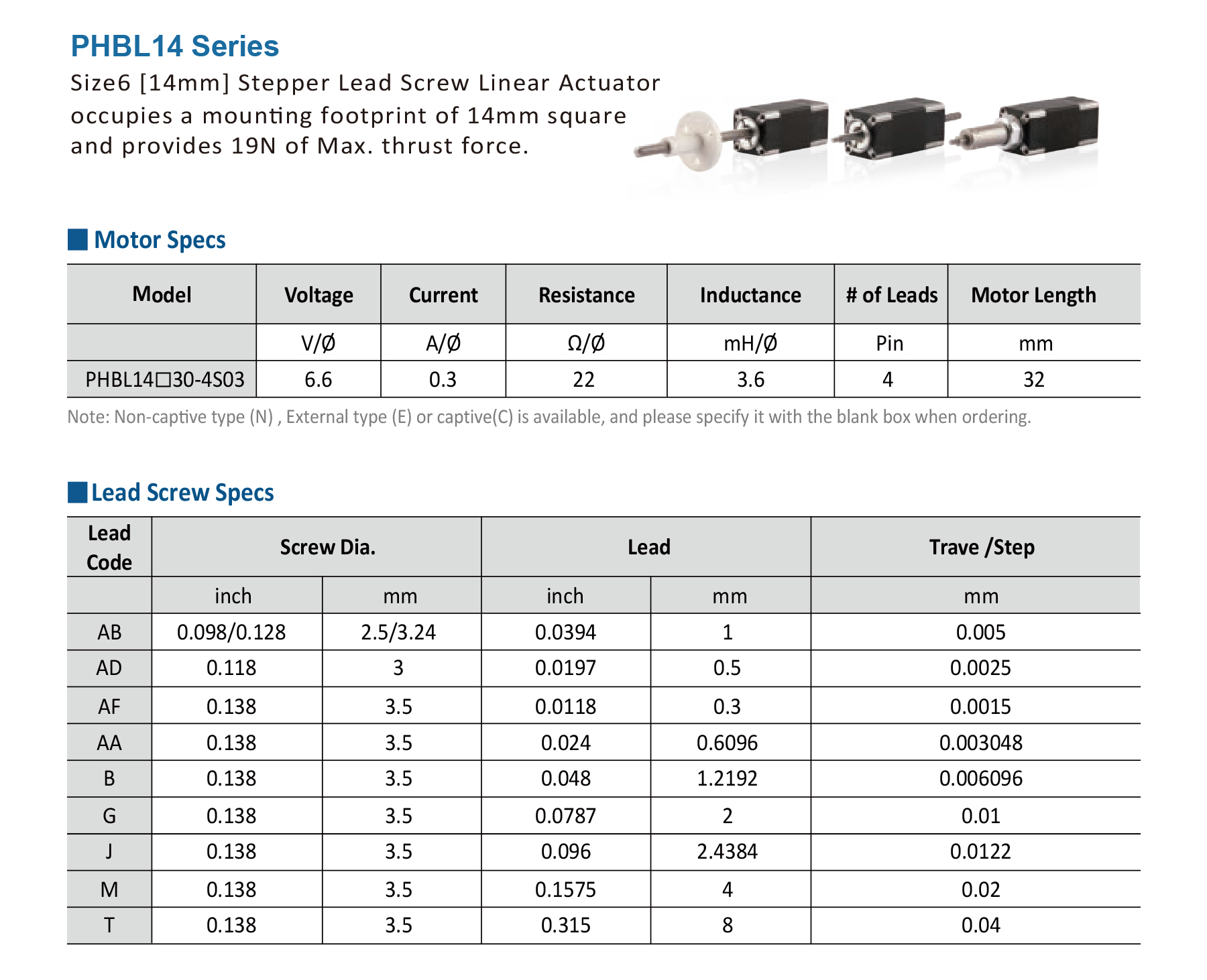

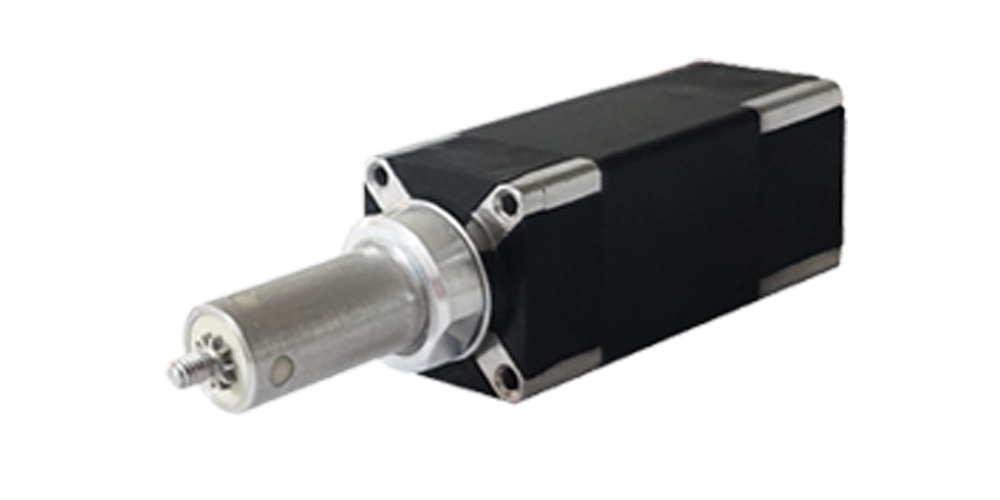

Compact PHBL14 Series NEMA 6 stepper linear actuator with 14 mm square frame delivers up to 19 N max thrust. Voltage 6.6 V, 0.3 Ω resistance, 3.6 mH inductance, 4-lead design. Available in non-captive, external, or captive types for precision automation, medical, and optical systems.
Datasheet
