NEMA 23・PHBS57

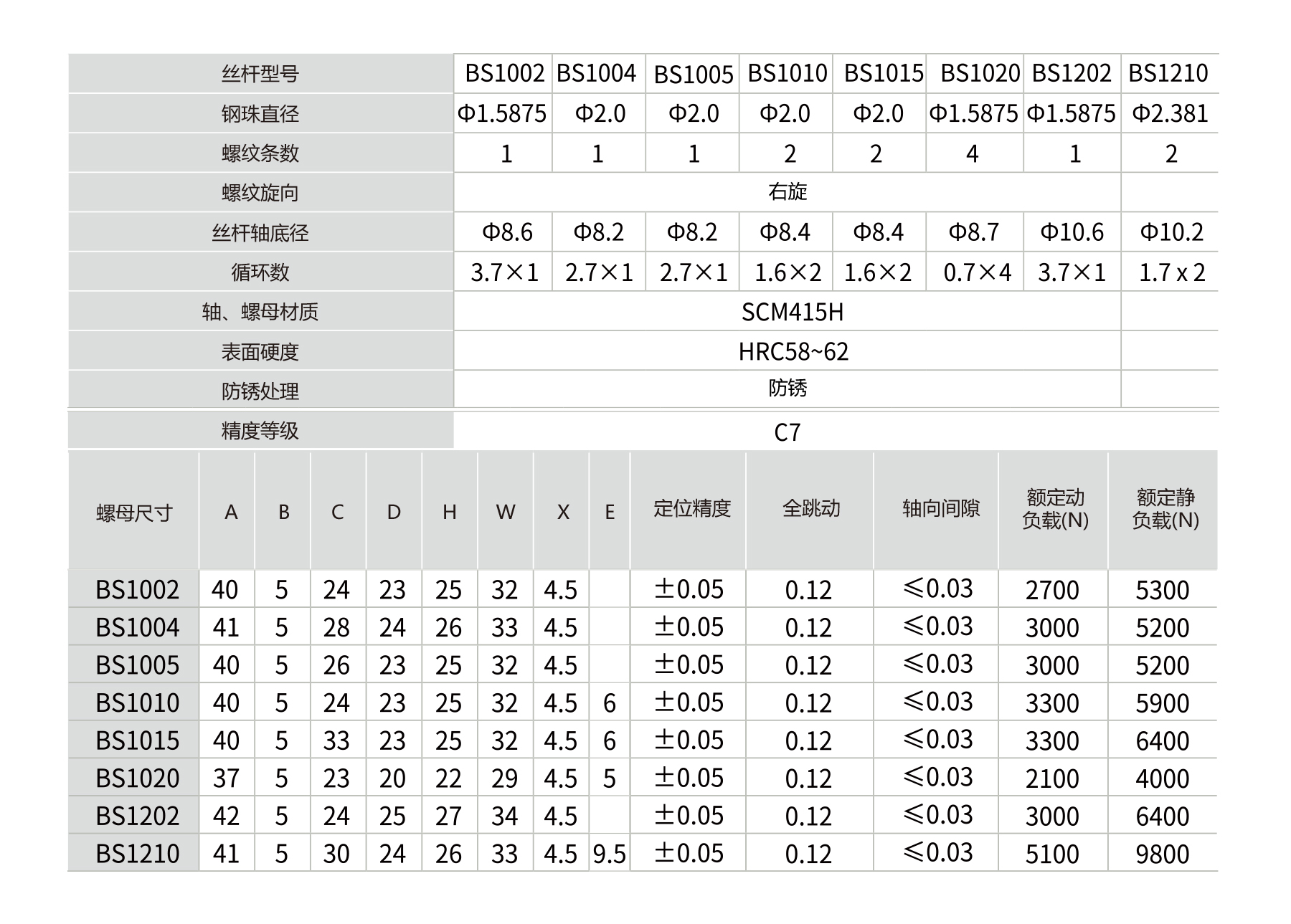

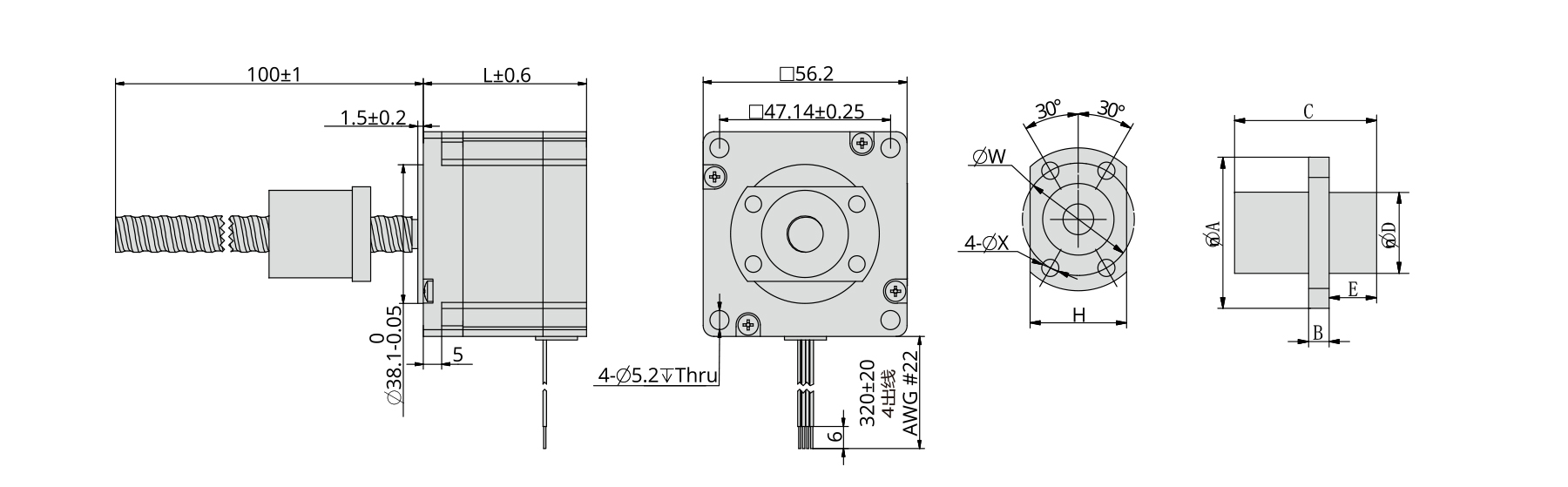

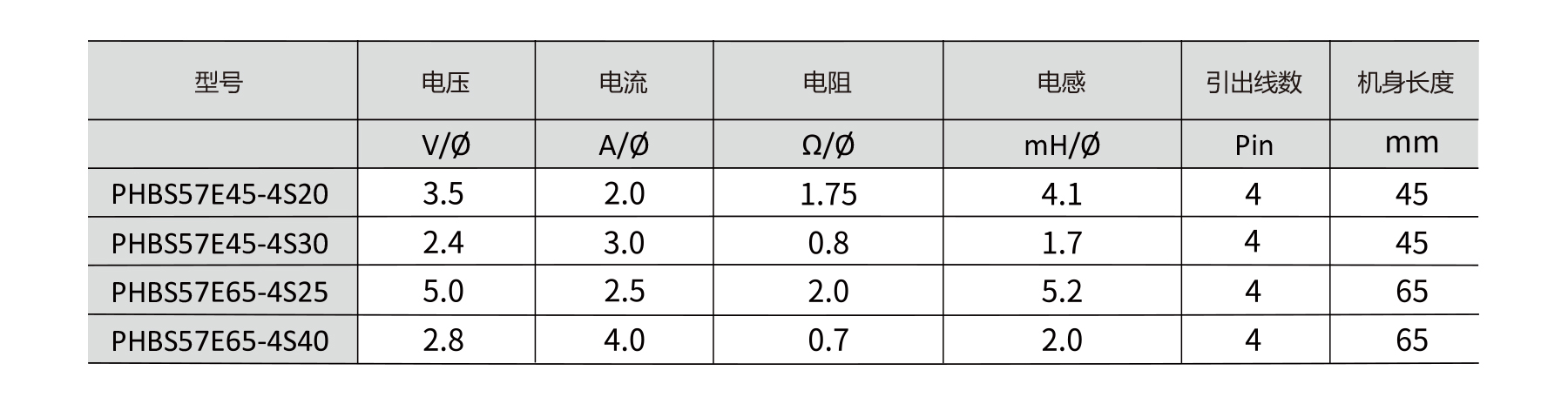

PHBS57 Series 57 mm stepper motors with integrated ball screw provide high-precision linear motion. Rated current 2–5 A, 4-lead configuration, motor length 45–65 mm. Ball screw diameters Φ10.0 or 12.0 mm, right-hand thread, shaft & nut SCM415H, HRC58–62, anti-rust treated. Ideal for CNC, robotics, linear actuators, and automated machinery applications.
Datasheet
