NEMA 23・PHBL57
PHBL57 Series NEMA 23 stepper lead screw linear actuator delivers powerful thrust for heavy-duty motion control. Current 0.8–4.0 A, multiple leads and travel length options. Available in non-captive, external, or captive types for CNC machinery, robotics, and industrial automation.

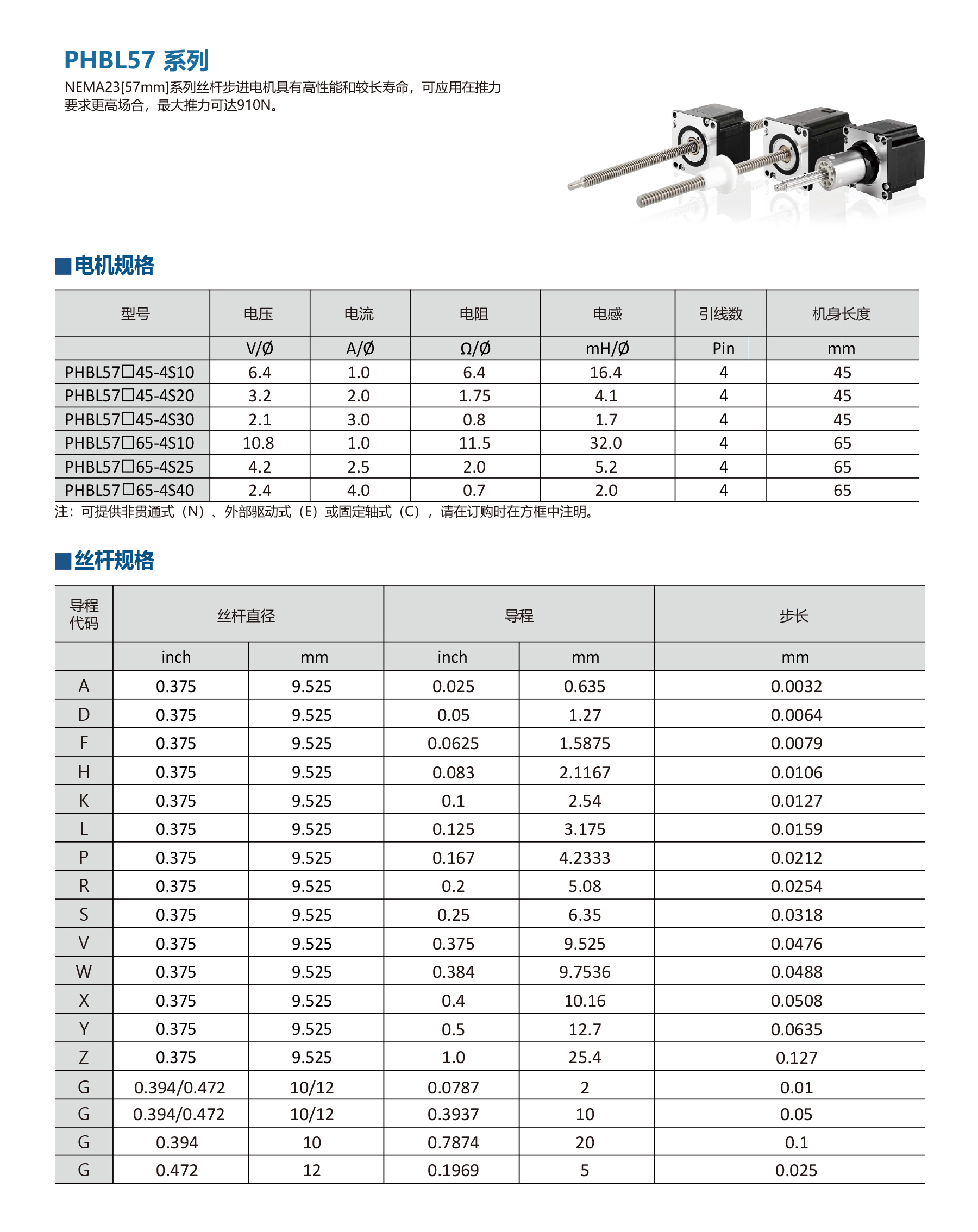

Datasheet
