NEMA 14・PHBS35

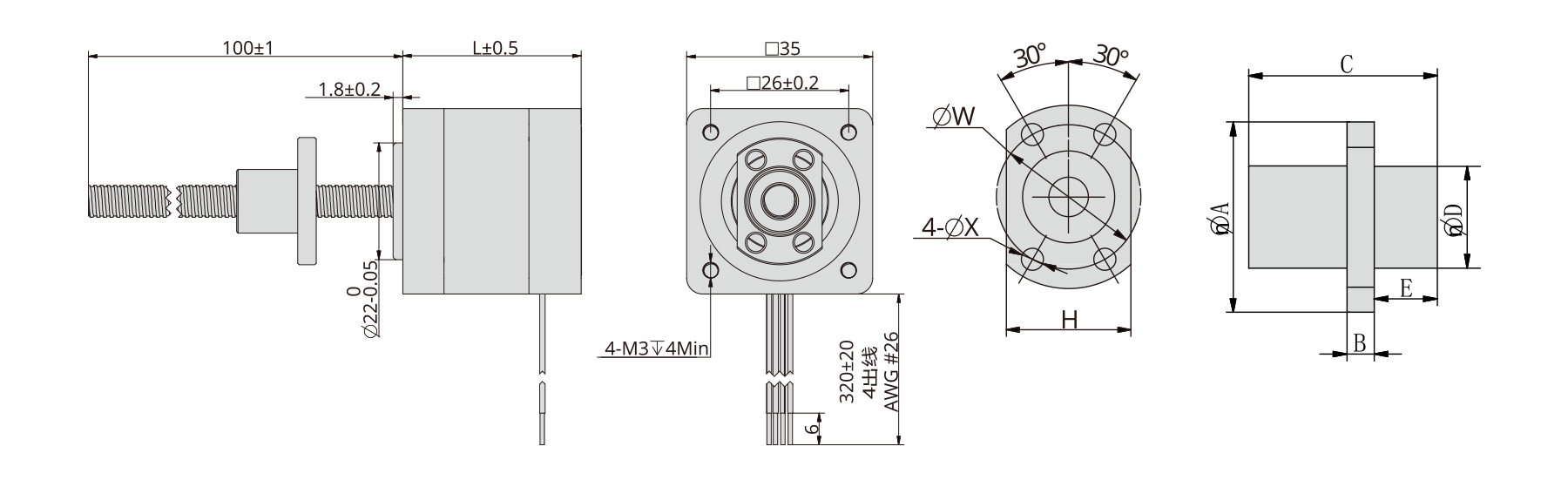

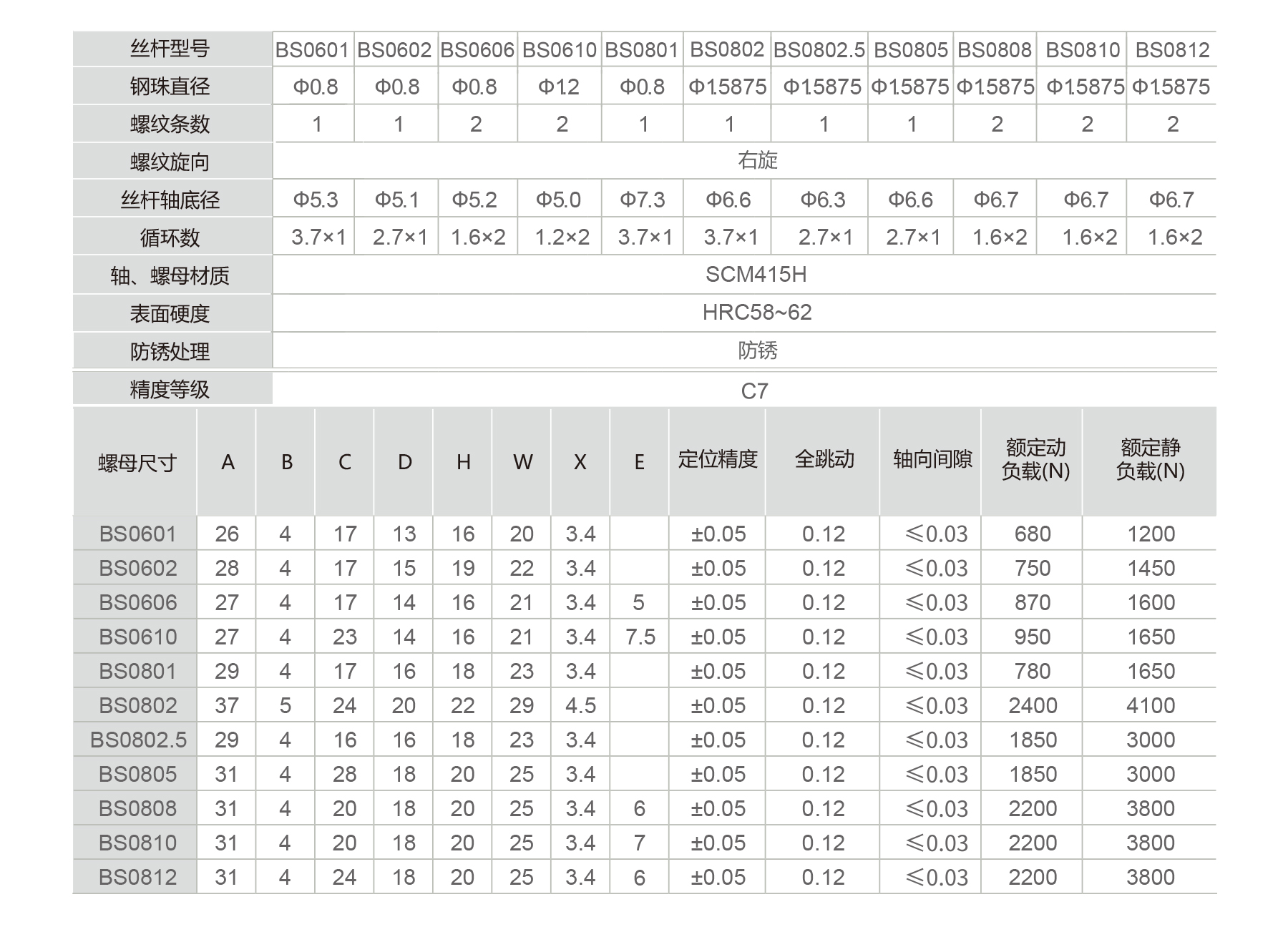

PHBS35 Series stepper motor with ball screw ensures precise linear motion in 35 mm size. Current 1.0–1.5 A, 4-lead, 33.6 or 45.6 mm motor length. Ball screw Φ6.0 or 8.0 mm, right-hand thread, shaft & nut SCM415H, HRC58–62, anti-rust treated. Suitable for automation, robotics, and CNC linear actuator applications.
Datasheet
