NEMA 11・PHBL28

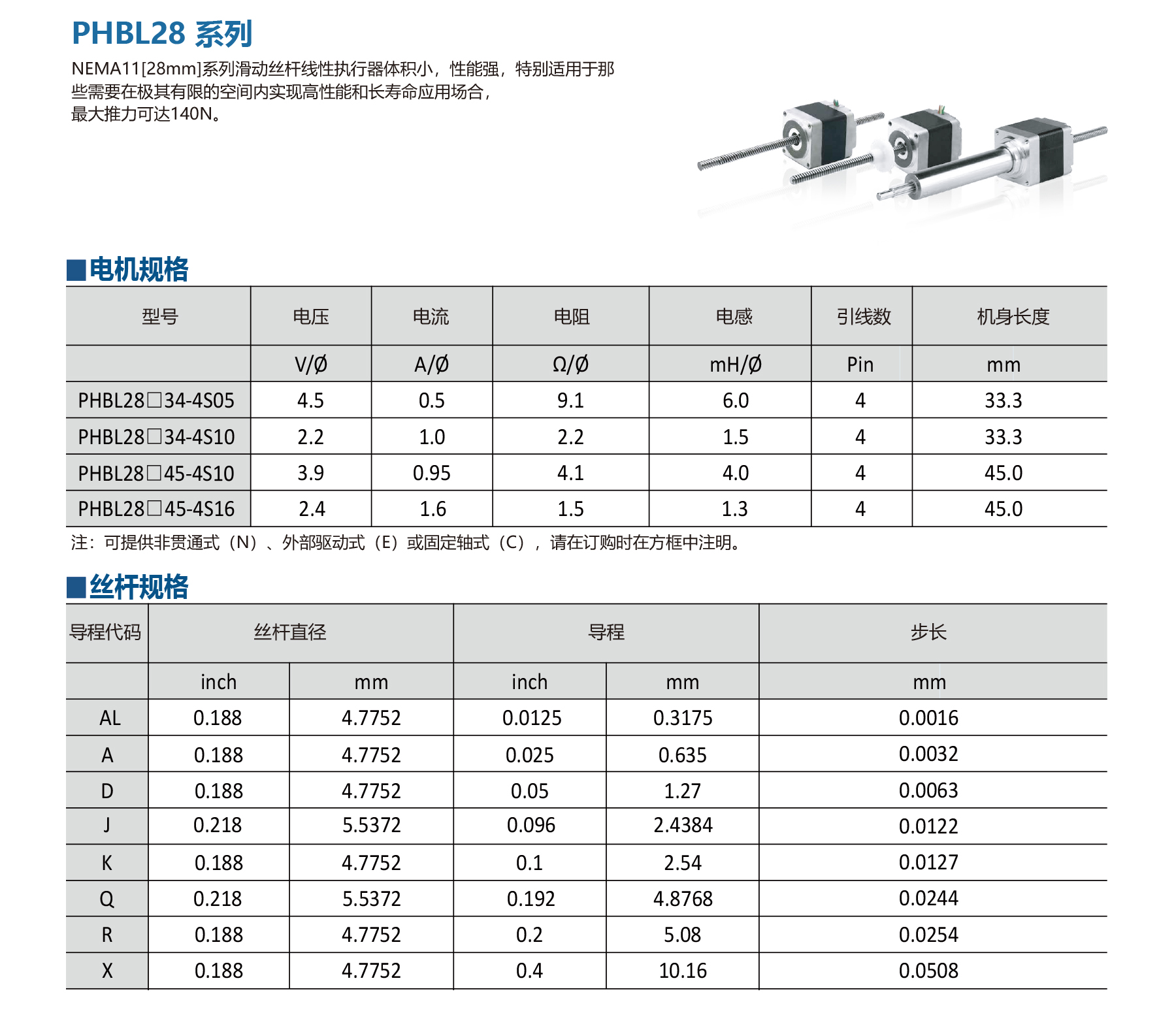

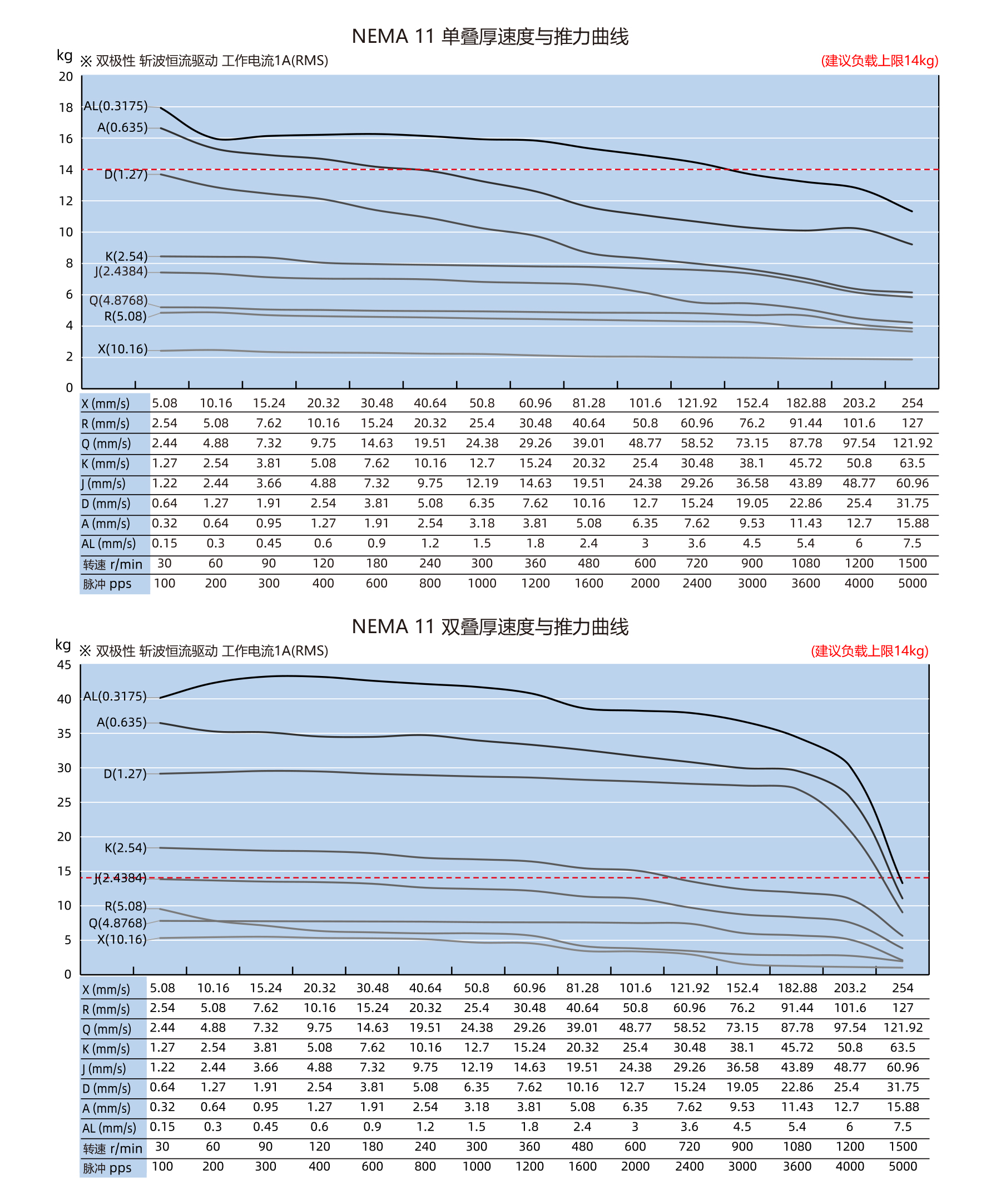

PHBL28 Series NEMA 11 stepper lead screw linear actuator delivers over 140 N continuous thrust—3× that of size 8—within a compact 28mm frame. Current 0.5–1.6 A, multiple lead options. Available in non-captive, external, or captive types for heavy-duty automation and precision devices.
Datasheet
