Naming method

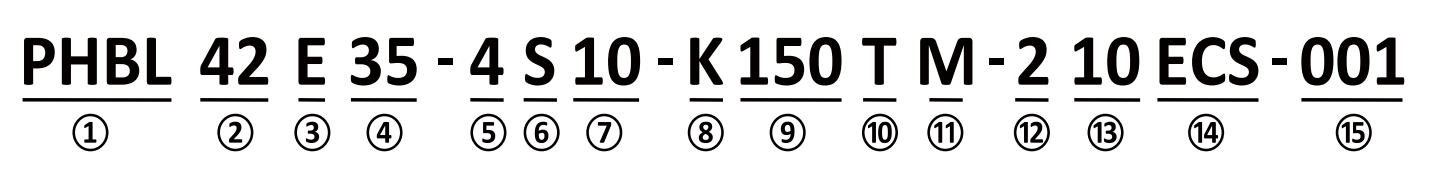

Please follow the naming method below to correctly select the motor you need.
| ① Motor Type |
PrimoPal Hybrid Lead Screw Linear Actuator |

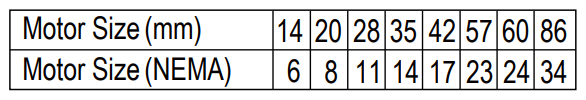

| ② Motor Size |
 |
| ③ Linear Actuator Type |
E = External Linear Actuator |
N = Non-Captive Linear Actuator |
C = Captive Linear Actuator |
|
| ④ Body Length |
35 = 35mm |
49 = 49mm |
| ⑤ Number of Lead Wires |
4 = 4 Flying Leads |
6 = 6 Flying Leads |
8 = 8 Flying Leads |
|
| ⑥ Motor Step Angle |
S = 2 Phase With 1.8° |
M = 2 Phase With 0.9° |
F = 5 Phase With 0.72° |
|
| ⑦ Rated Current/Phase |
XX = X.X (A)/Phase |
| ⑧ Lead Screw Code |
Please refer to lead screw code selection table |
| ⑨ Lead Screw Length / Stroke |
XXX = XXX mm Lead screw length |
XXX = X.XX inch Stroke |
| ⑩ Lead Screw Surface Treatment |
T = Teflon Coating |
S = Standard Grease |
D = Without Grease |
|
| ⑪ End Machining |
M = Metric |
U = UNC |
S = Smooth |
C = Customize |
| ⑫ Encoder Signal Number |
2 = A/B |
3 = A/B/Z |
| ⑬ Encoder Resolution |
10 = 1000 CPR (4000PPR) |
01 = 100 CPR (400PPR) |
| ⑭ Encoder Signal Type |
ECS = Single-ended |
ECD = Differential |
| ⑮ Serial Number |
001, 002, 003, etc. |
