NEMA 23・PKS57P

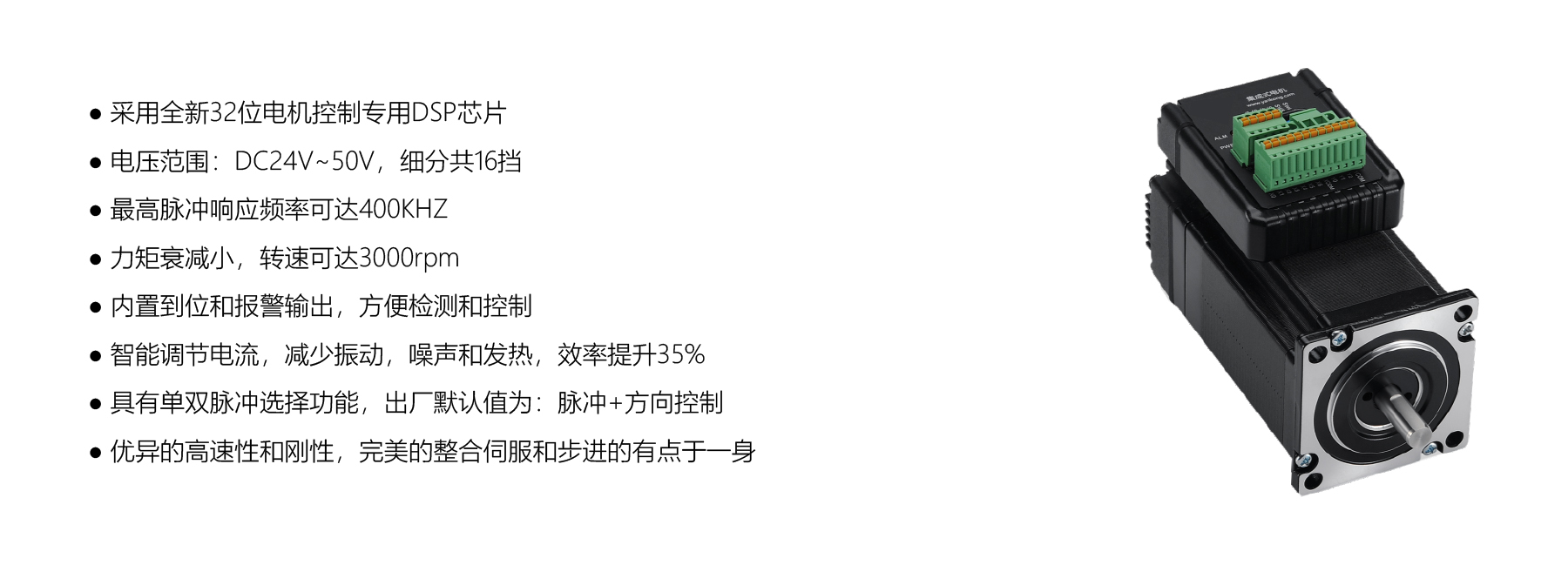

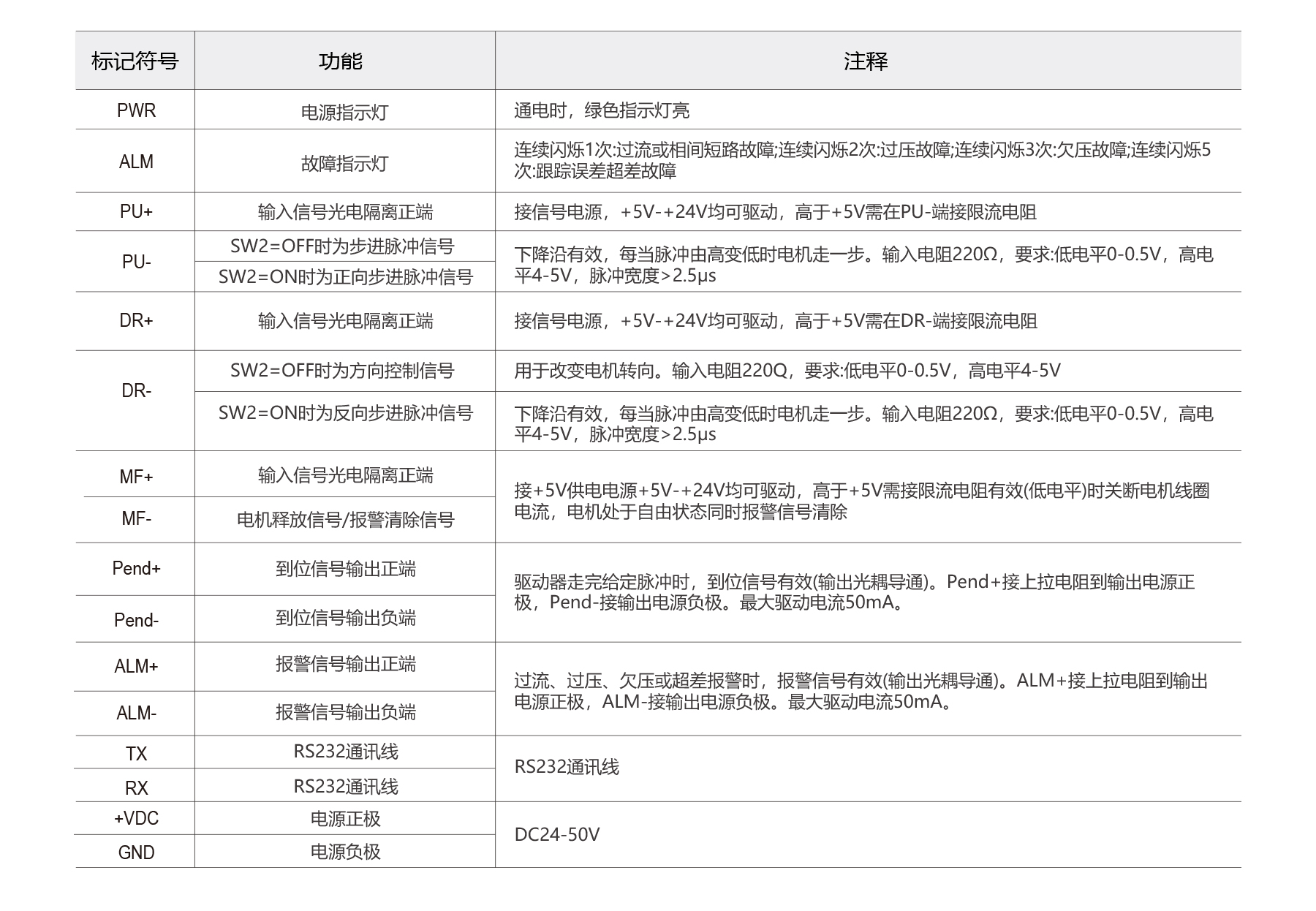

The NEMA23 Side Mount PKS57P Integrated Stepper Motor features next-gen 32-bit DSP, 24–50 V, 16-step microstepping, low torque ripple, and speeds up to 3000 RPM. With 400 kHz pulse response and built-in position/alarm outputs, it’s ideal for CNC and automation.
Datasheet
