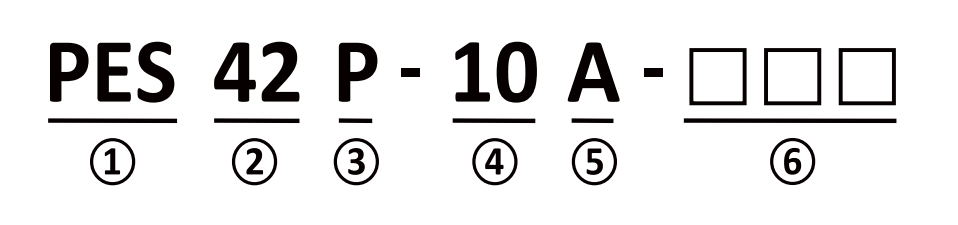

Naming method
Please follow the naming method below to correctly select the motor you need.
| ① Stepper Drive Type | PES: Closed-Loop, Rear Mounted Drive | |||
|---|---|---|---|---|
| PKS: Closed-Loop, Side Mounted Drive | ||||
| ② Number Of Phase | 42: NEMA 17 | 57:NEMA 23 | 60:NEMA 24 | |
| ③ Control Type | P: Pulse Control | R: RS485 | C: CANOpen | E: EtherCAT |
| ④ Holding Torque | 10:1.0Nm | 20:2.0Nm | ||
| ⑤ Encoder Type | A: 1000 CPR | B: 2500 CPR | C: 14-bit absolute | |
| ⑥ Serial Number | 001, 002, 003, etc. | |||
