NEMA 23・1.8°・PHH57S

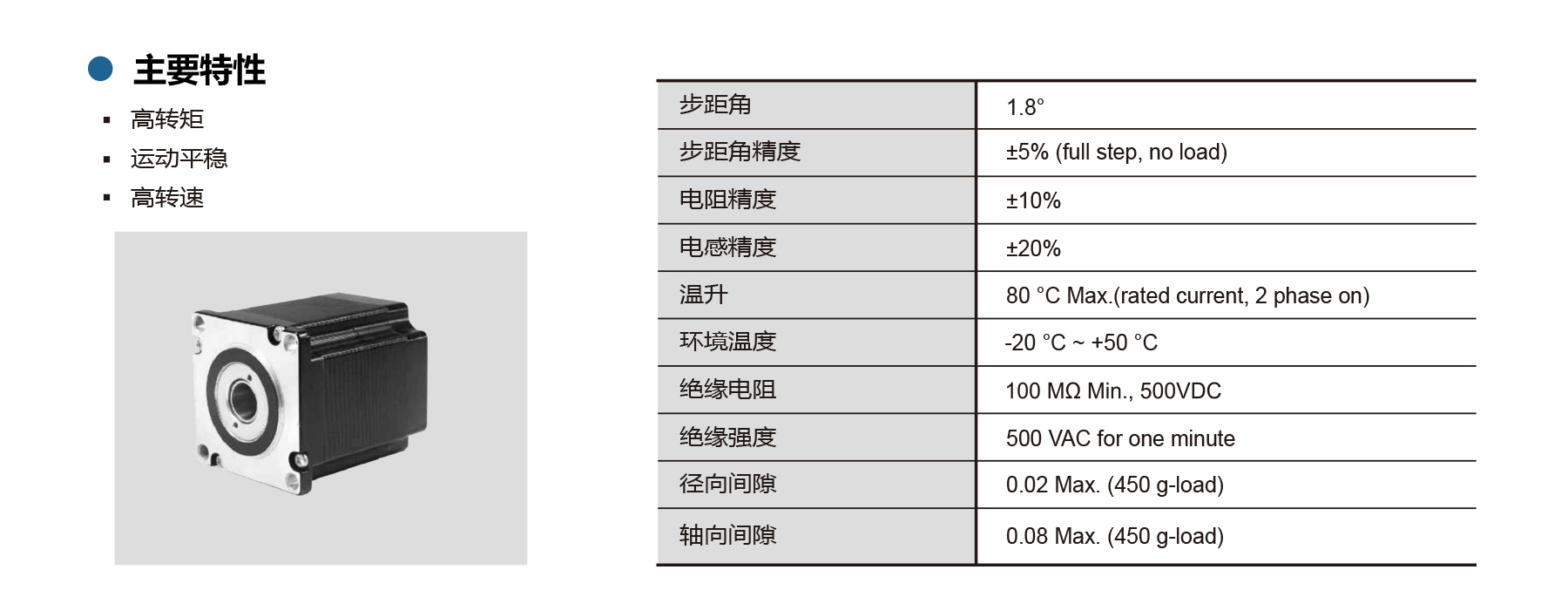

The PHH57S series NEMA 23 hollow shaft stepper motors offer high torque and smooth 1.8° stepping with excellent accuracy (±5%) and low inertia. Built for high-speed, reliable performance across -20°C to +50°C, these motors ensure precise motion control, making them ideal for automation, and industrial applications.
Datasheet
