NEMA 24・PHP60S

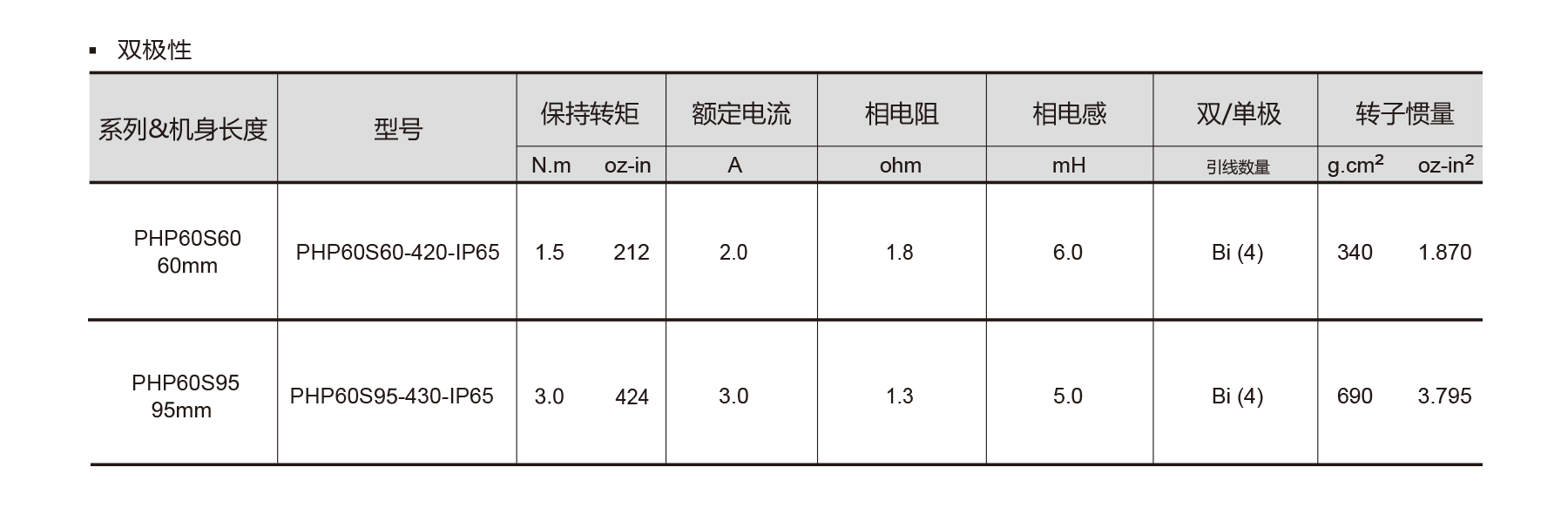

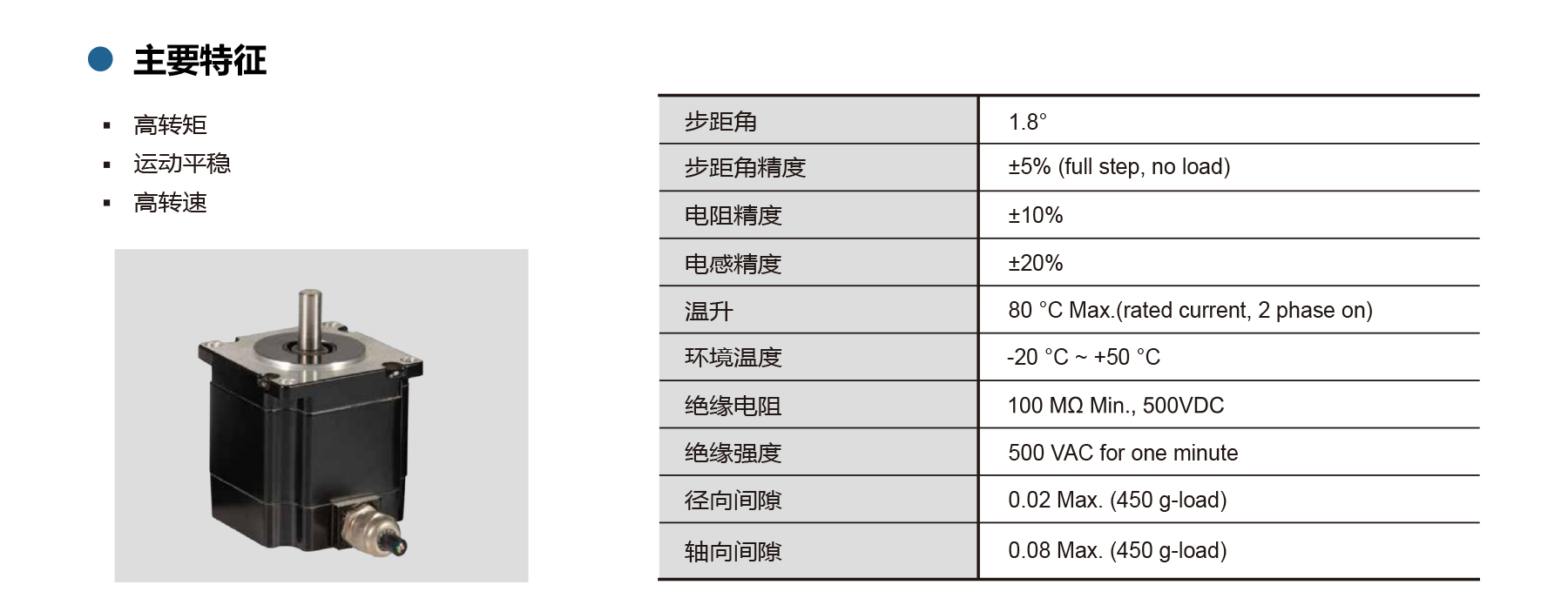

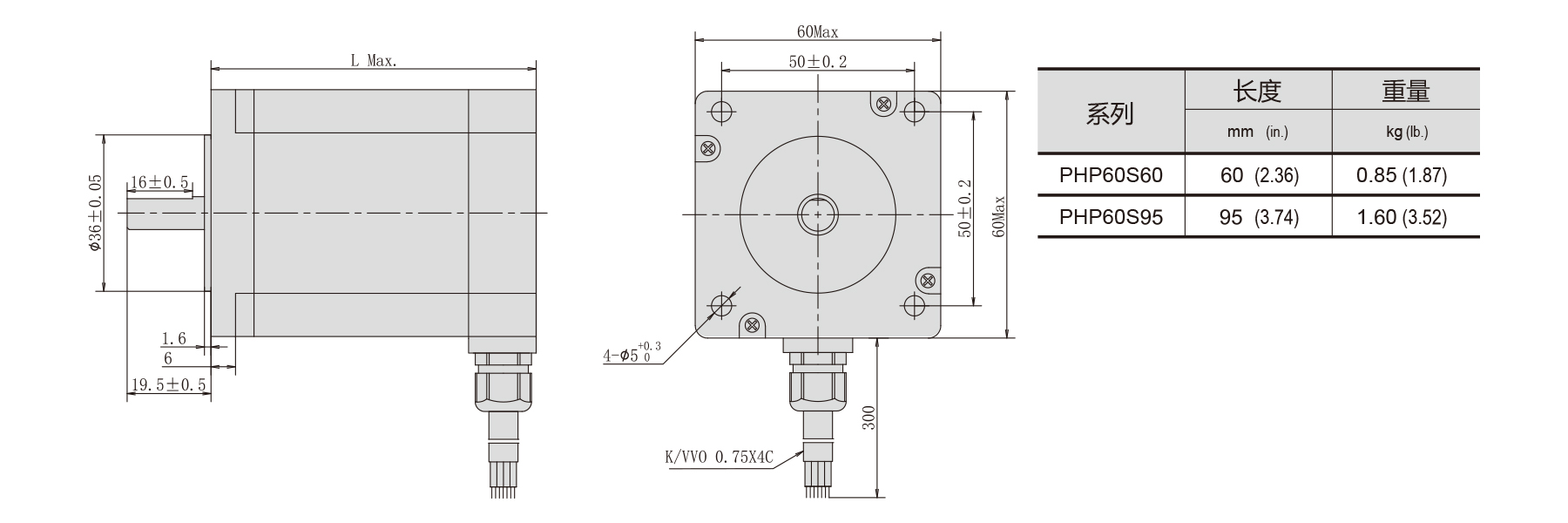

The PHP60S Series NEMA24 IP65 Stepper Motor delivers high torque up to 3.0 N·m, 1.8° step angle (±5%), smooth high-speed motion, and low radial/axial play. Available in 60–95 mm lengths with 1.3–1.8 A rated current, ideal for automation, and harsh-environment systems needing precise, powerful, and reliable operation.
Datasheet
