NEMA 17・PHP42S

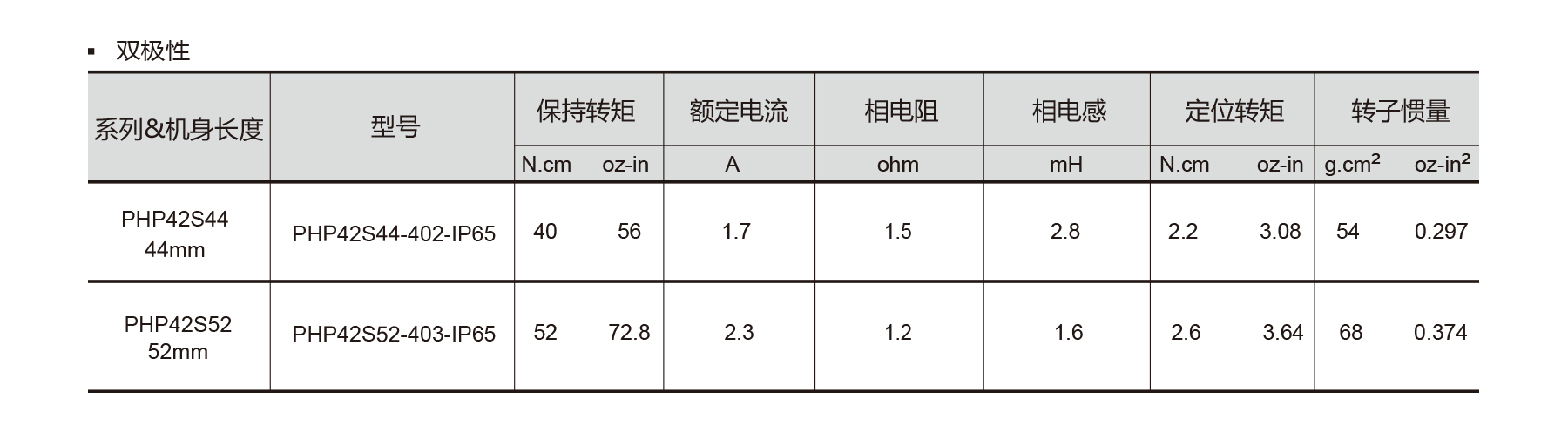

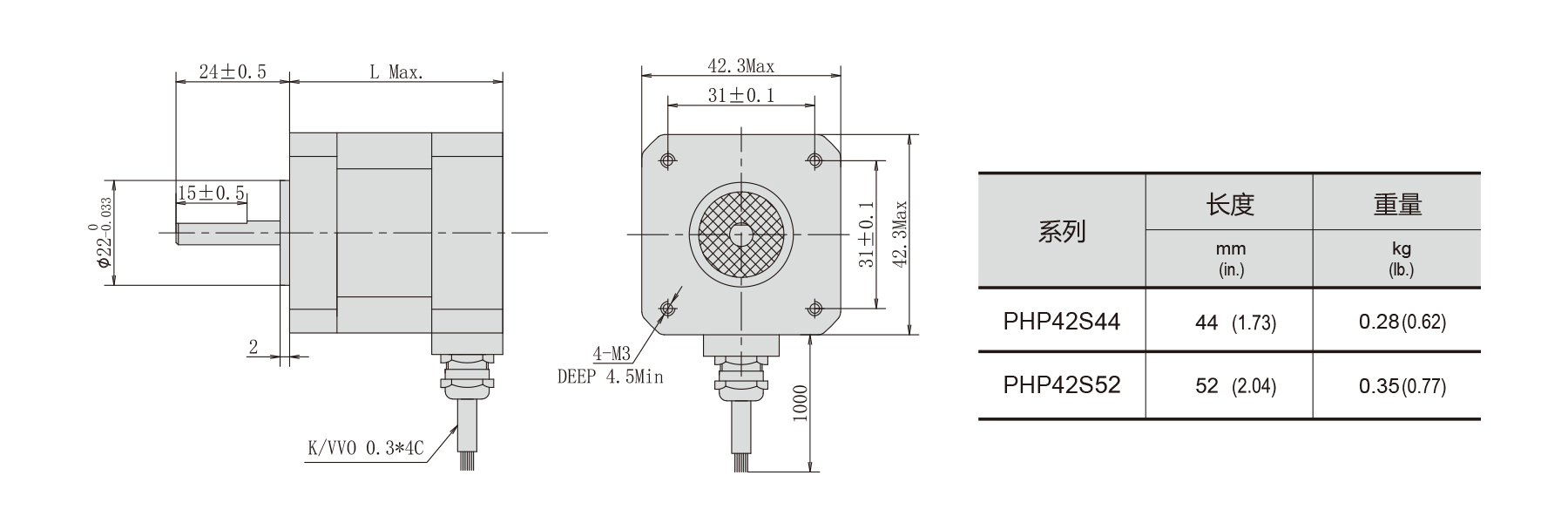

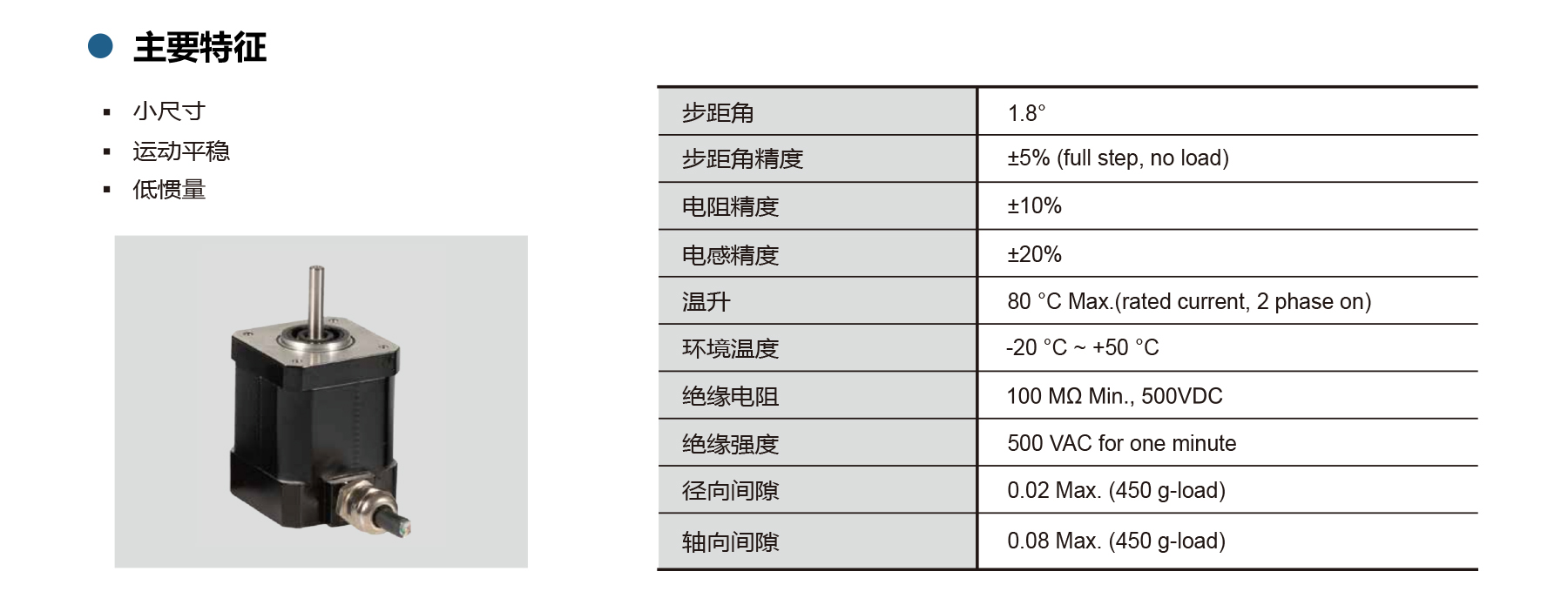

The PHP42S Series NEMA17 IP65 Stepper Motor features 1.8° step angle (±5%), smooth low-inertia motion, and compact 44–52 mm length. With holding torque up to 80 N·cm and 1.2–2.8 A rated current, it’s ideal for precision automation, and outdoor or harsh-environment applications requiring reliable performance.
Datasheet
