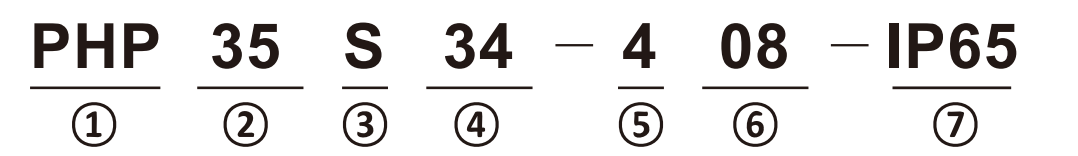

Naming method
Please follow the naming method below to correctly select the motor you need.
| ① PrimoPal High lP Stepper Motor | PHP: IP65 Rated | PHE: IP68 Rated | ||
|---|---|---|---|---|
| ② Frame Size | (Unit: mm) | |||
| ③ Step Angle | S:1.8° | T:1.2° | ||
| ④ Motor Length | (Unit:mm) | |||
| ⑤ Lead Wires | 3/4/6/8: Number of Lead Wires | |||
| ⑥ Electric Variation | Variety of current, resistance, etc | |||
| ⑦ Protection Class | ||||
