Home / Products / Hybrid Steppers / Drive Series / PST3606P
PST3606P

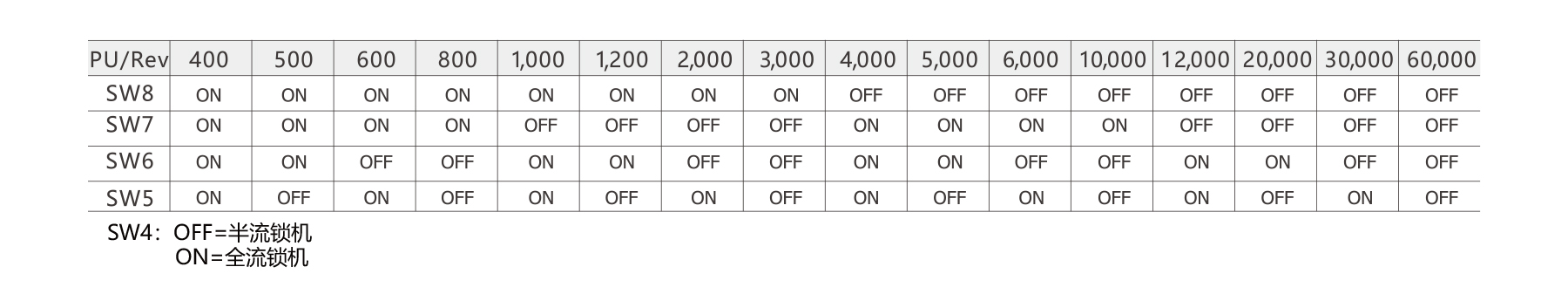

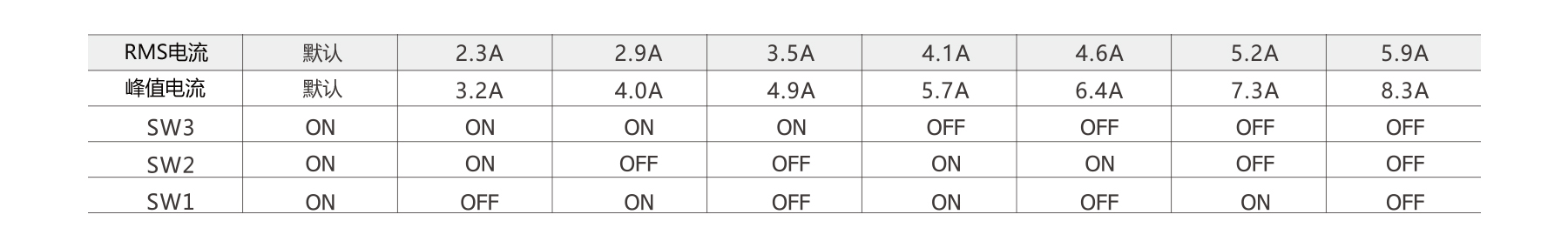

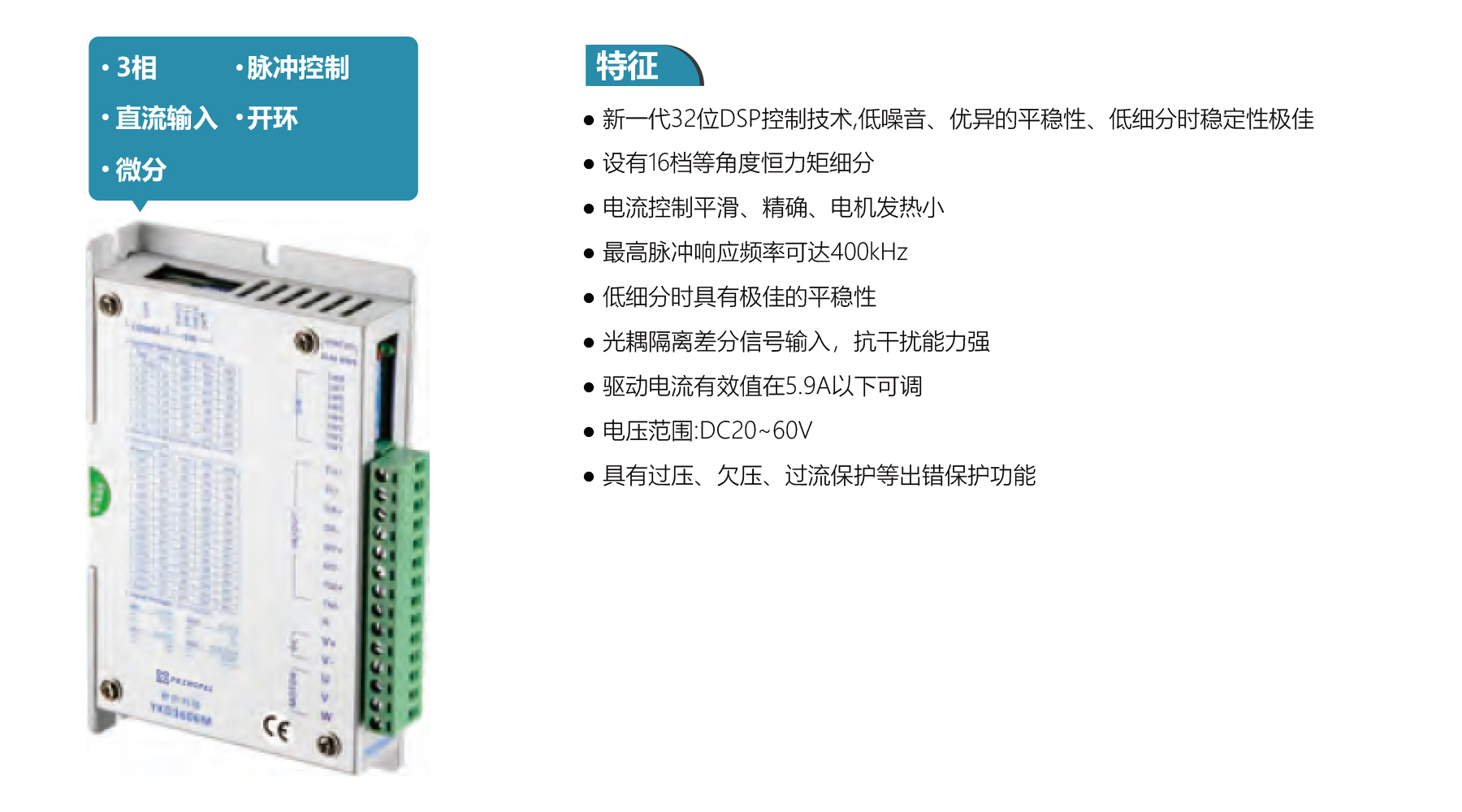

PST3606P is a 3-phase DC driver (DC20–60V, ≤5.9A) with 32-bit DSP control for low noise, stability, and up to 200 microsteps. Delivers smooth current control, 200kHz pulse rate, halved idle current, optical isolation, and full protections. Ideal for NEMA17–34 3-phase open-loop stepper motors.
Datasheet
