PST3505P

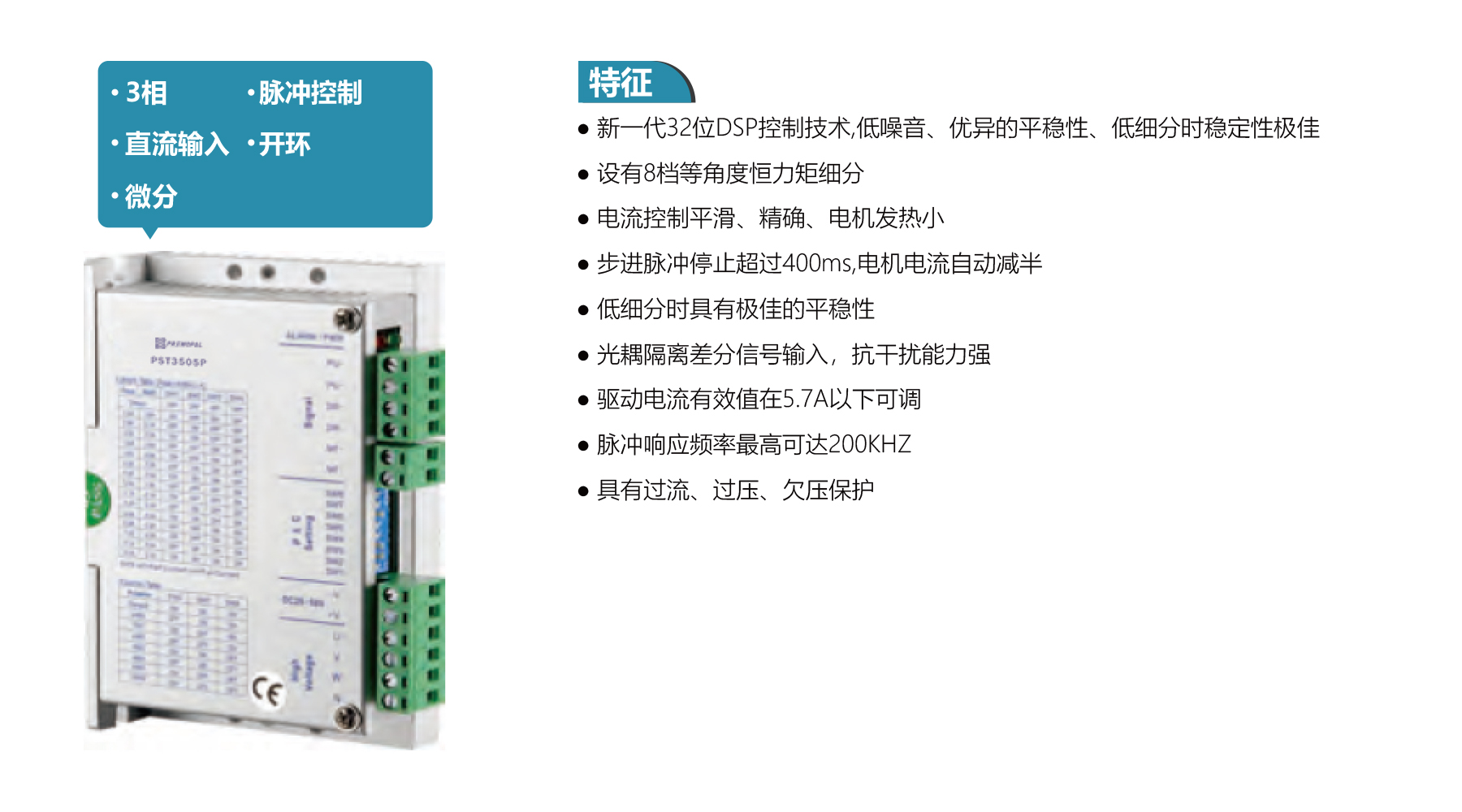

PST3505P is a 3-phase DC driver (DC20–50V, ≤5.7A) with 32-bit DSP control for low noise, stability, and up to 50 microsteps. Features smooth current control, 200kHz pulse rate, optical isolation, and full protections. Ideal for NEMA17–24 3-phase open-loop stepper motors.
Datasheet
