PST2822PH

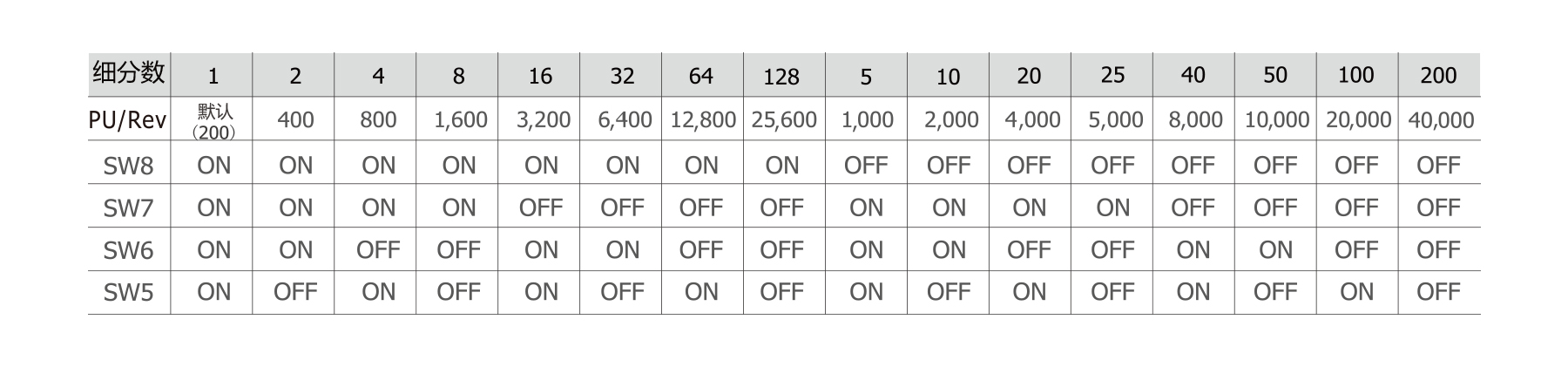

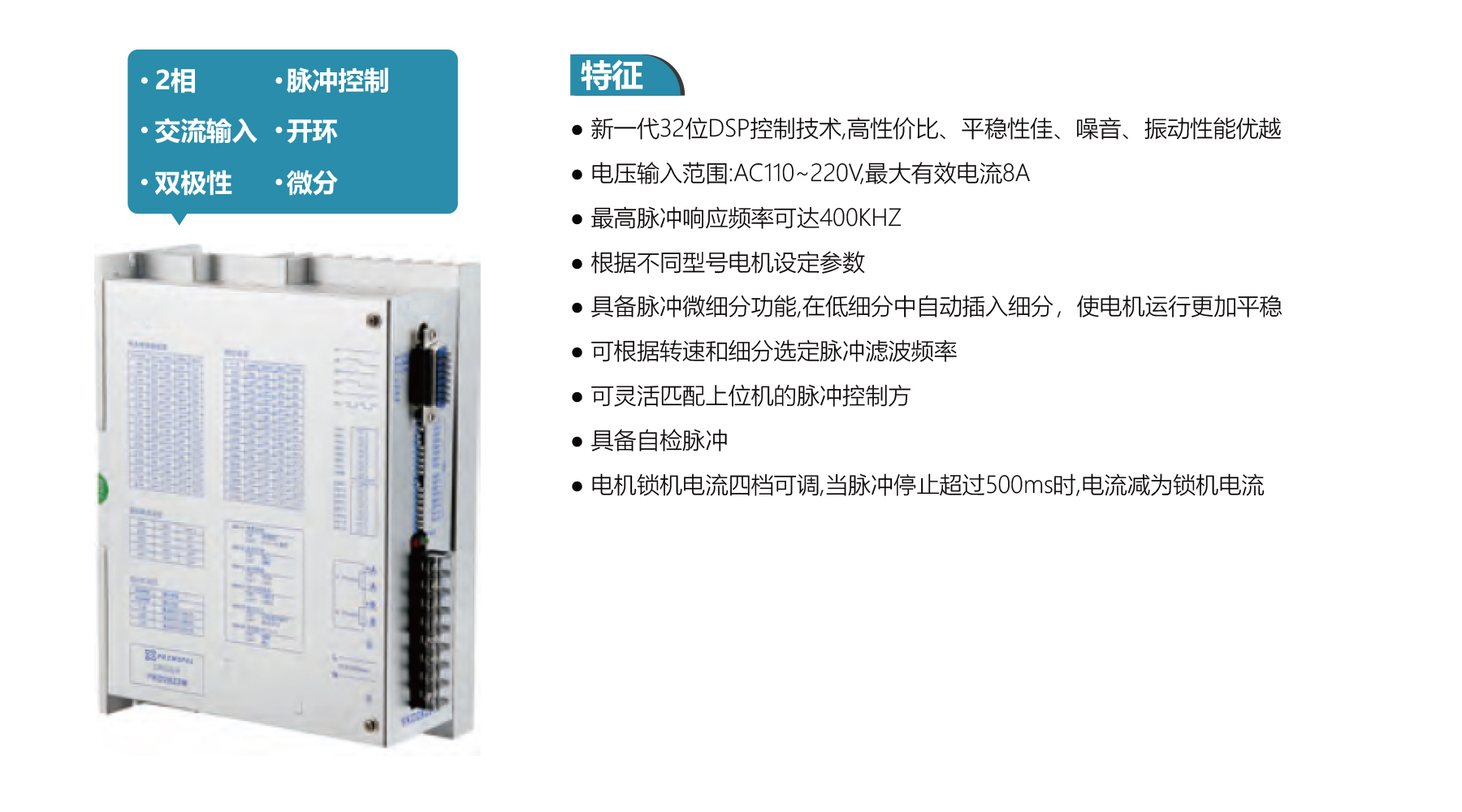

PST2822PH is a 2-phase AC driver (AC110–220V, ≤8A) with 32-bit DSP control for low noise, stability, and up to 125 microsteps. Supports motor model parameter setting, pulse filtering, adjustable lock current, 400kHz pulse rate, and full protections. Ideal for NEMA34–51 stepper motors.
Datasheet
