Home / Products / Hybrid Steppers / Drive Series / PST2811PH
PST2811PH

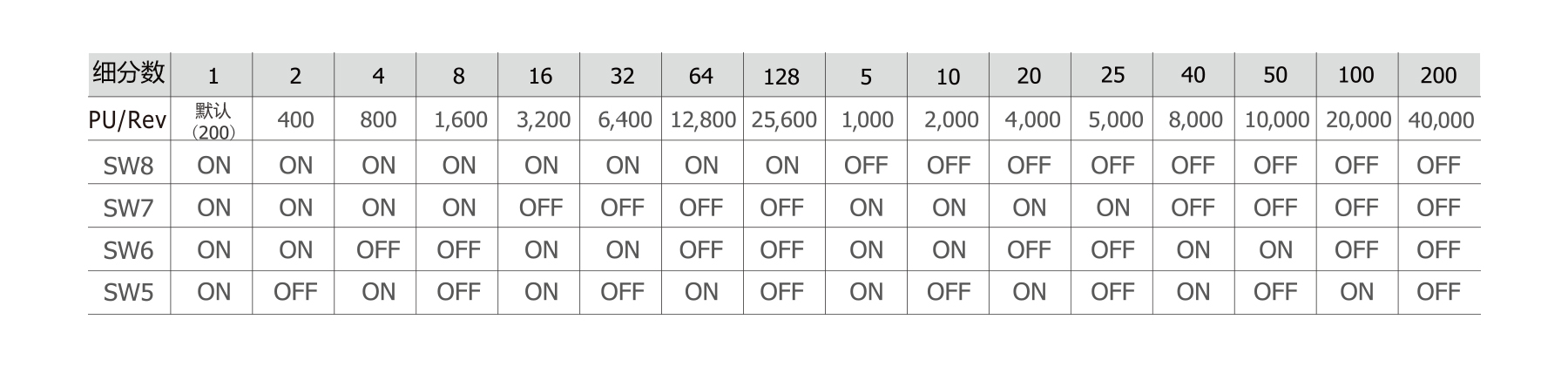

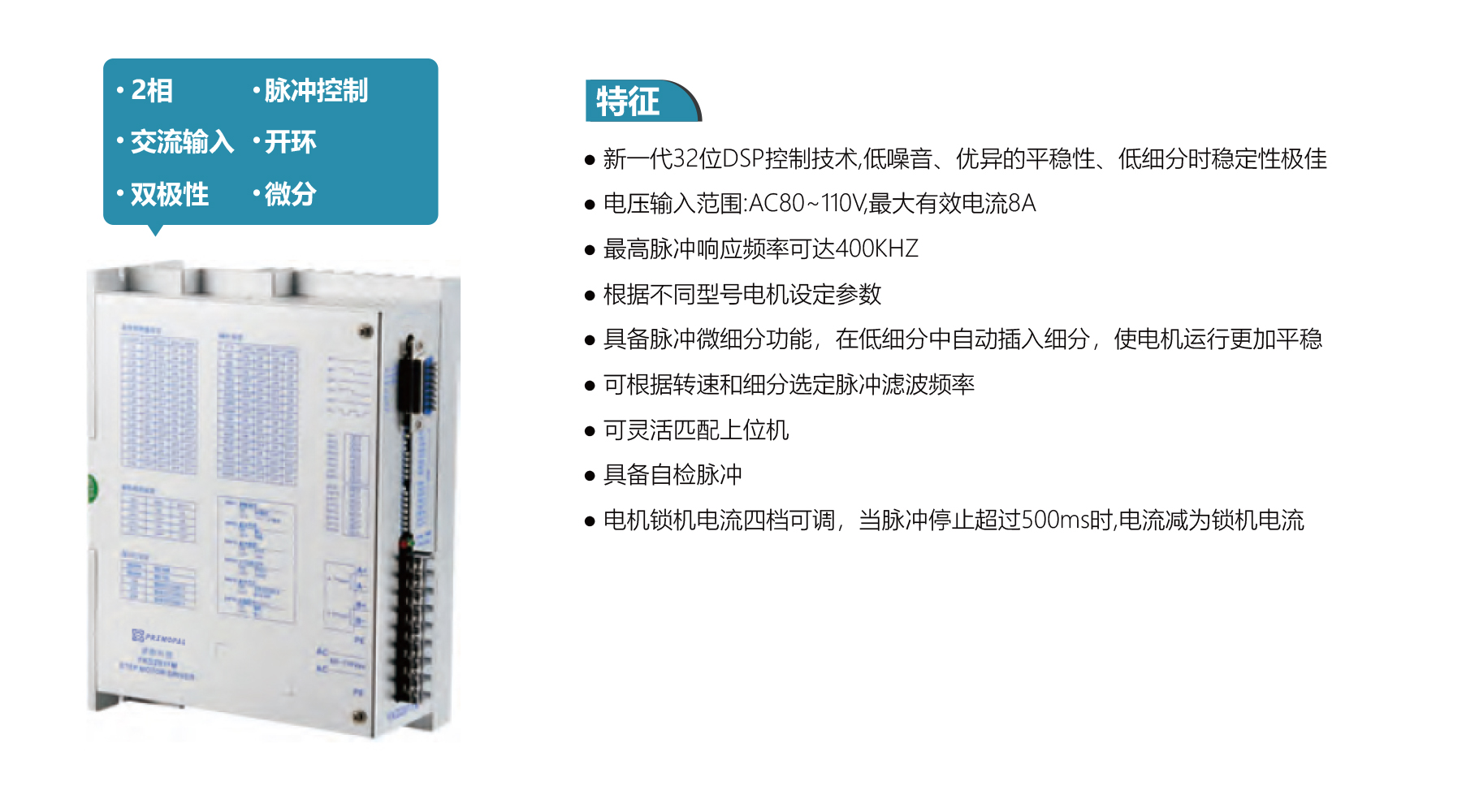

PST2811PH is a 2-phase AC driver (AC18–110V, ≤8A) with 32-bit DSP control for low noise, stability, and up to 125 microsteps. Features motor model parameter setting, pulse filtering, adjustable lock current, 400kHz pulse rate, and full protections. Ideal for NEMA34–51 stepper motors.
Datasheet
Similar Products
PST2822PH, 2 Phase
1.0-8.0A, 110-220VAC
PST3505P, 3 Phase
1.8-5.7A, 20-50VDC
PST3606P, 3 Phase
2.3-5.9A, 20-60VDC
Companion Products
NEMA 42 · 1.8° · PHB110S
