PST2405P

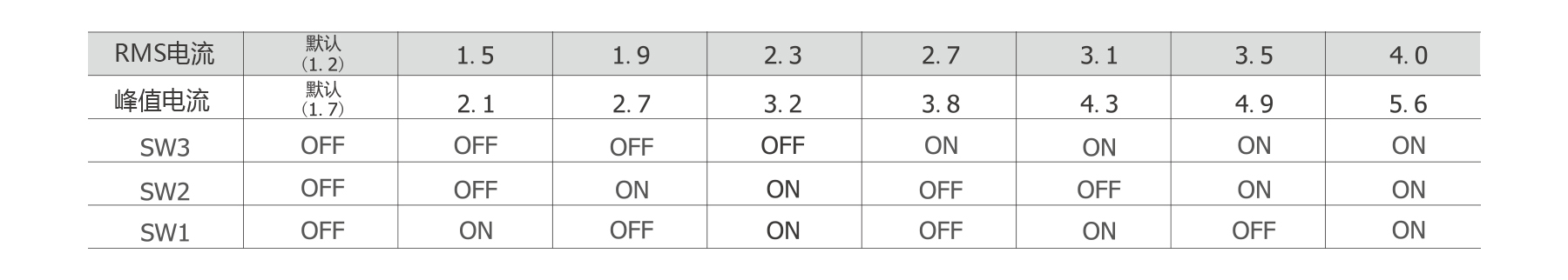

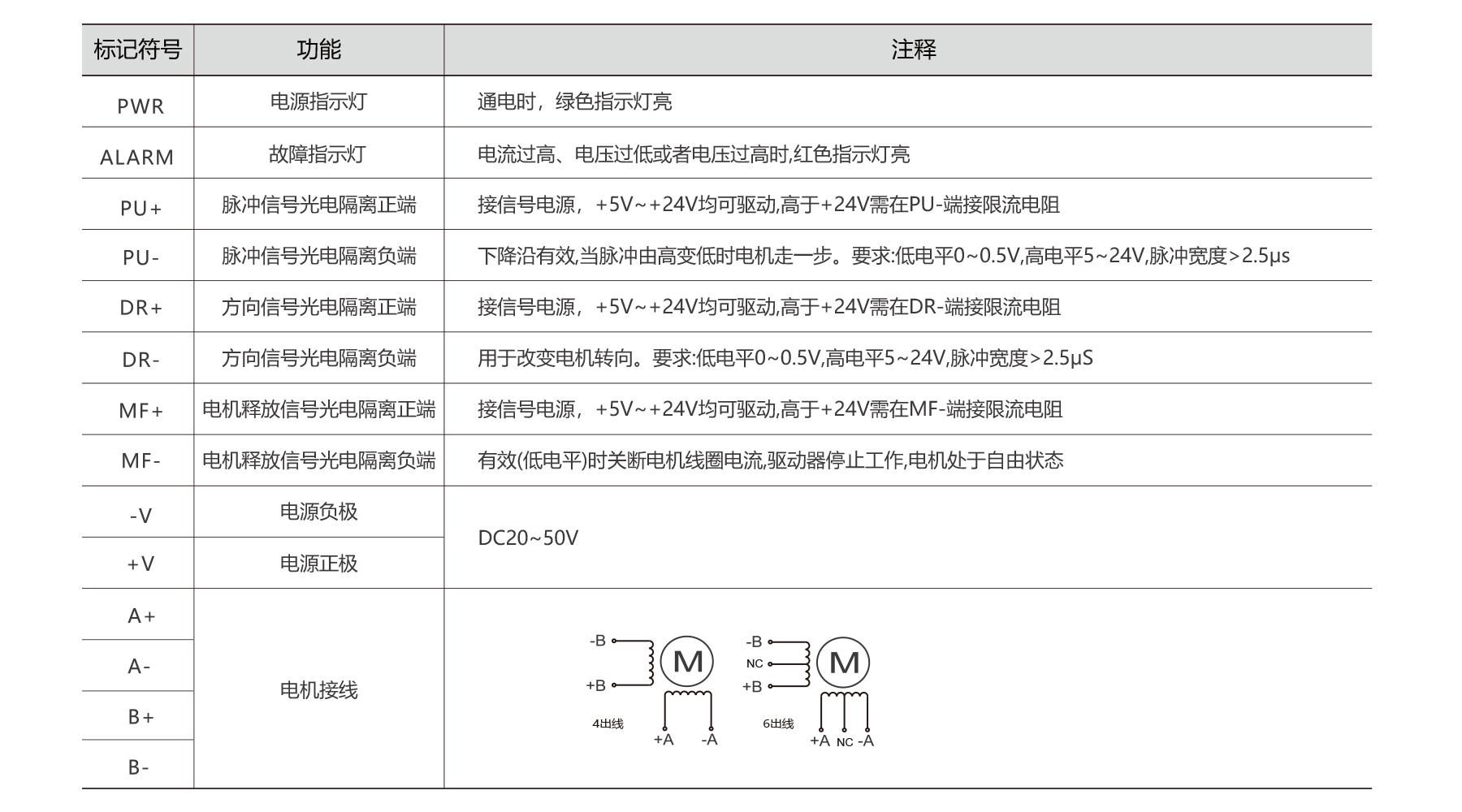

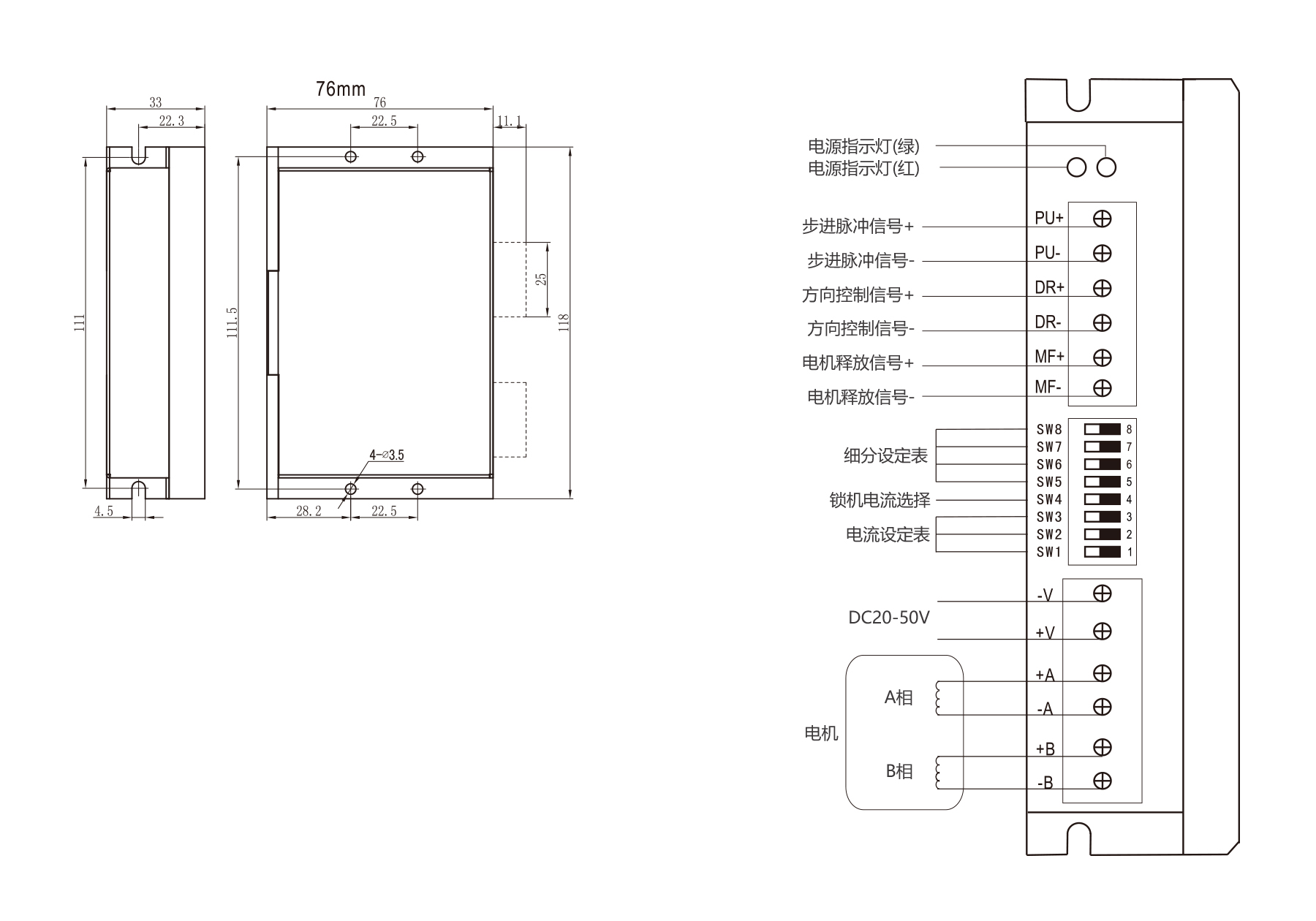

The PST2405P 2-Phase Pulse Control Driver features DC20–50V input, up to 4.0 A adjustable current, and 32-bit DSP control for low-noise, low-vibration performance. Supports up to 200-step microsteps, high-speed output, and single/double pulse mode. Compact 118×76×33 mm size, ideal for NEMA17/23/24 open-loop stepper motors.
Datasheet
Similar Products
PST2408P, 2 Phase
1.2-4.0A, 20-80VDC
PST2405PD, 2 Phase
1.2-4.0A, 20-50VDC
Companion Products
NEMA 17 · 3.6° · PHB42E
NEMA 17 · 0.9° · PHB42M
NEMA 17 · 1.8° · PHB42S
NEMA 23 · 1.8° · PHB57K
NEMA 23 · 0.9° · PHB57M
NEMA 23 · 1.8° · PHB57S
