PST2204PD

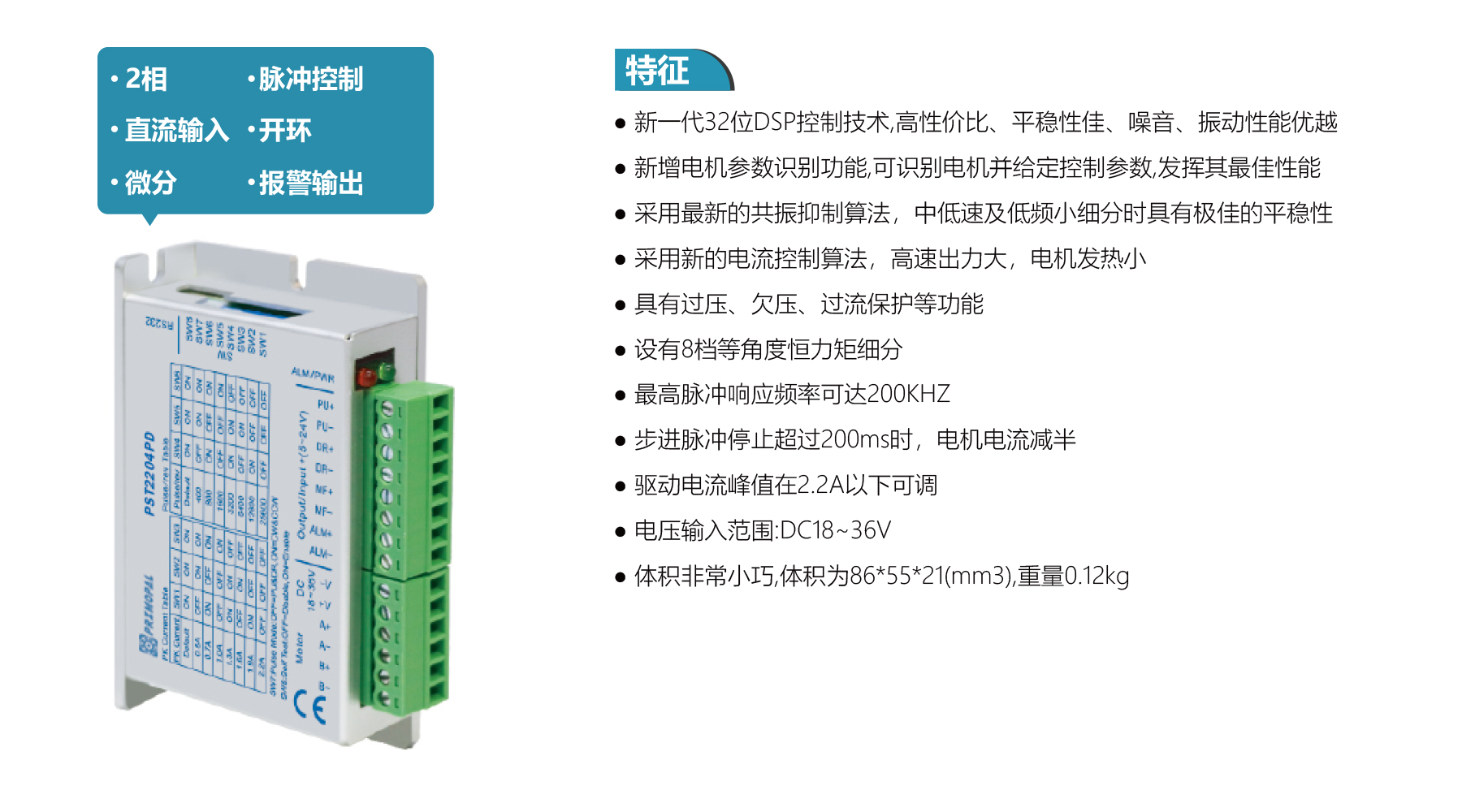

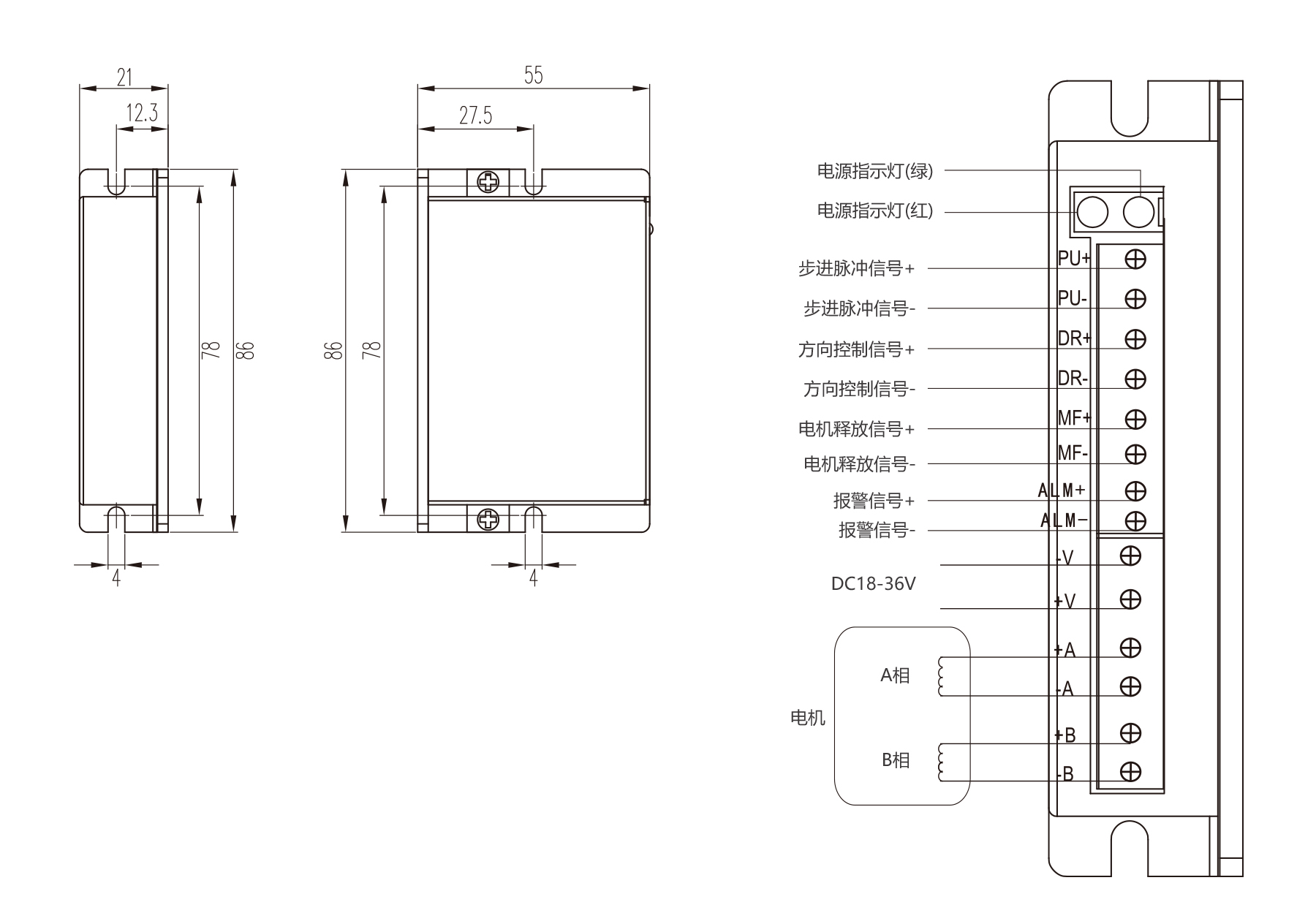

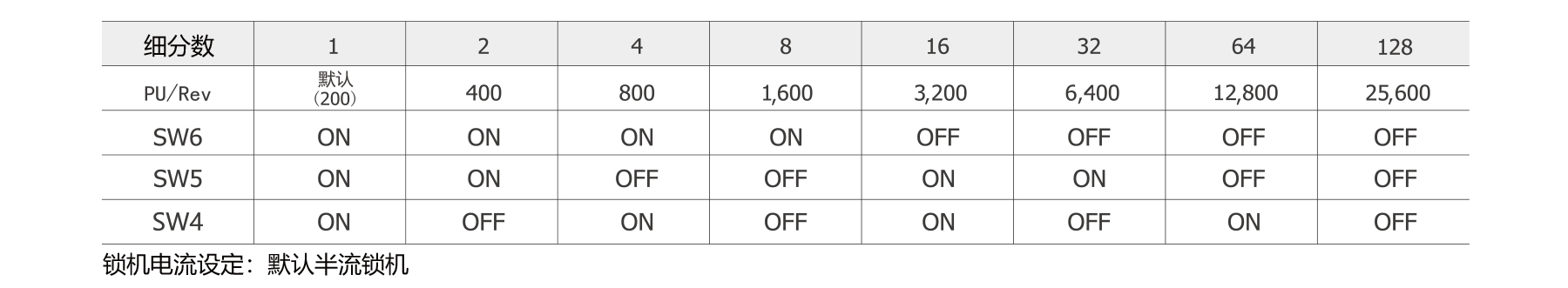

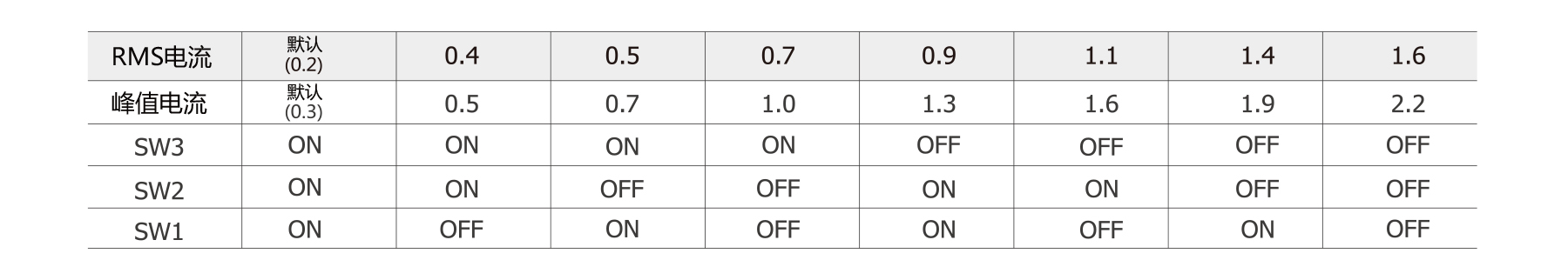

The PST2204PD 2-Phase Pulse Control Driver features DC18–36V input, up to 2.2 A adjustable current, and 32-bit DSP control for stable, low-noise, low-vibration performance. Supports 128-step microstepping, automatic motor parameter recognition, and high-speed current control with minimal heating. Compact 86×55×21 mm size, ideal for NEMA6-17 2-phase open-loop stepper motors.
Datasheet
