PST2204P

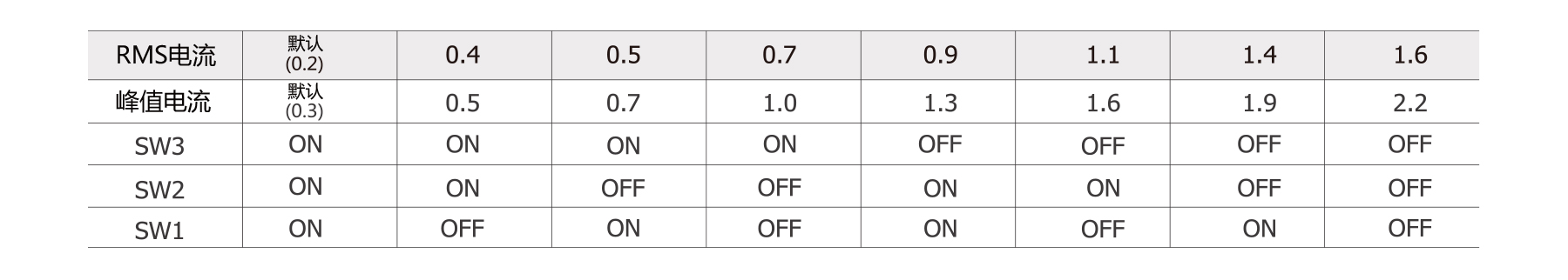

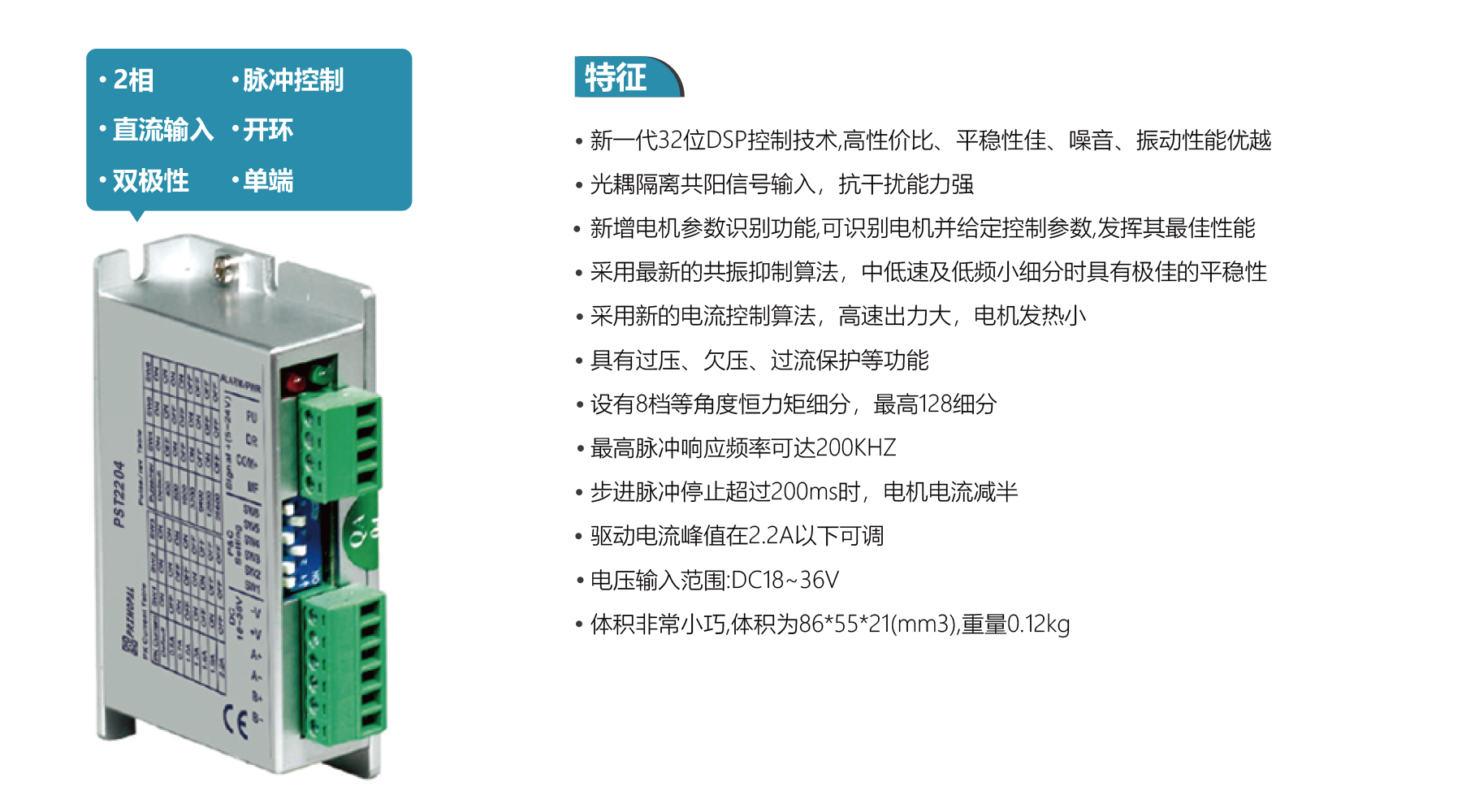

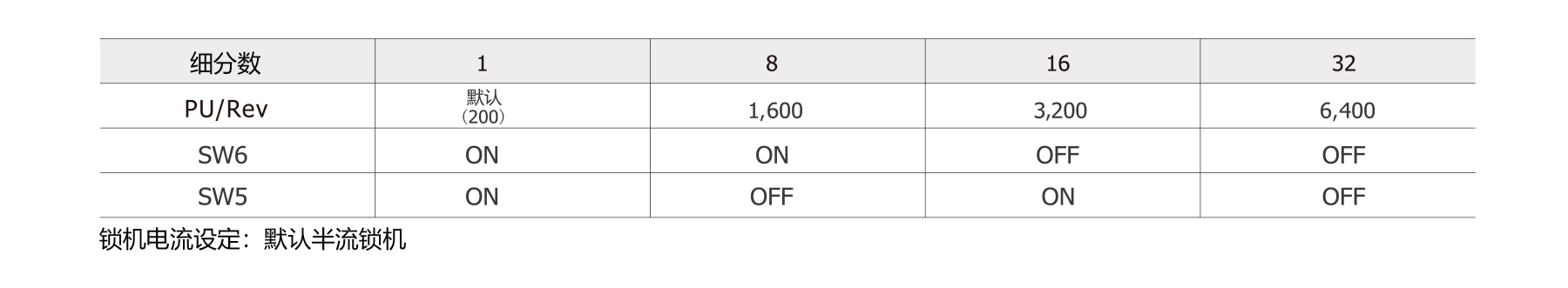

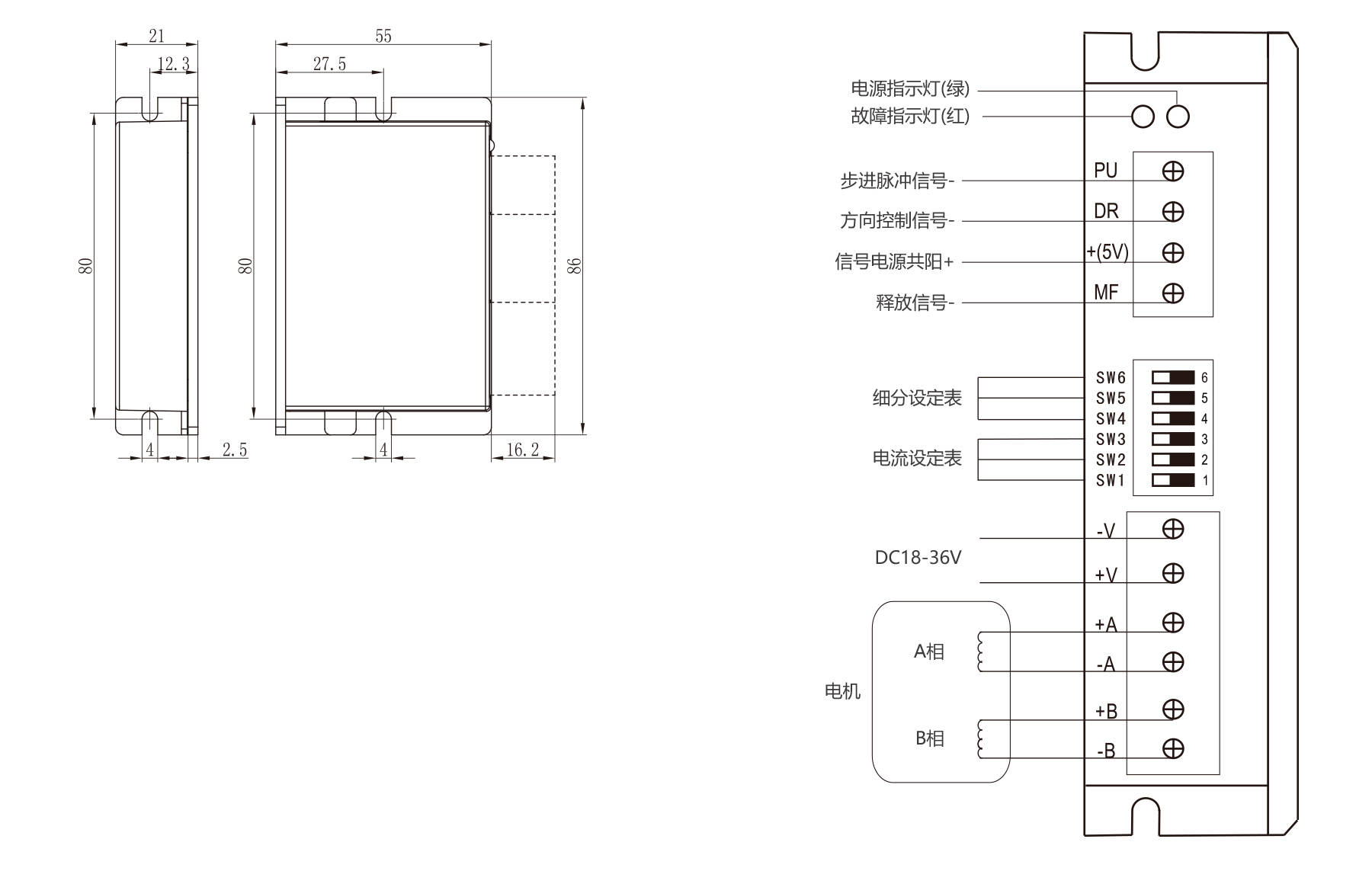

The PST2204P 2-Phase Pulse Control Driver offers DC18–36V input, up to 2.2 A adjustable current, and 32-bit DSP for stable, low-vibration performance. Supports up to 32-step microsteps, optically isolated signals, and compact 86×55×21 mm size. Ideal for NEMA6-17 2-phase open-loop stepper motors in precise automation.
Datasheet
