PSR2204A

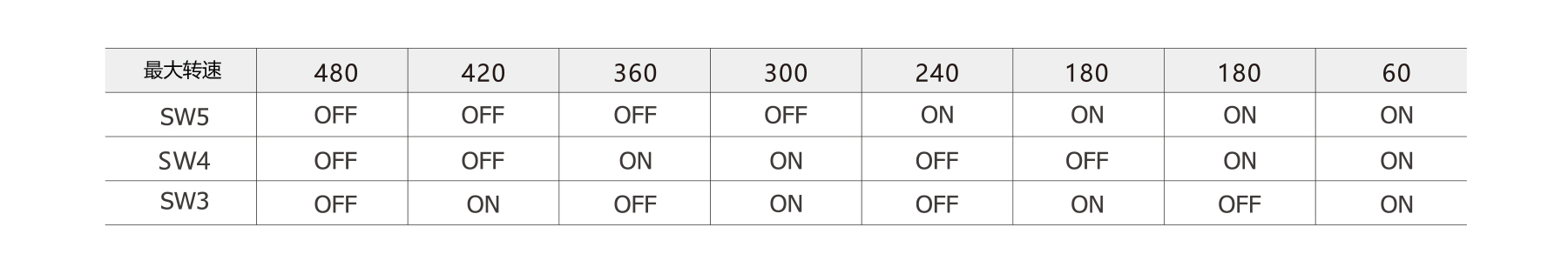

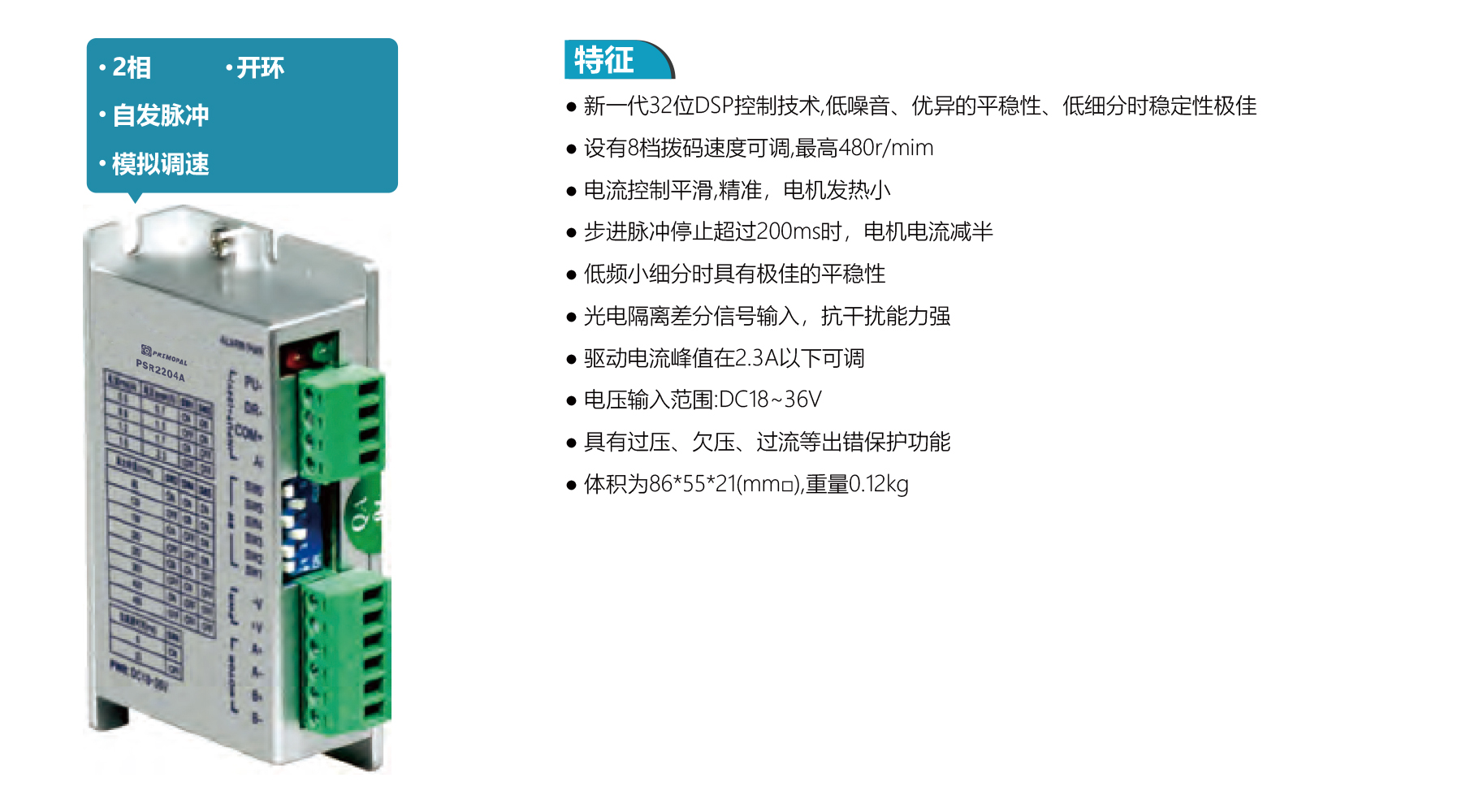

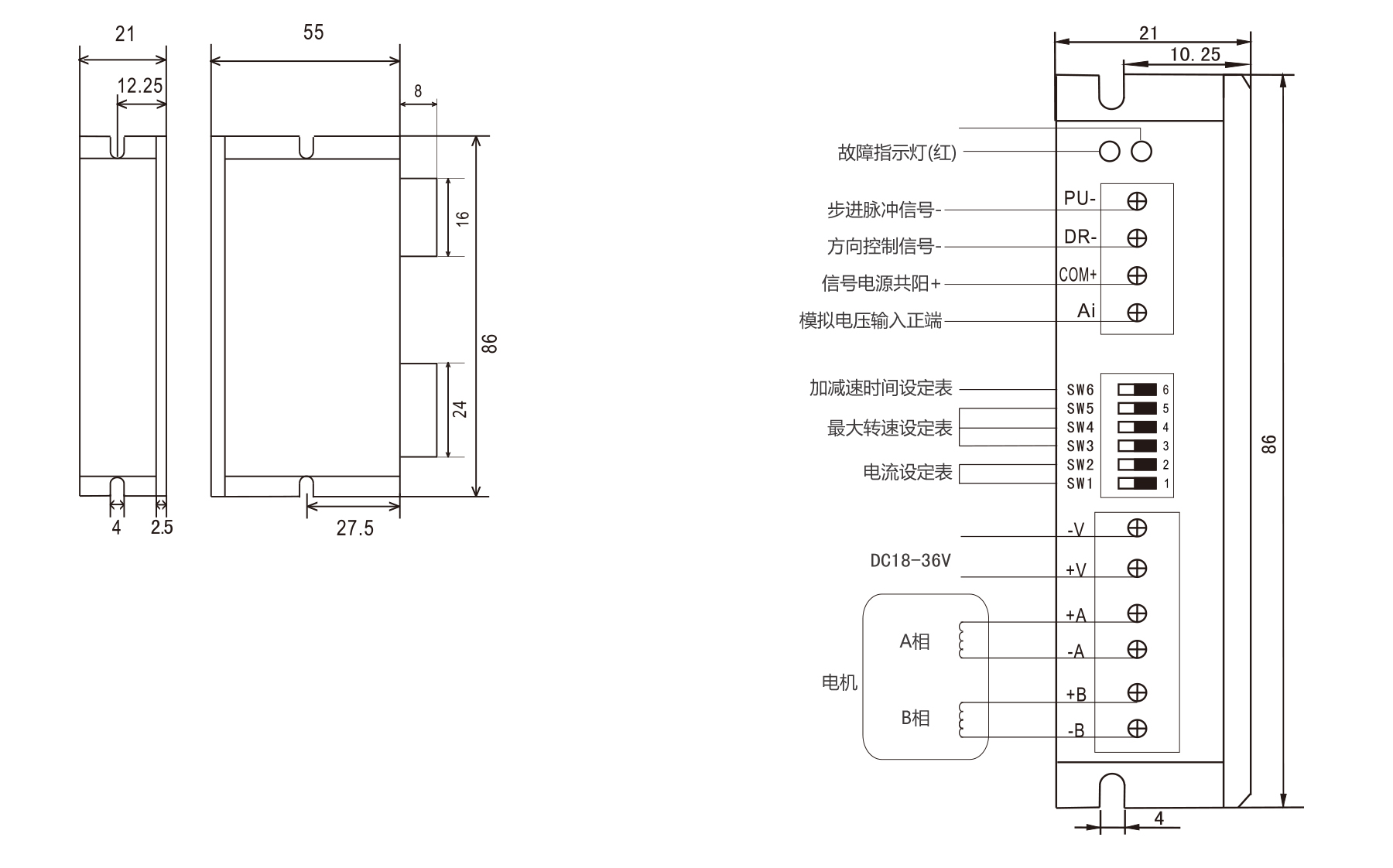

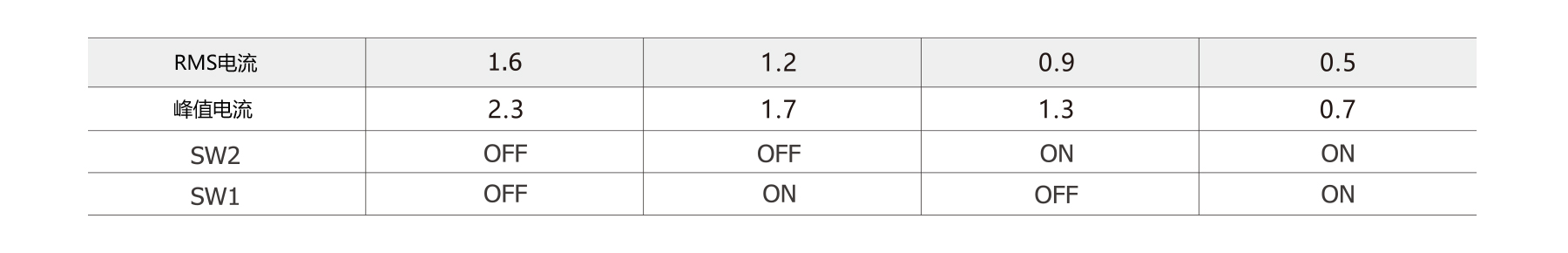

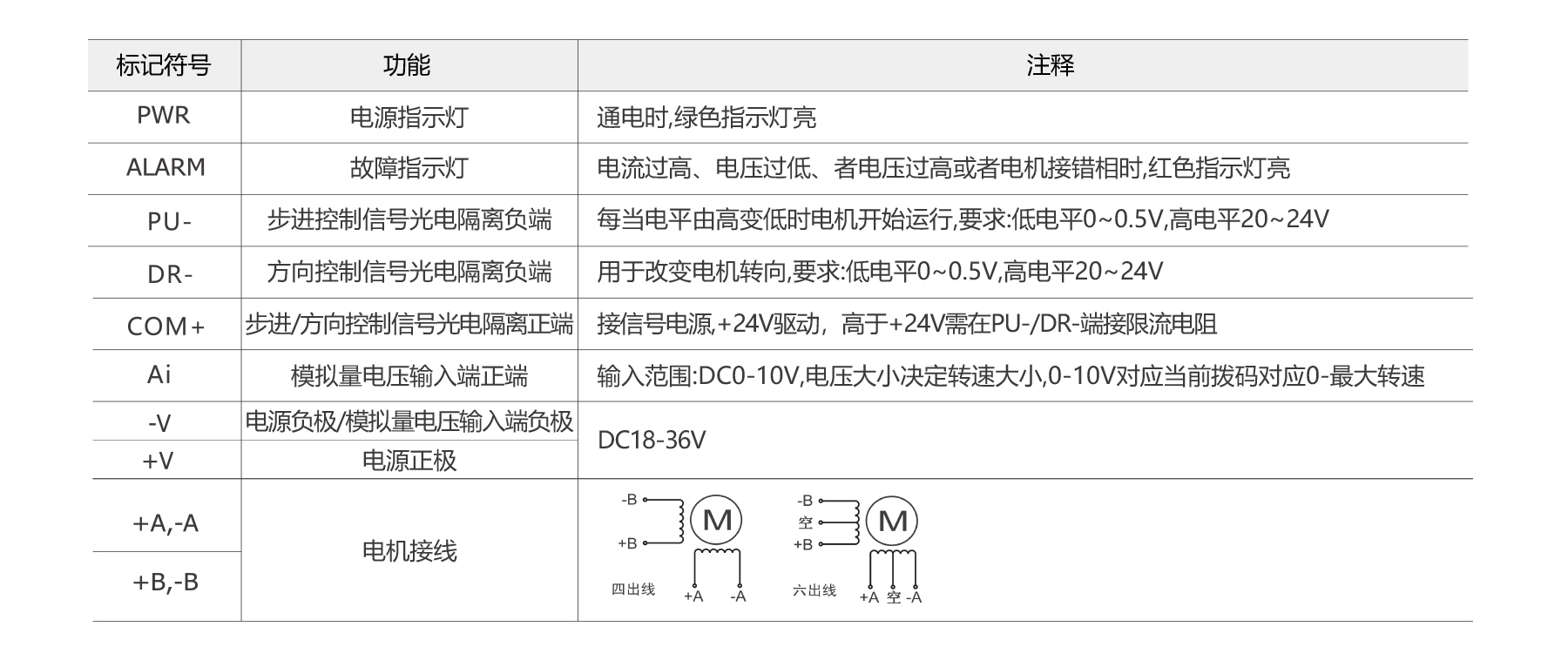

PSR2204A is a 2-phase open-loop spontaneous pulse driver with 32-bit DSP control, ensuring stable, low-vibration operation. It offers 4 constant-torque microstep settings (up to 32 microsteps), analog speed regulation, smooth current control, and opto-isolated inputs. Drive current adjustable below 2.3 A; voltage DC18–36 V. Size: 86×55×21 mm, weight 0.12 kg.
Datasheet
