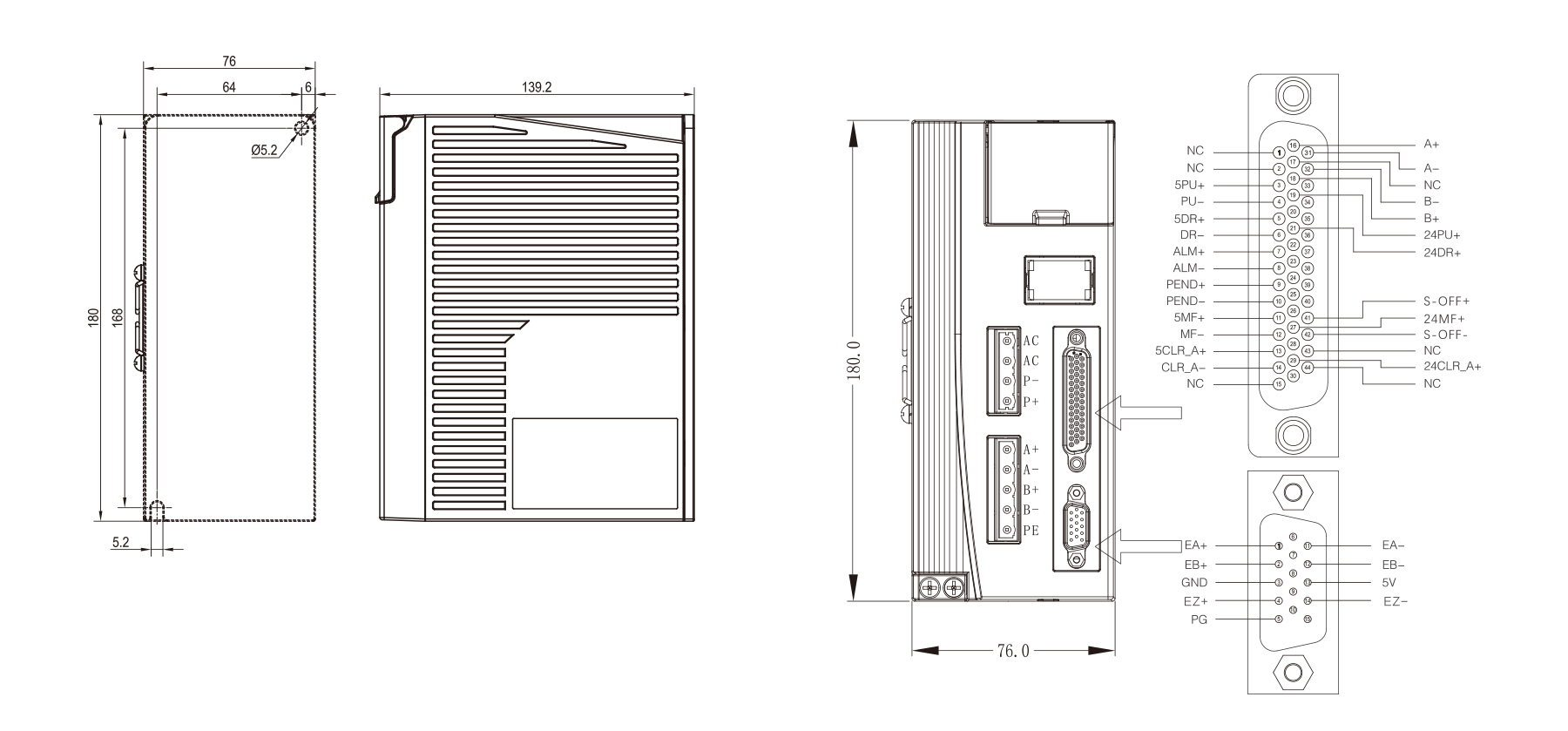

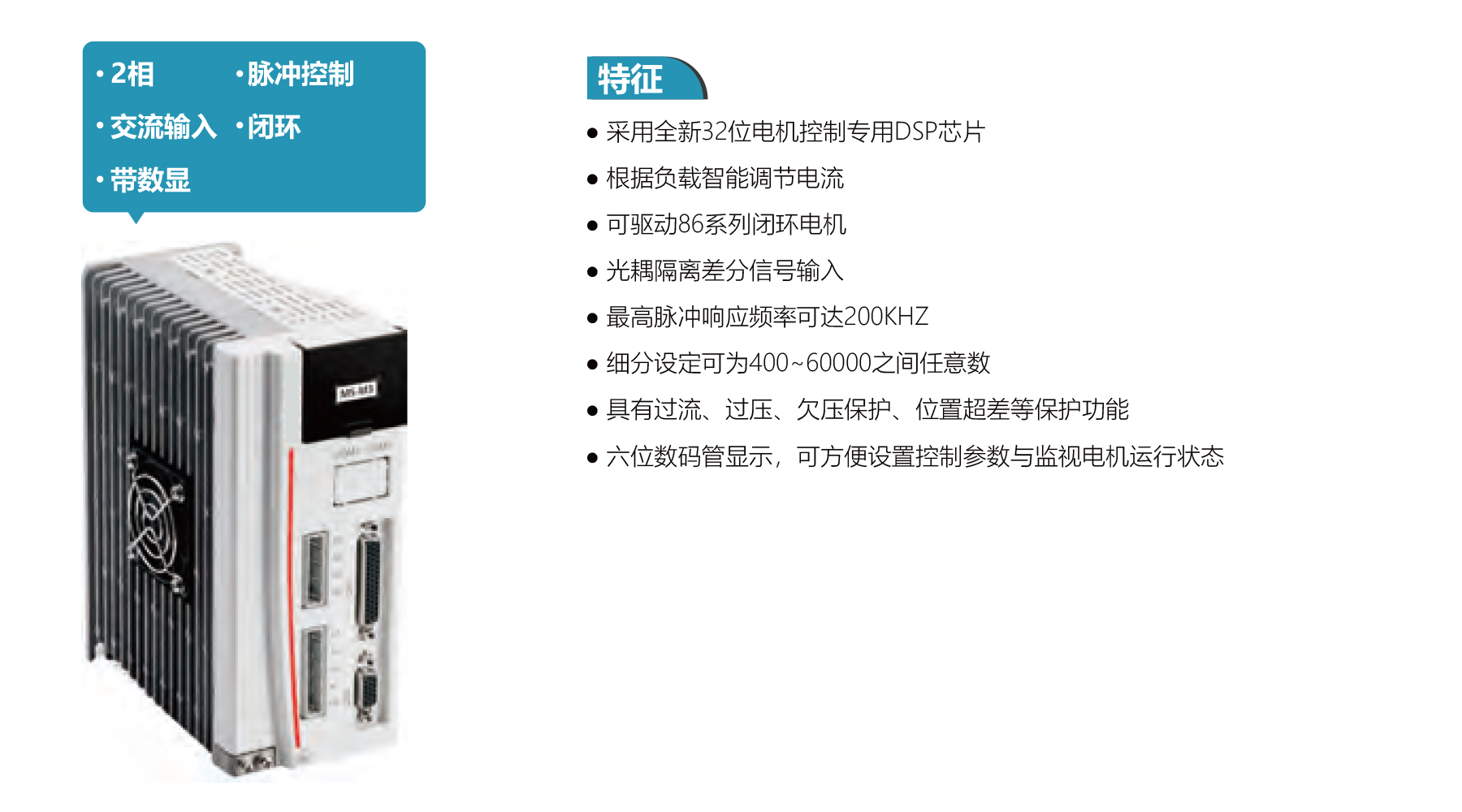

PHS2611PH is a 2-phase closed-loop pulse control driver with a dedicated 32-bit DSP motor control chip and six-digit digital display. It supports AC input, advanced lead-angle and vector control, intelligent current adjustment, and optocoupler-isolated differential inputs. Microsteps are adjustable from 400–60,000, with a max pulse response of 200 kHz. Protection includes over-current, overvoltage, and undervoltage. Compact: 180×139.2×76 mm, suitable for 86-130 mm (NEMA34-51) closed-loop stepper motors.
